5a.
5b.
5c.
5d.

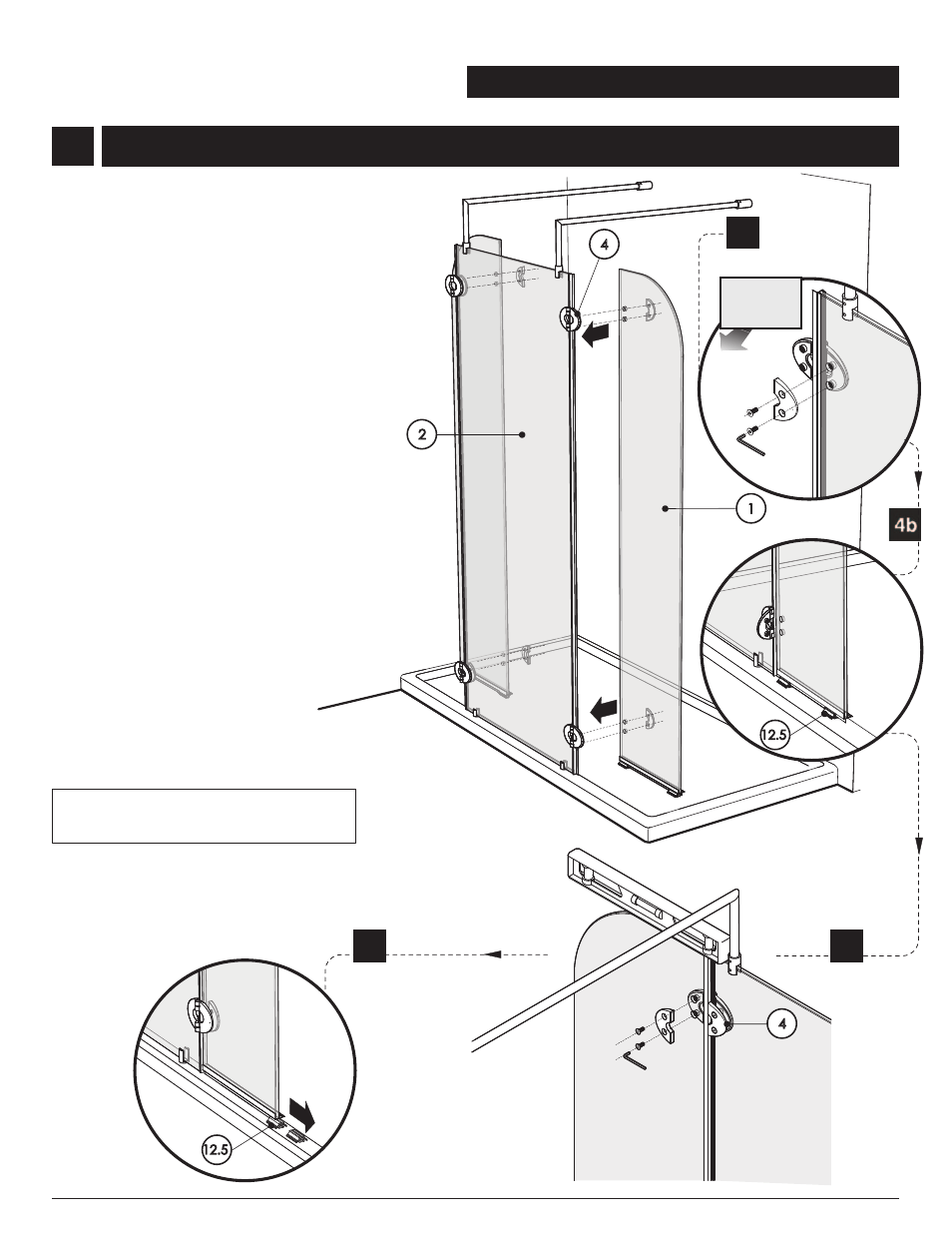

Fasten one side of the hinges (4) onto the
fixed panel (2). Do not tighten all the way
for this step to allow other door (1)
adjustments.
Place the door panel (1) vertically next to
the fixed panel (2). The holes for the
hinges should be aligned.
Fasten the hinge on the door (1).The door
panel must be leveled before tightening the
hinges completely .
Remove the spacing blocks (12.5).
4c
12.5
4
15
4d
4
12.5
34
HINGES INSTALLATION
4a
1
2
For model 6305.
Go to page 19 to finish installation.
INSTRUCTION MANUAL
INTERIOR
SHOWER SIDE
501X, 502X, 511X, 512X, 521X, 522X, 521TBX, 522TBX
