3a
2
12.5
6
1
7
1
7
12.5
14
3

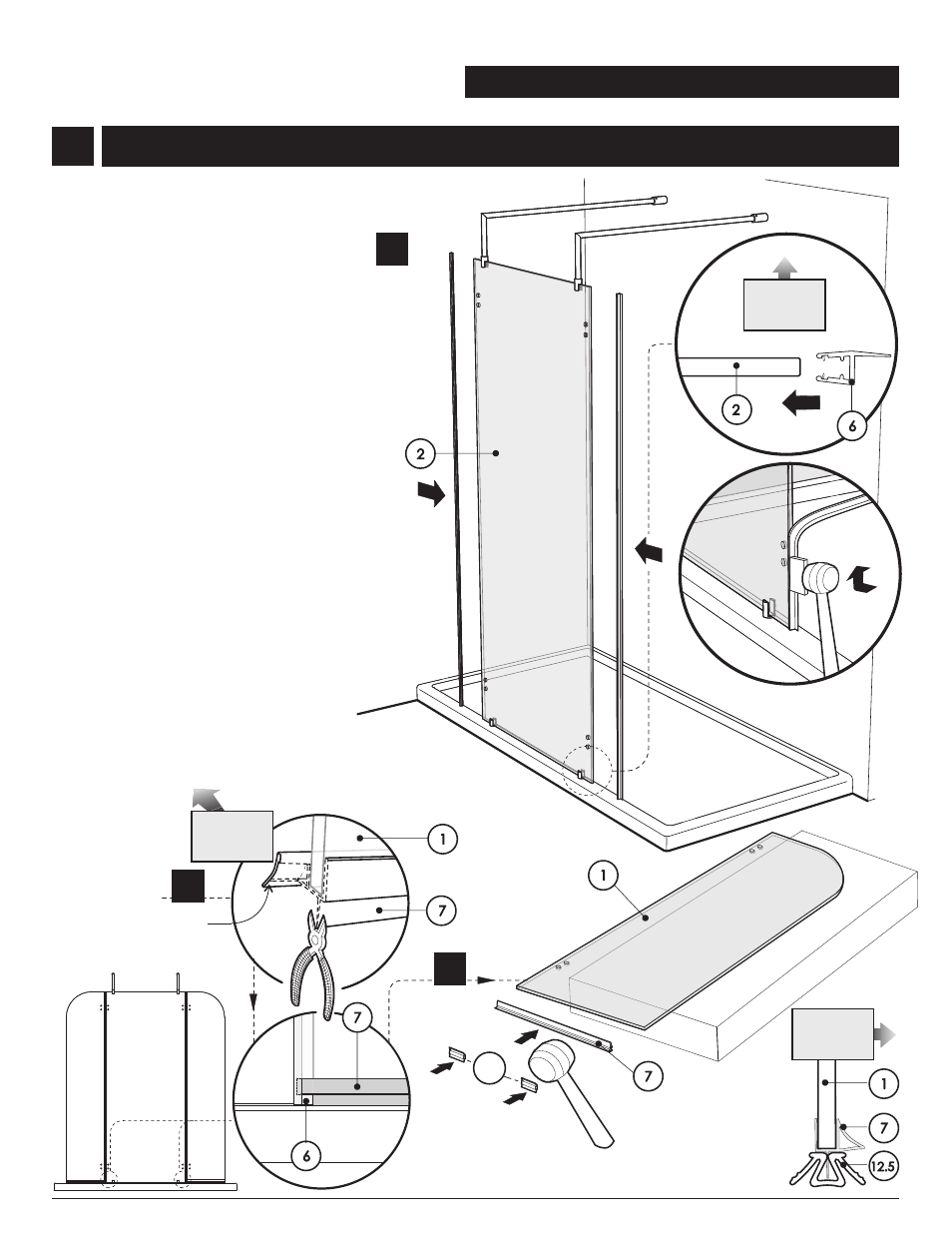

GASKETS INSTALLATION
6
2
3a.
3b.
3c.
Align the fixed panel side gasket to the
glass panel edge. Insert it with a 2” x 6” x
1/2” block and a mallet. Trim the excess
using the cutting plier.
Cut the bottom door gasket (7) as
illustrated. The lip should be about 3/4”
longer than the rest .
Rest the door panel (1) on a fat surface.
With the mallet, insert the bottom door
gasket (7) at the bottom of the door. Make
sure the lip faces the shower side. Install
the 2 spacing blocks (11.5) onto the bottom
lip of the gasket (7).
Lip
7
1
3b
3c
7
INSTRUCTION MANUAL
INTERIOR
SHOWER SIDE
INTERIOR
SHOWER SIDE
INTERIOR
SHOWER SIDE
501X, 502X, 511X, 512X, 521X, 522X, 521TBX, 522TBX
