Determine hinges location – Alumax M-92X User Manual
Page 6
6
INSTRUCTION MANUAL

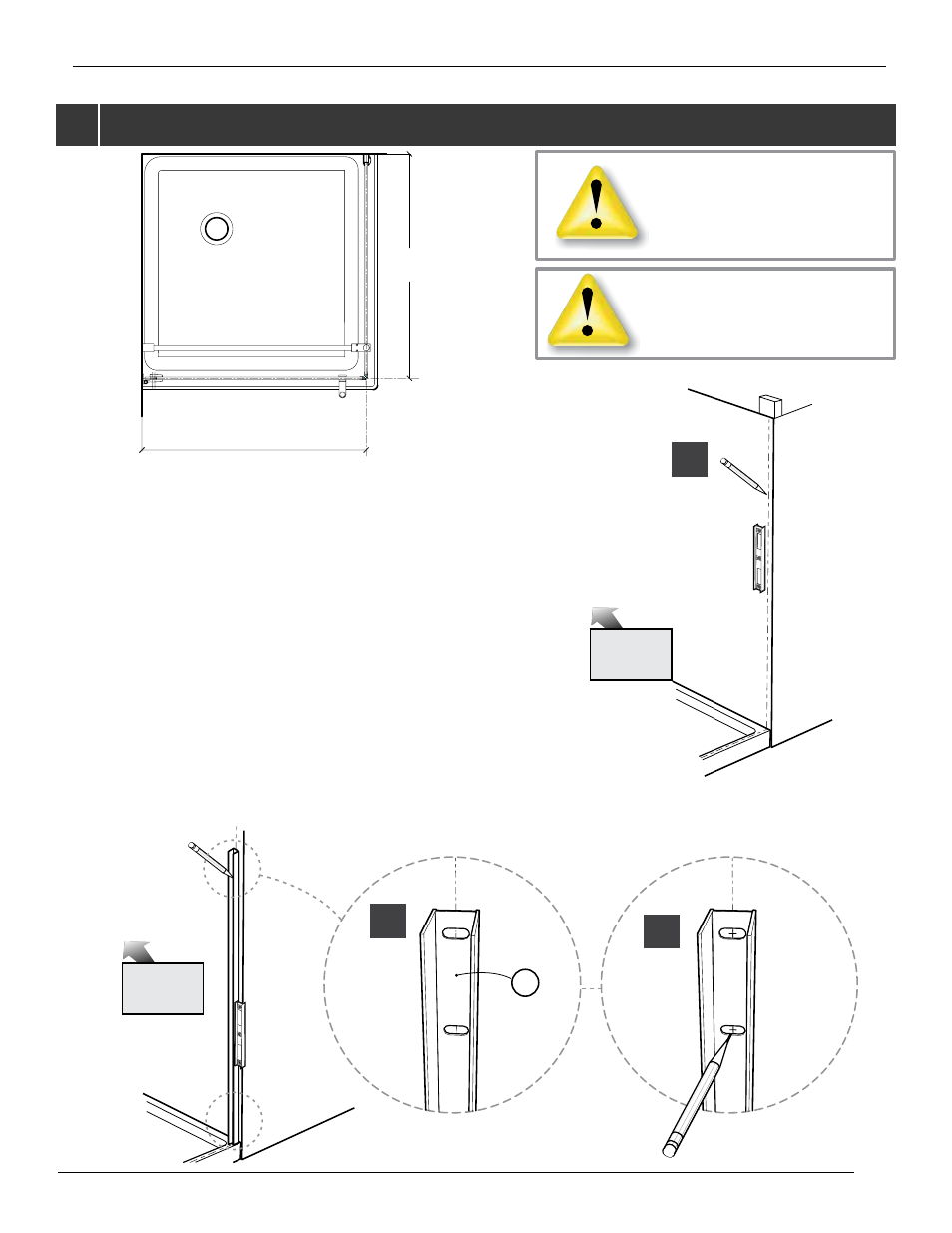

DETERMINE HINGES LOCATION.
1
1A.
Determine on which side the hinges will be mounted. It is
recommended to install the hinges on the same side as the
showerhead.
1B. Trace a centerline on the threshold and run it up along the wall.
1C.
Place the wall jamb (#2) on the threshold by centering the slotted
holes with the centerline.
1D. Mark the drilling locations at the top and bottom of the wall jamb.
Drill a hole at each location with a 1/4” drill bit.
RIGHT CONFIGURATION SHOWN
INTERIOR
SHOWER SIDE
INTERIOR
SHOWER SIDE
1B
1C
2
1D
USE THE WALL JAMB (#2) AS TEMPLATE
TO MARK DRILLING LOCATIONS FOR
WALL-MOUNTED HINGES.
WALL-MOUNTED HINGES MUST BE SUPPORTED
AND FASTENED INTO A STUD FRAMING.
Min 33 7/16˝(85cm)
Max 33 13/16˝(86cm)
Min 33 7/16˝(85cm)
Max 33 7/8˝ (86cm)
