Install the door gaskets – Alumax M-92X User Manual
Page 15
14
INSTRUCTION MANUAL

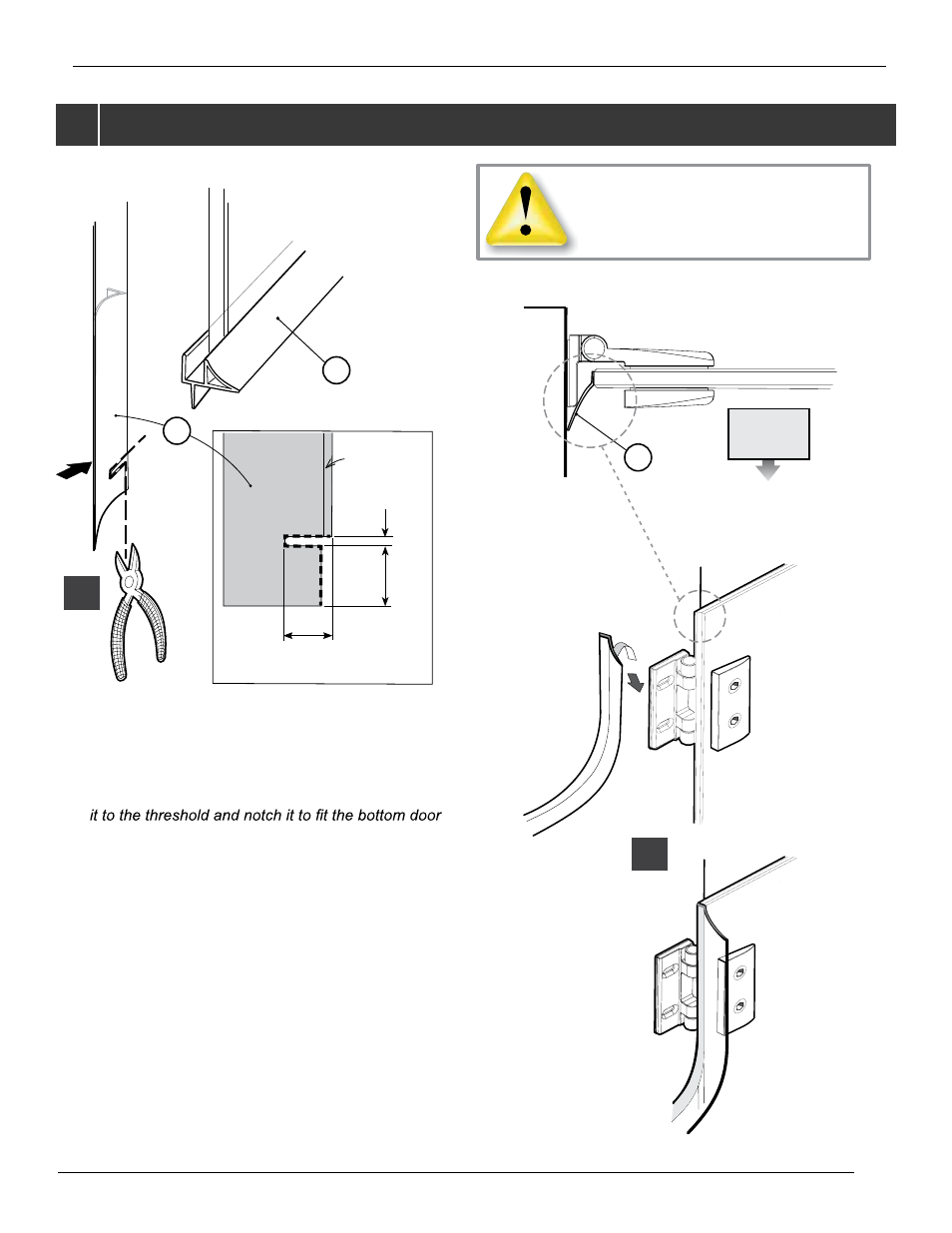

INSTALL THE DOOR GASKETS
(CONTINUED).
12
PRIOR TO APPLY SIDE GASKET MAKE SURE
THAT GLASS PANEL EDGE IS CLEAN
12C.
Open the door and clean the door panel surface on
which the door side gasket (#7) will be placed. Align
gasket. Make sure it is oriented as illustrated.
INTERIOR
SHOWER SIDE
12C
12D. Stick the door side gasket on the door panel.
± 1/8"
RIGID PART
SUGGESTED TRIMMING
± 5/8"
± 1/2"
11
7
12D
7
