4 CONTINUED
3H

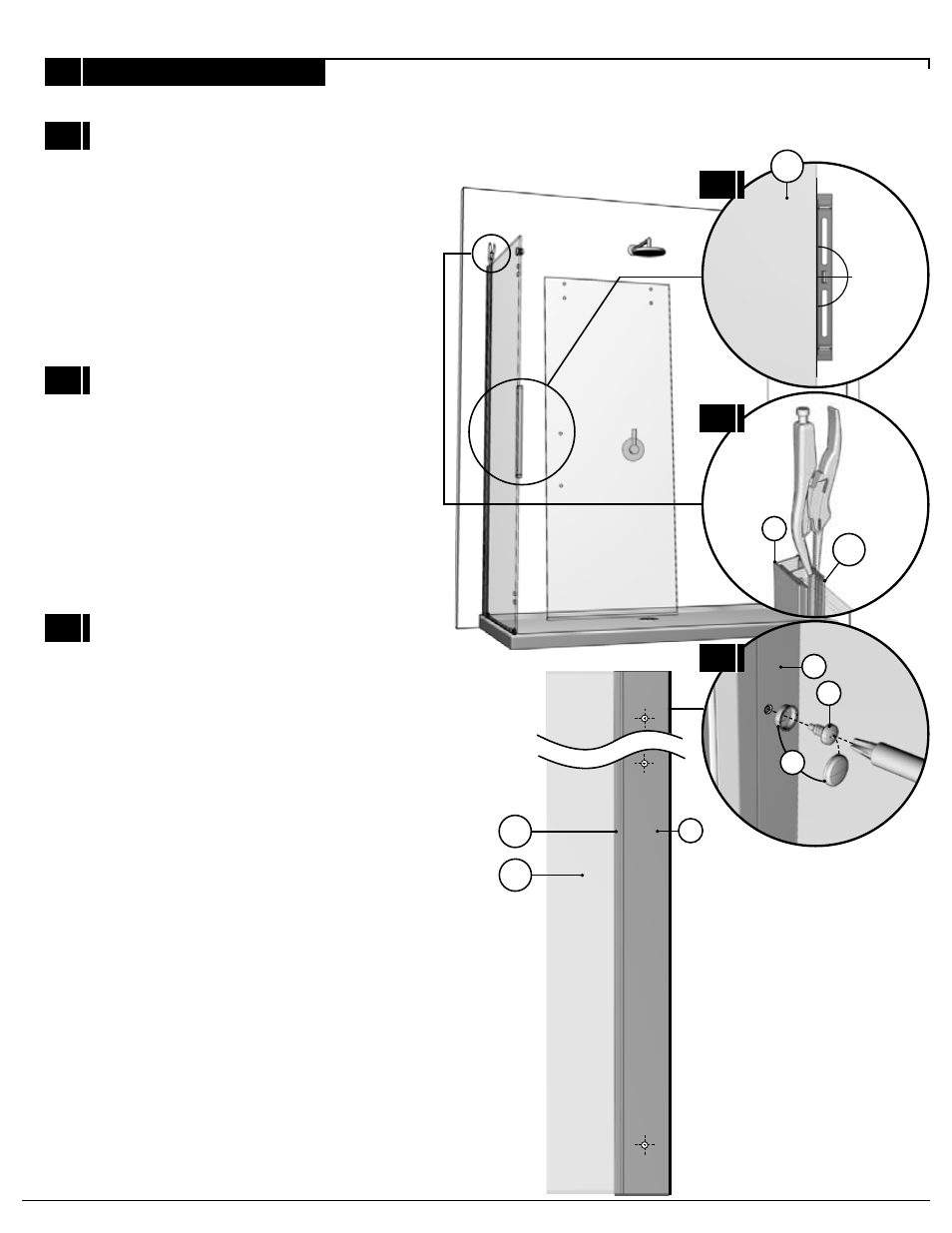

Once the return panel (16c) has been adjusted,
secure the expander (16a) to the wall jamb (15)
by way of a clamp so as to keep the return panel
level (16c).
Ensure that the return panel (16c) is vertical by way
of a level. If there need be a correction, adjust the
verticality of the expander (16a) in relation to the
wall jamb (15).
3I
By way of #8- 3/8 screws (26), as well as screw
caps (27), permanently secure the wall jamb (15)
to the expander (16a).
3J
15 16a
16c
3H
3I
3J
15
27
26
15
16a
16c
