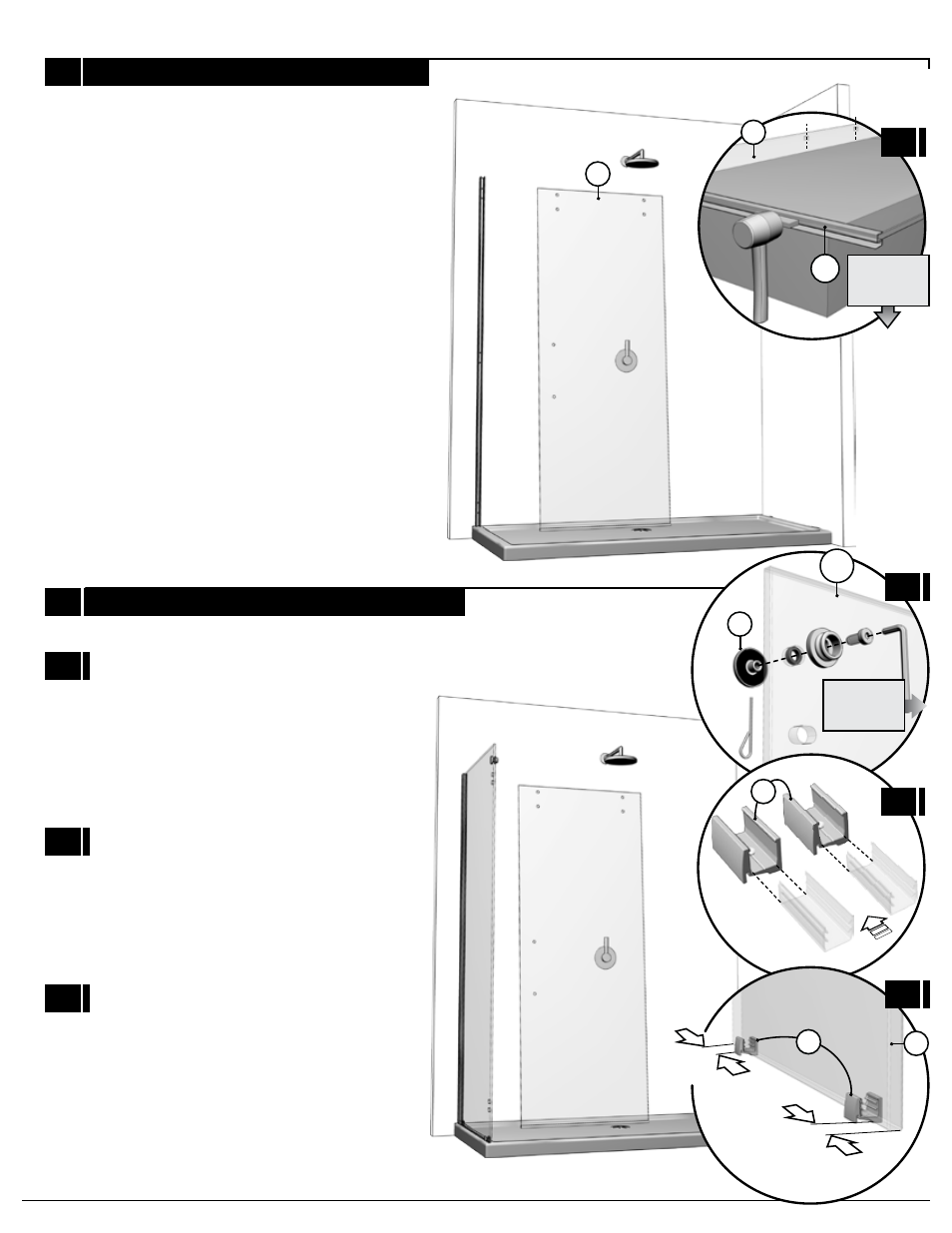

2 DOOR PANEL
Using the cardboard packaging box as platform,
install bottom door gasket (13) onto door panel
(15) using a block and a mallet. Notice the gasket
orientation.
3A
Insert gaskets into the glass clips for bottom
fixed panel (6).
o t ) 4 1 ( t e k c a r b t n u o m s s a l g l e n a p n r u t e r e h t l l a t s n I
the return panel (16c) as shown.
3B
Position the glass clips for bottom of fixed pan-
el to the return panel (16c). Note the distances
illustrated.
3C
13
2A
INTERIOR
SHOWER SIDE
3 RETURN PANEL
3A
INTERIOR
SHOWER SIDE
15
15
15
16c
15
3B
6
1 1/2˝
(38mm)
1 1/2˝
(38mm)
6 15
3C
