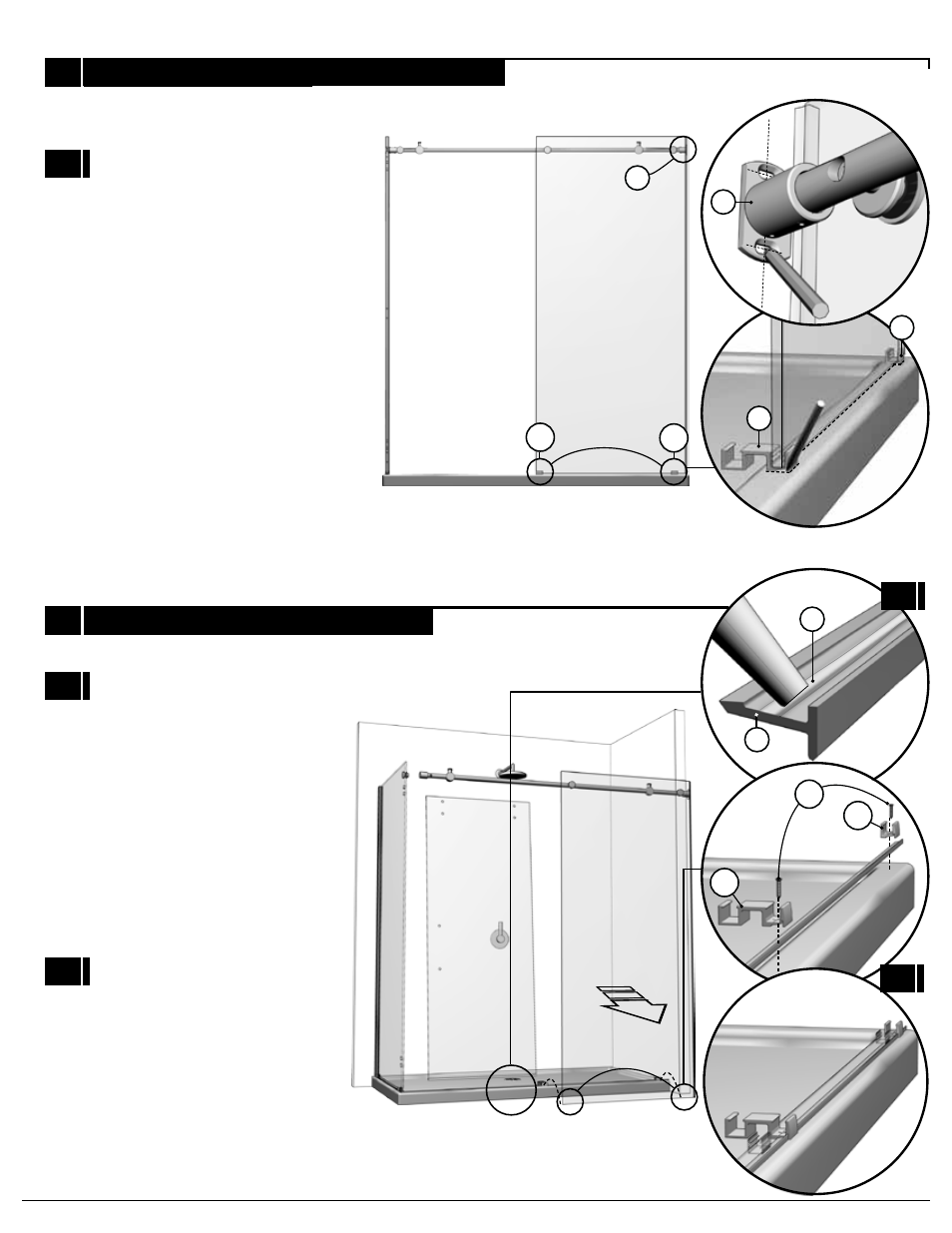

Mark the screw locations for the wall brack-
ets (2) on the walls on both sides of shower
as well as the placement the glass clip (14)
and bottom center guide (15).
THRESHOLD
9A
9A
9B
3
9 WIDE FIXED PANEL
15
7 6
Remove the wide fixed panel assem-
bly (7) so as to allow placement of the
threshold (13) onto the base. Ensure
that a bead of silicone (S) is applied to
the underside of the threshold before
installing.
Secure glass clip (14) and bottom
center guide (15) with self drilling screws
(17) and insert gaskets (16).
