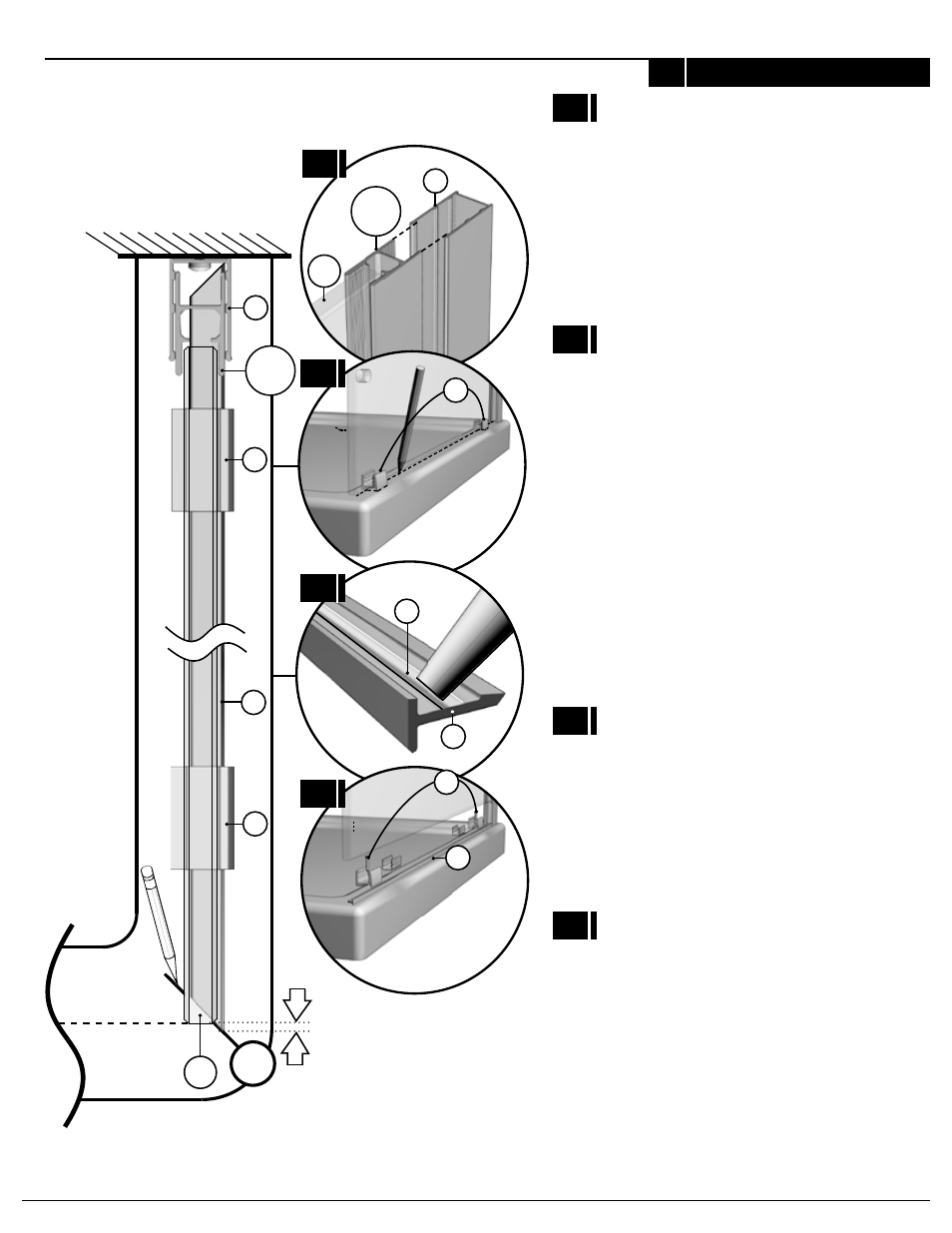

3 CONTINUED
3D
Mark the glass clips for bottom of fixed panel (6)
locations on the base, ensuring that the leading
edge of the return panel is tangent to the center
of threshold of the base. Draw a line marking the
position of return panel threshold (10) in relation to
the return panel based on dimension B. Proceed
to removing the return panel assembly (16a.b.c) as
well as the glass clips (6).
Slide the return panel assembly (16a.b.c) into the
wall jamb (15) so as to allow the return panel (16b),
along with the clips for bottom of fixed panel (6), to
rest on the threshold of the base.
3E
Apply a bead of silicone to the underside of the re-
turn panel threshold before proceeding to the next
step.
3F
3G
Secure glass clips for bottom of fixed panel on the
base, against the threshold (10) at the markings
established in step 3E. Secure these with #6-1
self-drilling screws (21) before repositioning the
gaskets. Reposition the return panel assembly
(16a.b.c) as established in step 3D.
