11

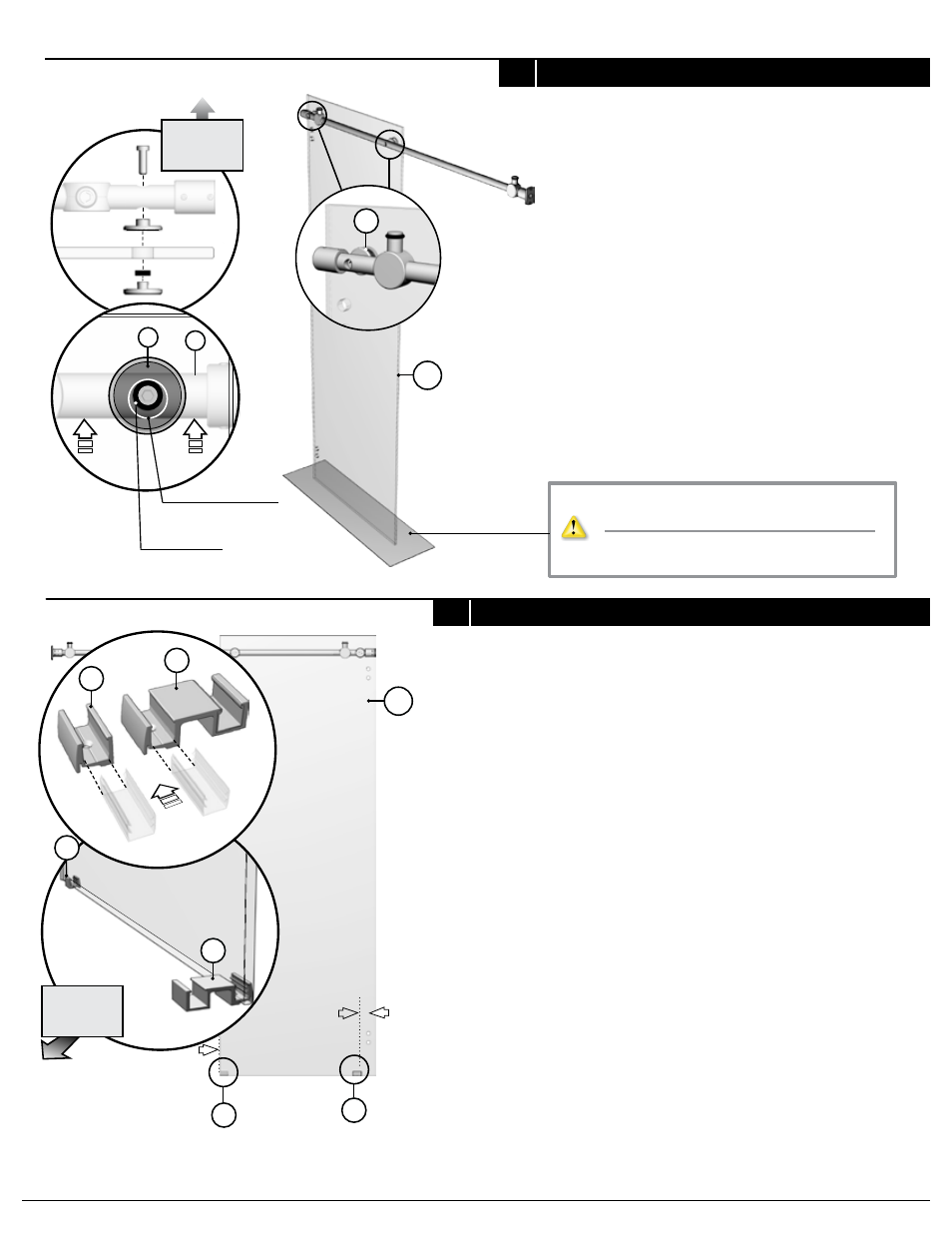

5 BOTTOM GLASS CLIPS
/ FIXED PANEL 1 GLASS HOLDERS 5
Fasten the running rail (1) to the fixed panel (18)
with the glass holders (5). Secure them
temporarily in place.
Ensure that the running rail (1) is at the highest
possible position in reference to the holes of the
fixed panel (18).
1 1/2”
(38 mm)
FLUSH WITH
GLASS
Place the glass panel onto a cushioned surface, such
as a towel or cardboard so as to prevent unwanted
damage.
18
7
6
5
6
7
INTERIOR
SHOWER SIDE
6
7
Insert gaskets in the bottom center guide (7) and
glass clip for bottom of fixed panel (6).
Position the glass clip for bottom of fixed panel (6)
and the bottom center guide (7) on the wide fixed
panel (18) at the illustrated positions.
18
5 1
GLASS HOLE
WASHER
INTERIOR
SHOWER SIDE
7
6
