STRAIGHT HANDLE
10

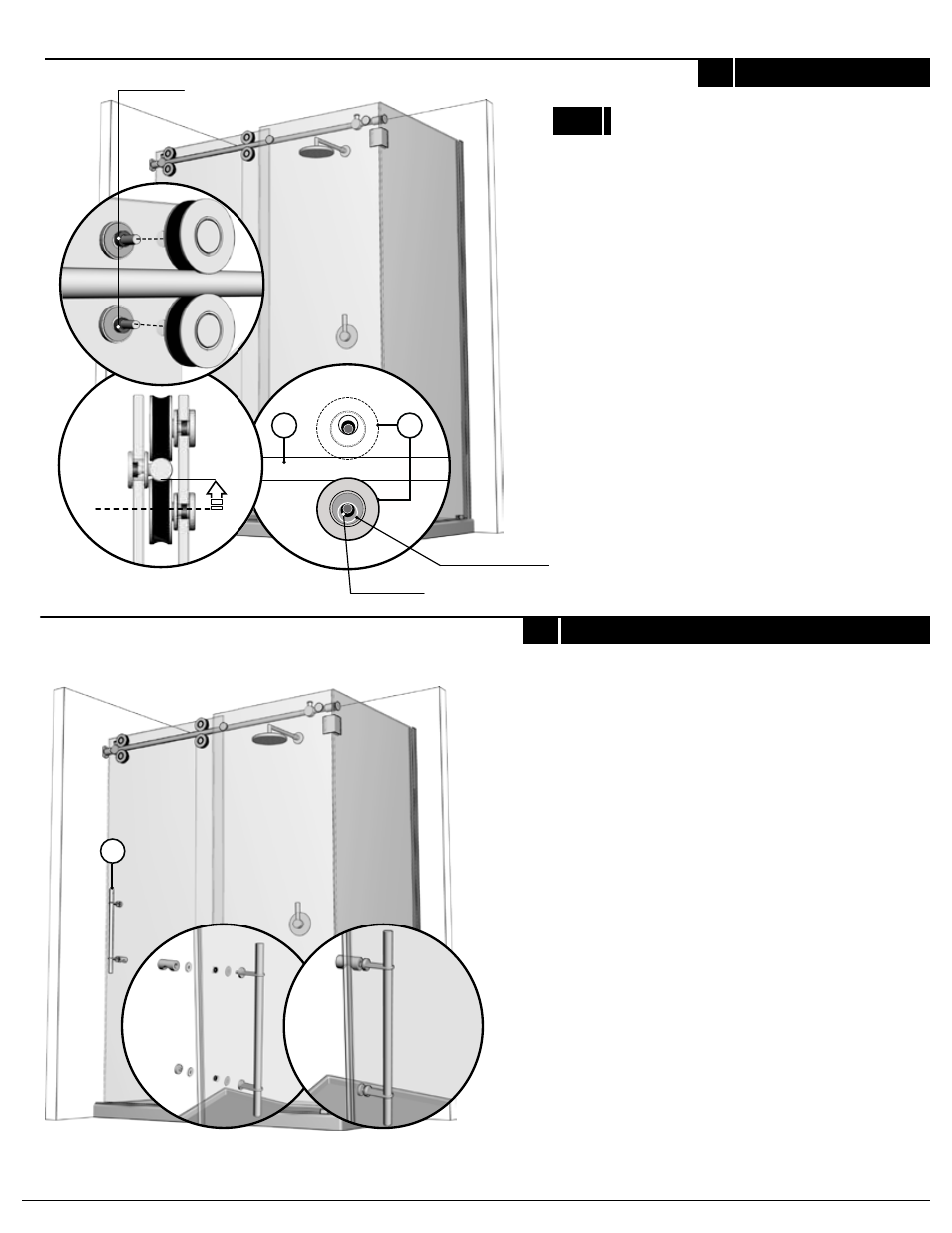

Install straight handle (8) onto door panel (17).
Ensure that clear washers on either side of
glass are installed.
CONTINUED
9
8
2
1
WASHER
GLASS HOLE
WASHER
Install second set of double rollers (2) to the
bottom holes of door panel (17), making sure
that they are tangent to the running rail (1) by
way of the excentric washers.
9C
