7

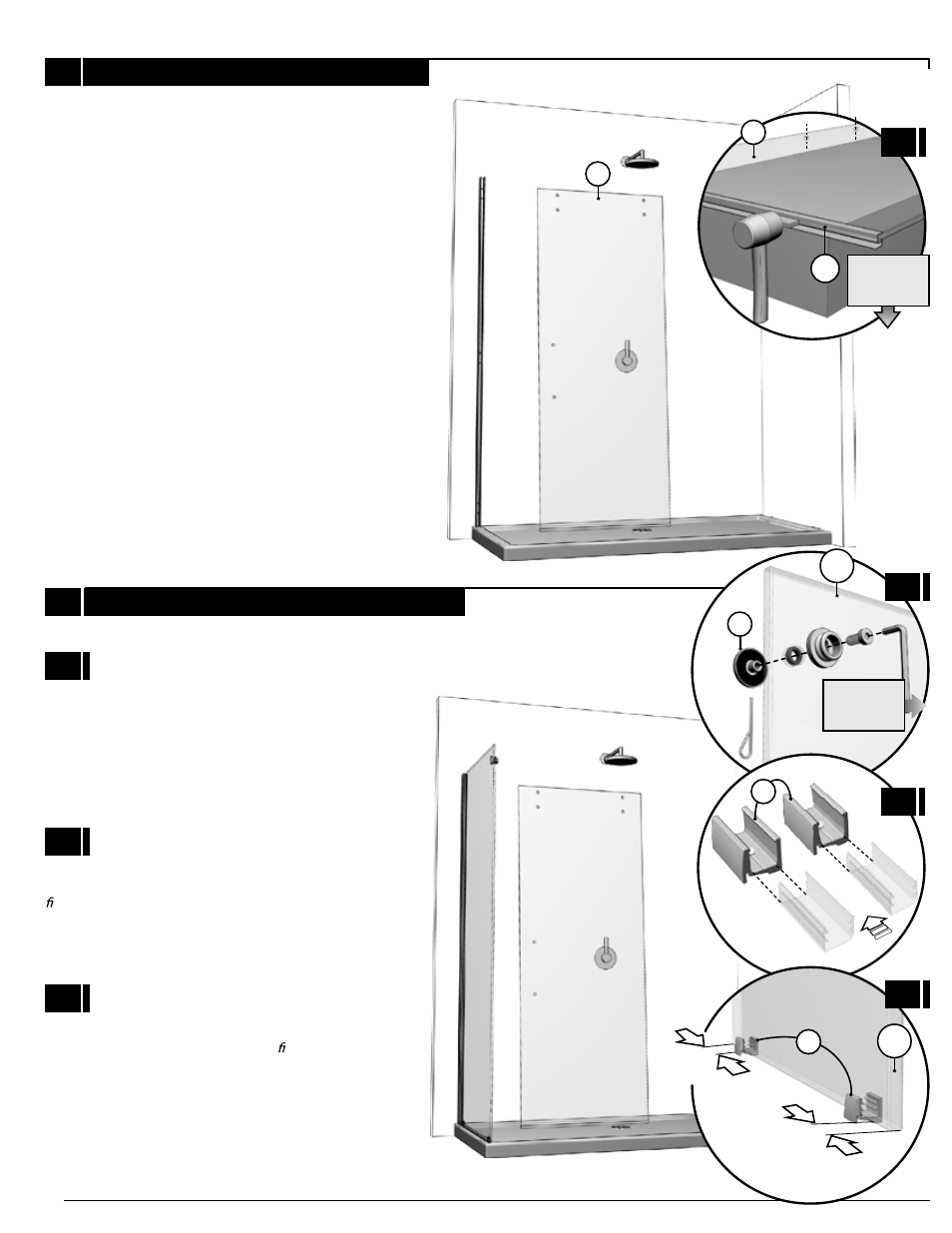

2 DOOR PANEL
Using the cardboard packaging box as platform,
install bottom door gasket (13) onto door panel
(17) using a block and a mallet. Notice the gasket
orientation.
3A
Insert gaskets into the glass clips for bottom
xed panel (6).
o t ) 4 1 ( t e k c a r b t n u o m s s a l g l e n a p n r u t e r e h t l l a t s n I
the return panel (16b) as shown.
3B
Position the glass clips for bottom of xed panel
(6) to the return panel (16b). Note the distances
illustrated.
3C
13
2A
INTERIOR
SHOWER SIDE
3 RETURN PANEL
3A
INTERIOR
SHOWER SIDE
17
17
14
16b
15
3B
6
3˝
(75mm)
1 1/2˝
(38mm)
6
3C
16b
