8b 8, Fixed panel – Alumax P-DR2W-48-60-CRP User Manual
Page 12
12
8B
8

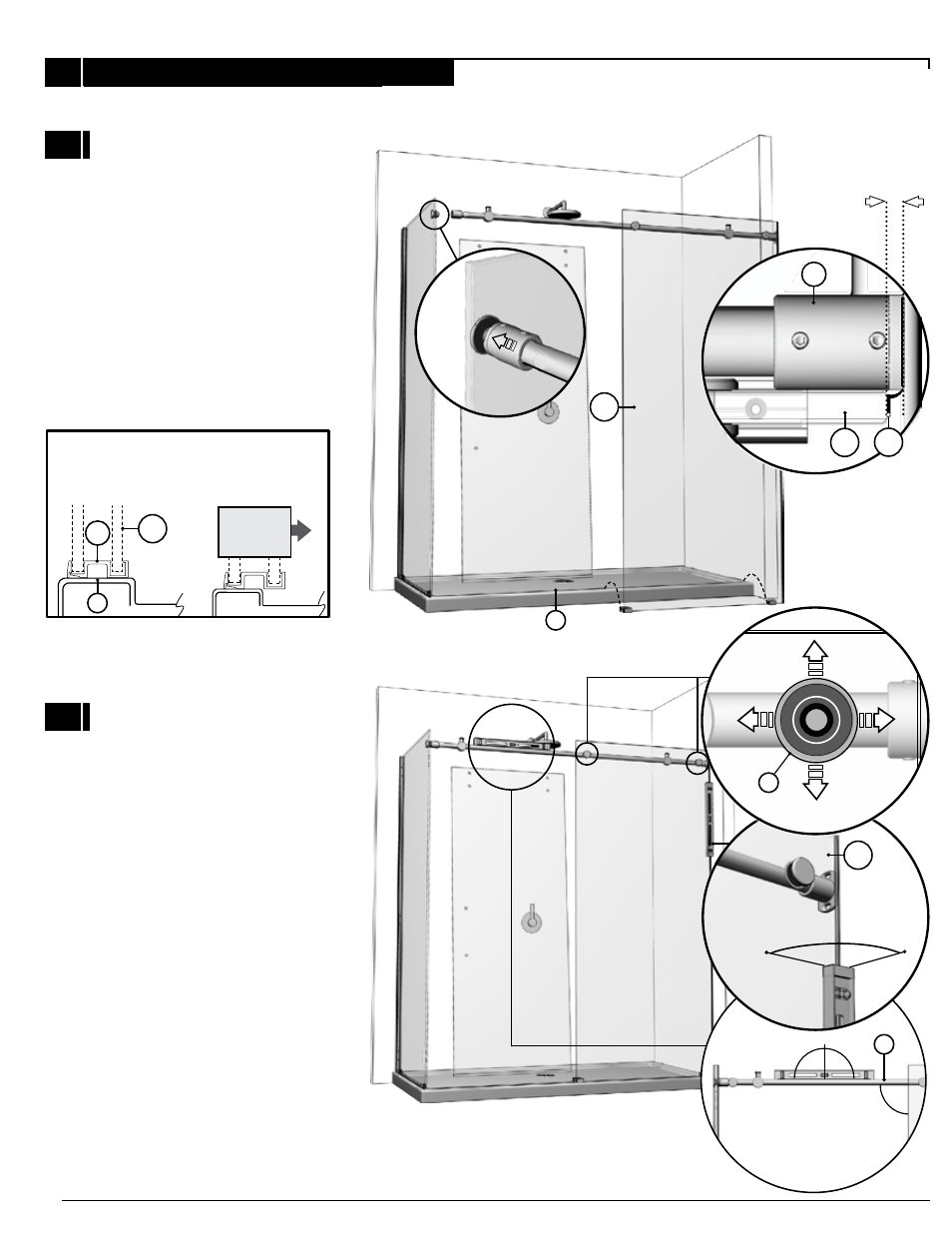

FIXED PANEL
Position the wide fixed panel assembly on
threshold of the base (B) as shown. Adjust
the wall bracket (3) as well as the return
panel glass mount bracket (14) so as to
ensure that the running rail (1) is secured.
Ensure that the fixed panel gasket (12)
collapses against the wall properly.
Ensure that the running rail (1) is level and
that the fixed panel (18) is square. If a
horizontal correction is required, adjust and
level the glass holders for fixed panel (5).
8A
18
B
The bottom guide (7) can hang off the threshold
(B) as long as it can be well-fastened.
INTERIOR
SHOWER SIDE
B
1
90
°
90°
5
1/2” max
(12.7mm)
12
18
3
18
7
18
