Alumax 733 - Manual (Page 3)

EPH-N00-06016
6-4-97
Page 3 of 8
A. 1 Curb
B. 1 Jamb Wiper Vinyl
C. 1 Pivot Jamb
D. 2 Pivot Brackets
E. 3 #6 x 3/8" Truss Head Screws
F. 2 #8 x 1/8" Allen Set Screws
G. 1 Allen Wrench (5/64")
H. 10 Plastic Wall Anchors
J. 3 #8 x 2" Truss Head Screws
K. 2 #10 x 7/16" Sq. Head Set Screws
L. 1 Glazed Door Panel
M. 2 Nylon Pivot Bushings
N. 1 Strike Jamb (Magnetic)
P. 3 #8 x 1 1/2" Flat Head Screws
R. 1 Interior Door Handle
S. 1 Exterior Door Handle
T. 2 #6 x 1 1/4" Round Head Screws
U. 1 ALUMAX Decal
V. 1 Drip Rail
W. 1 Tapered Drip Vinyl
X. 1 Drip Plug
Y. 1 Roll of Double Stick Tape
Z. 2 #10 x 3/8" Flat Head Screws
AA. 2 Curb Anchors
BB. 1 Jamb Fill
CC. 4 #8 x 1 1/2" Truss Head Screws

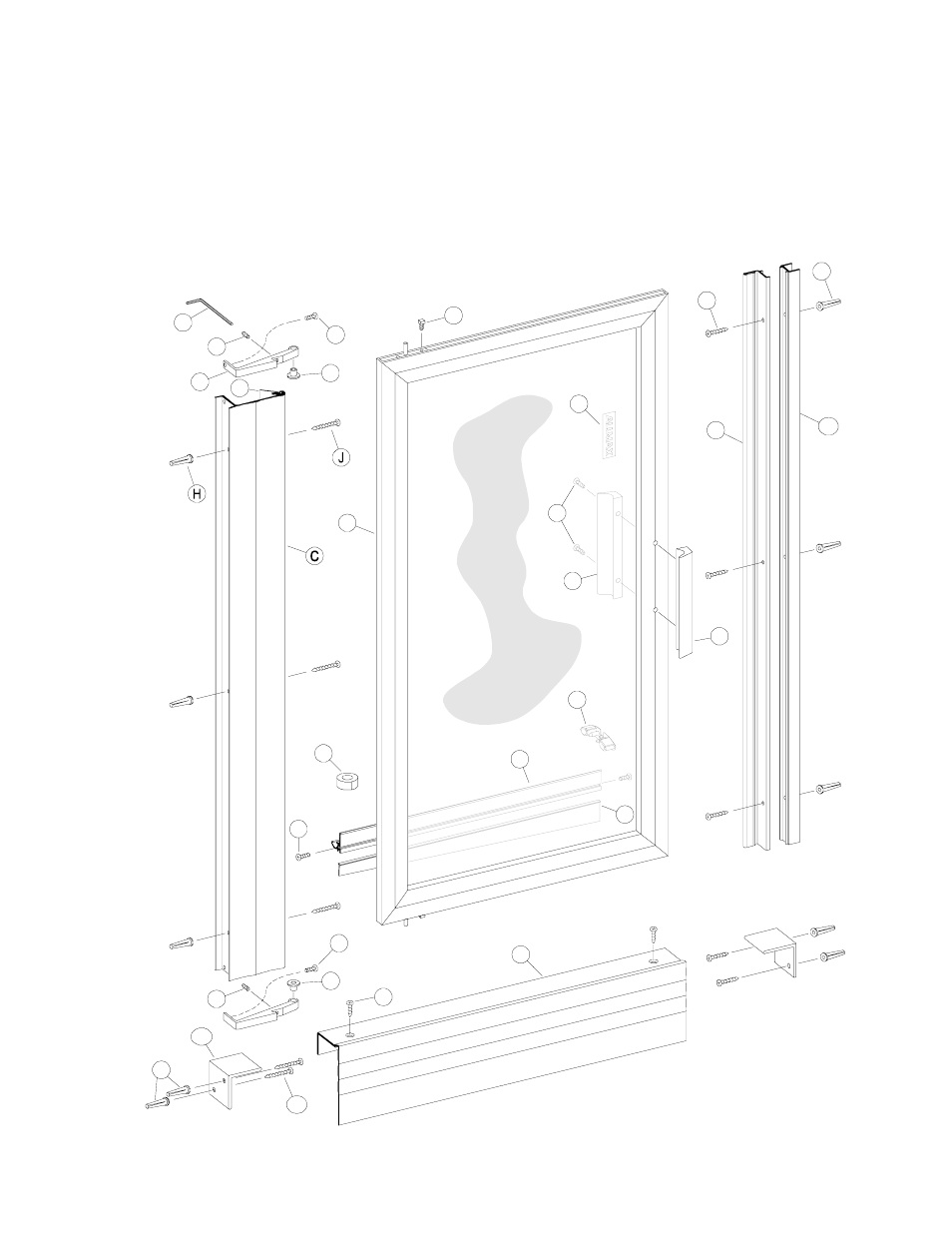

733 PARTS LIST
