Unroll the double-stick tape [B] and carefully press
the sticky side onto the flat surfaces on the bottom of the
curb [A]. Remove the protective covering from the tape
and very carefully replace the curb on the shower sill in
the exact position marked in Step #2.
OPTION: Place a bead of caulk on both flat surfaces on
the bottom of the curb. Then replace the curb on the
shower sill between the pencil marks and press firmly
into place.
1
NOTE: The 338 unit may be installed without using
the sloped curb [A] provided. Its use is definitely recom-
mended for positive water control on shower sills with
little or no slope.
Measure the wall-to-wall opening at the shower sill and
cut the curb to the exact length. File the ends of curb as
necessary to fit the corner contours of the enclosure.
Place the curb on the shower sill with the raised portion
to the exterior of the enclosure. Make sure the curb is
centered on the sill and lightly mark its position on the sill
with a pencil. Remove the curb from the sill.
The A
LUMAX
338 Frameless Pivot Shower Door is
completely reversible and may be installed pivot-right or

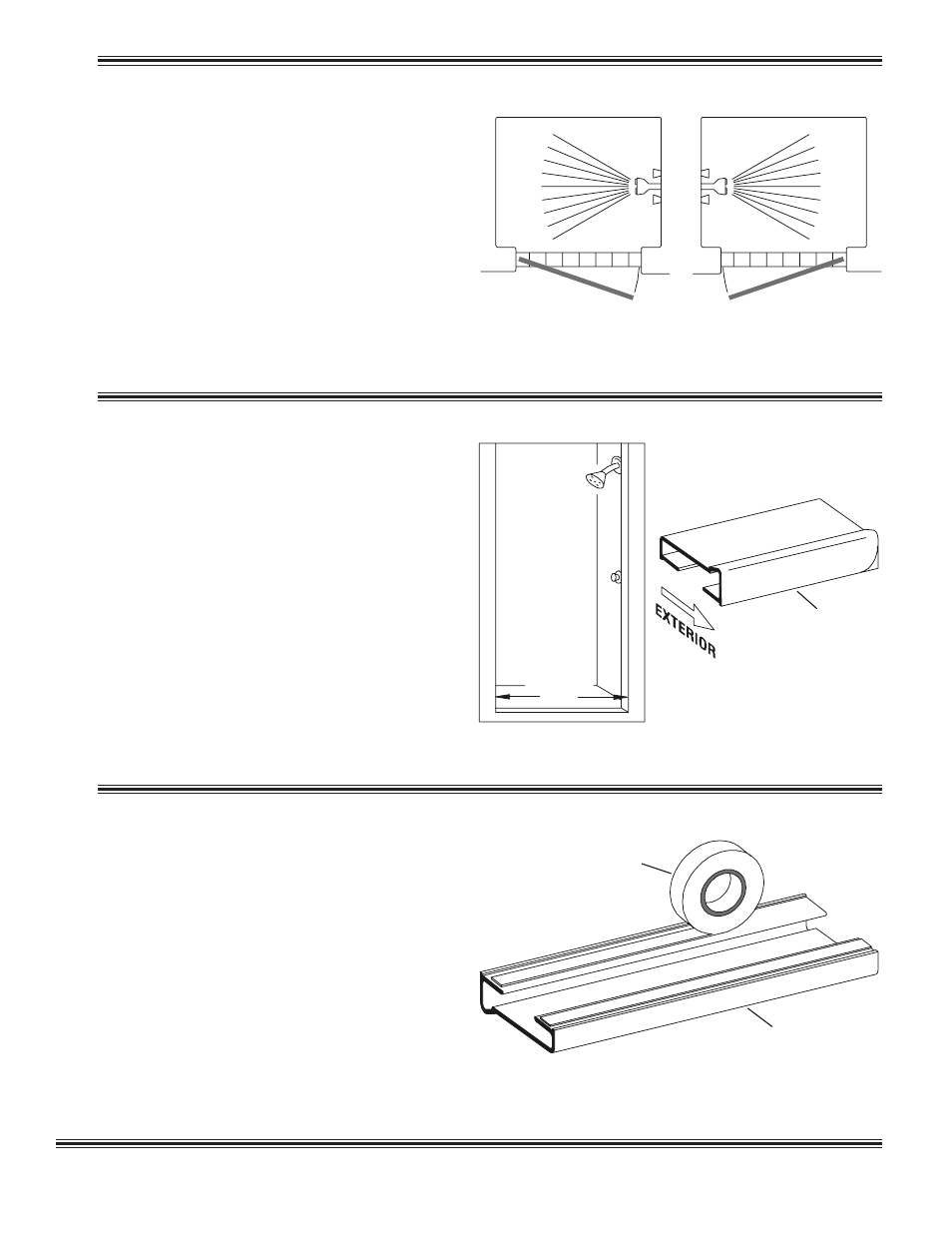

pivot-left. Refer to the illustration to determine the
correct position for your installation. For maximum
waterproofing, the pivot jamb should always be opposite
the shower head. These instructions depict a pivot-left
installation.
CAUTION: For safety, the door must always open
outward.
2
3
PIVOT
LEFT
PIVOT
RIGHT
MEASURE
SHOWER
SILL
CURB
DOUBLE-STICK
TAPE
CURB
