EPH-N00-06007
10-21-04
Page 3 of 8
NOTE:

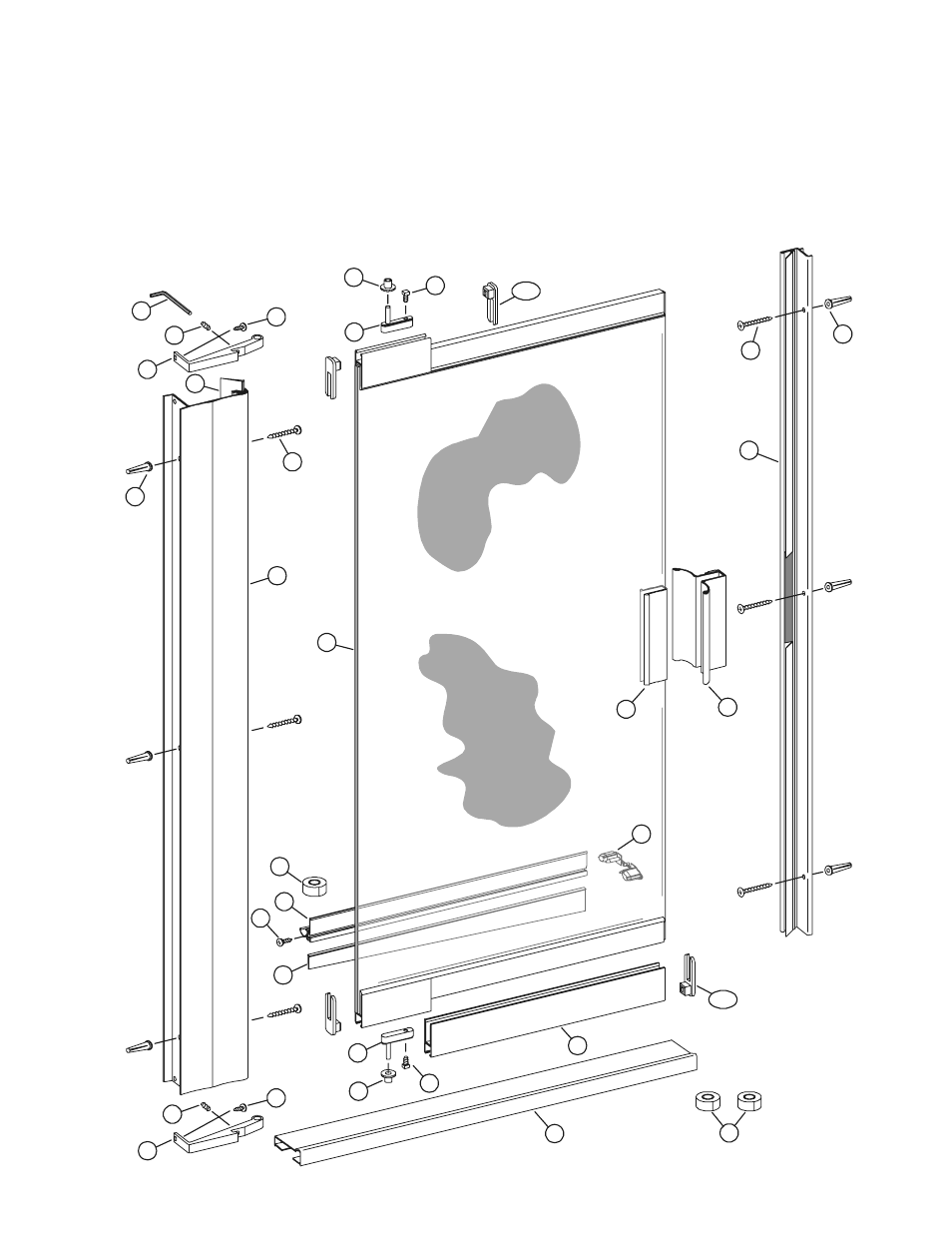

This exploded view is typical for a glazed
unit with obscure or Deco glass. A glazed
door panel with clear glass will ship with a 1-
piece bottom rail already installed.
• Set screws may be pre-installed in pivot
blocks.
338 PARTS LIST
A . 1 Curb J. 6 Plastic Wall Anchors T. 3 #8 x 1 1/2" Flat Head Screws
B. 3 Rolls of Tape (double-stick) K. 3 #8 x 2" Truss Head Screws U. 1 Door Handle (w/Magnet)
C. 1 Pivot Jamb Seal Vinyl L. 1 Glazed Door Panel V . 1 Door Handle Vinyl (4")
D. 1 Pivot Jamb M. 1 Bottom Rail (See Note) W. 1 Drip Rail
E. 2 Pivot Brackets N. 2 #10 x 7/16" Set Screws X. 1 Tapered Drip Vinyl
F. 3 #6 x 3/8" Truss Head Screws P. 2 Pivot Blocks Y . 2 Drip Plugs
G. 2 #8 x 1/8" Socket Set Screws R. 2 Nylon Pivot Bushings AA. 4 Rail End Caps
H. 1 Allen Wrench (5/64") S. 1 Strike Jamb (w/Magnet)
D
K
J
J
T
L
A
M
N
N
B
B
W
F
X
R
R
F
F
G
G
P
P
E
E
C
H
V U
Y
AA
AA
S
