ZOOM

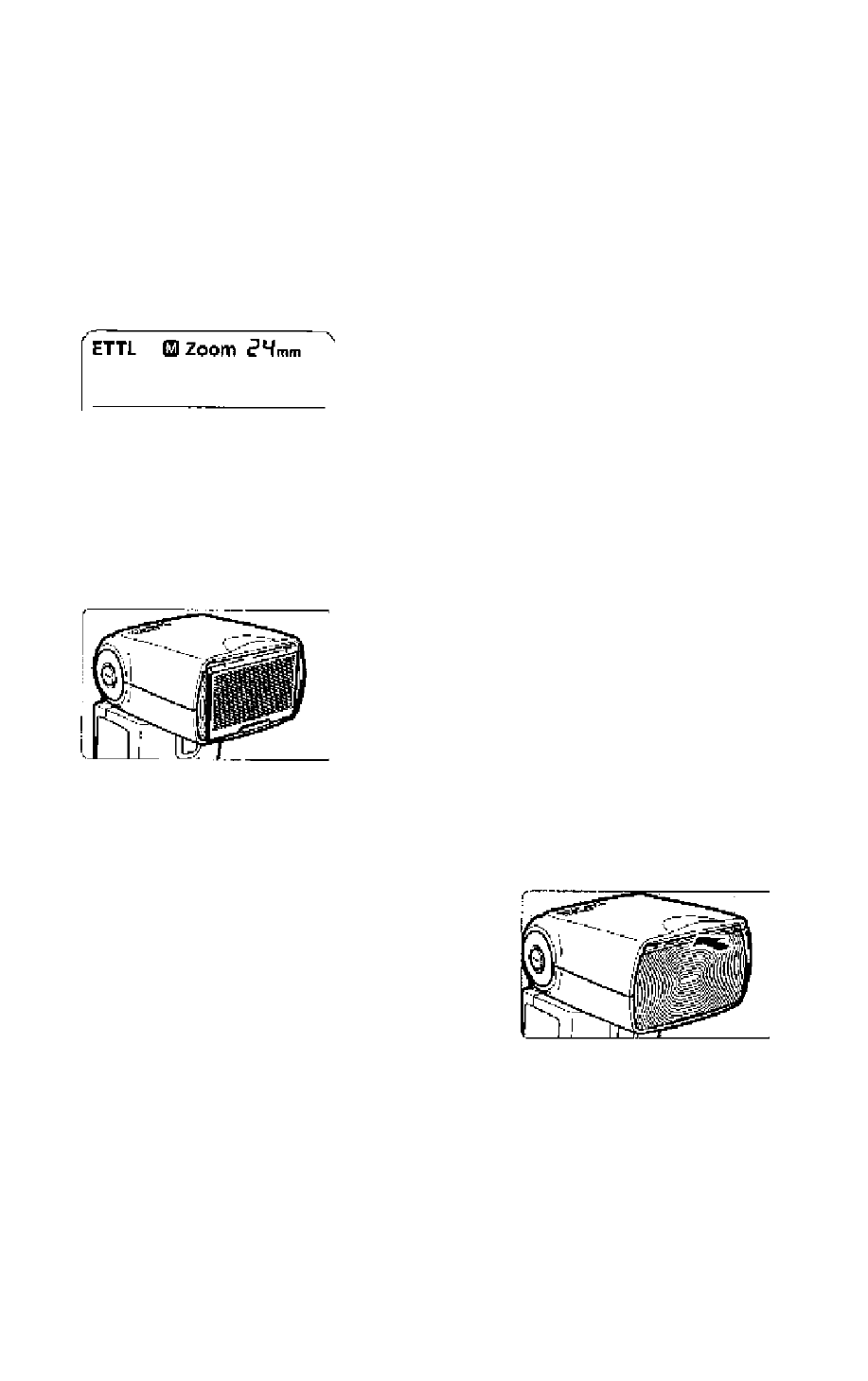

Setting the Flash Coverage and Using the Wide Pane! ■
The flash coverage can be set to match the lens focal length from 24mm to
105mm. The flash coverage car be set automatically or manually. Also,
with the built-in wide panel, the flash coverage can be expanded to 14mm
wide-angle lenses.
Press the
• Turn the •<:©> dial to change the flash
coverage.
• When the flash coverage is set
automatically, cE)> is not displayed.
ЕЙ Ityou set the flash coverage manually, make sure it cwveiB the lens focal length so that
the picture will not have a dark periphery.
O.S a? 1 IS j Э 4 6 9 13 19 r
Using the Wide Panel
M
Pull out the wide panel and place it over the
flash head as shown. The flash coverage
will then be extended to 14mm,
• The catchlight panel will come out at the
same time. Push the catchlight panel back
in.
• The • > button will not work. • If you use bounce flash with the.wWe panel in place, the entire display on the LCD panel wiif blink aa a warning. Sines the subjerx will he illuminated by both the bounce ■ Pull out the wide panel gently. Using exoesalve force may detach the wide panel. •rZOOM f*^> button will not work. The zoom feature will work again when you press ihu spot S 20 The flash coverage will not be compatible with the EF15nim f/2.ô Fishaye tens.
flash and direra flash, It will look unnatural.
« If the wide panel is accidentally rfetached, the
shown by the arrow. The entire display on the
LCD panel will blink„ but the speedlite will work
normally.
