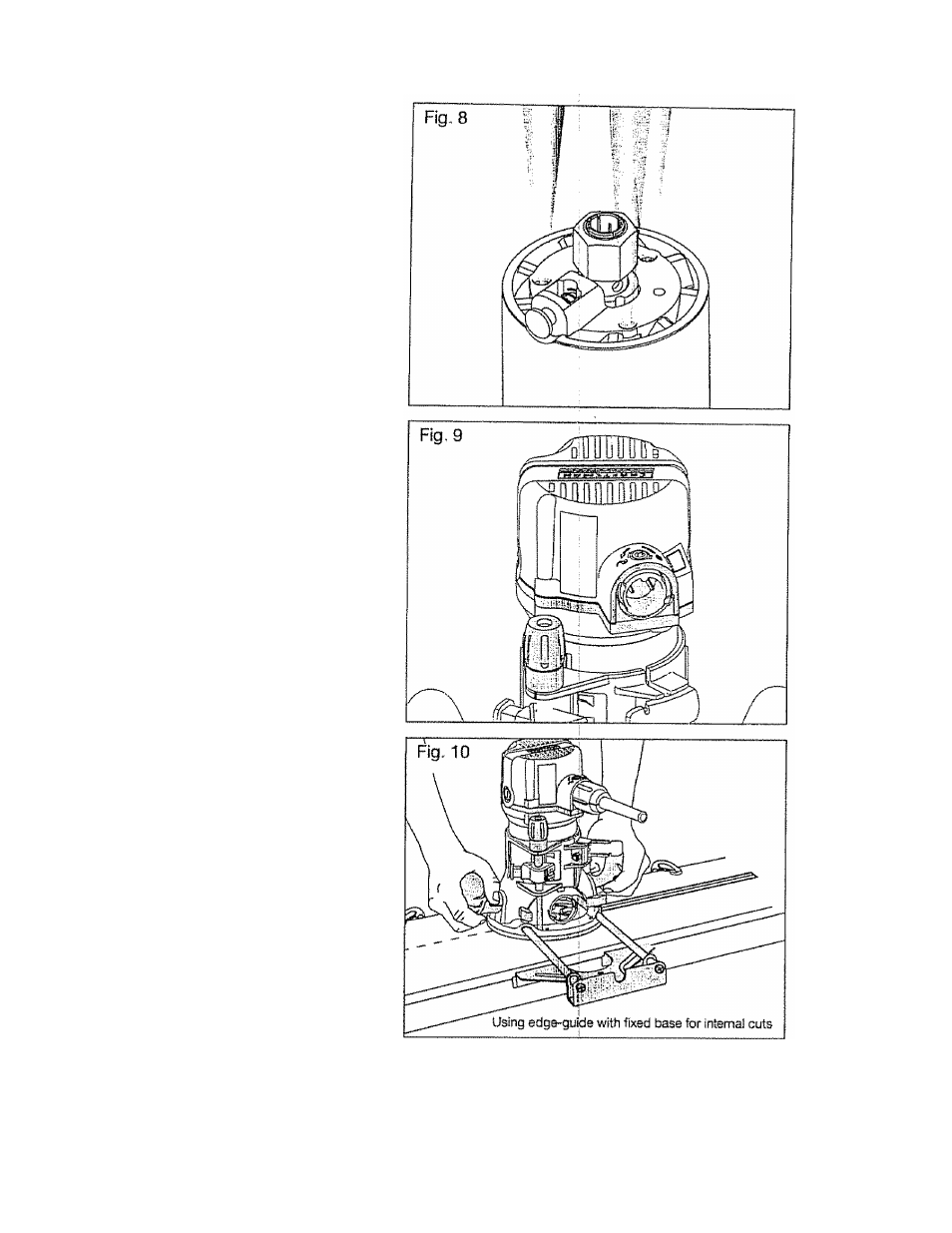

LED WORKLIGHTS (Fig. 8)
Your router motor has 3 built-in
work lights located around the
col!et/nut to provide high vis
ibility of work piece when cut
ting. These lights are always
“On" when the toggle switch is
in the “On” position.
“LIVE TOOL INDICATOR”
LIGHT (Fig. 9)
Your router also has a “LIVE
TOOL INDICATOR” green light,
located on the router motor
top cap where the power cord
enters the router motor. TTiis
green light is always on when
router motor is plugged into
power source.
HEAVY-DUTY EDGE
GUIDE (Fig. 10)
Your Fixed Base Router comes
with a Heavy-Duty Edge
Guide. This edge guide can be
used as an aid in routing ap
plications such as decorative
edging, straight-edge planing
and trimming, grooving, dado
ing and slotting.
To assemble onto fixed or
plunge bases, simply insert
edge guide rods into edge
guide mounting slots, adjust
to desired position, and lock
down with the edge guide
locking knobs.
