TRACTOR - - MODEL NUMBER 917.272233

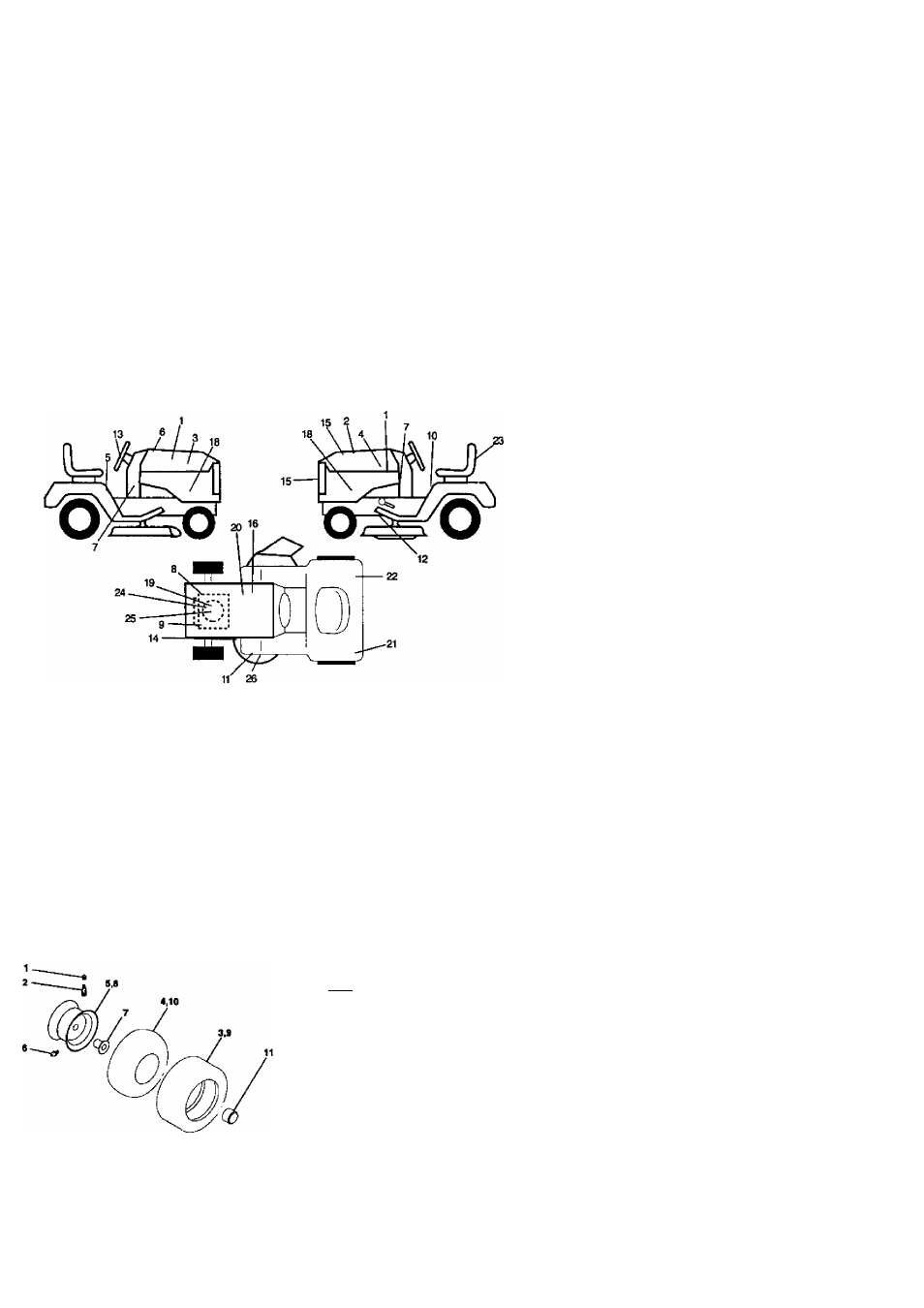

DECALS
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO. PART
NO.
DESCRIPTION
1 177888 Decal, Hood Name Pie. 16 138047 Decal, Battery Diehard
2 177249 Decal, Replacement Parts 18 177913 Decal, Panel Side
3 177909 Decal, Hood, R.H. 19 177918 Decal, Blower Housing
4 177910 Decal, Hood, LH. 20 149516 Decal, Battery Dngr/Psn Eng
5 156368 Decal, Fender STLT Opr Inst 21 174969 Reflector
6 133644 Decal, Customer Maintenance 22 174970 Reflector
7 177967 Decal, Dash Pnl 23 178989 Decal, Seat
8 177916 Decal, ENCN KP 20 Sears LTX RH 24 177914 Decal, Engine
9 177917 Decal, ENCN KP 20 Sears LTX LH 25 177915 Decal, Engine
10 156439 Decal, FenderDanger 26 178455 Decal, Deck Caution 48
11 178462 Decal, Deck Heavy Duty - - 138311 Dece9, Lift Handle
12 146046 Decal, V-Belt Drive Schematic . . 174998X418 Pad Footrest LH STLT
13 177890 Decal, SIrg Wheel - - 174999X418 Pad Footrest RH STLT
14 17S291 Decal, V-Belt Schematic - - 179435 Owner's Manual. English
15 177889 Decal Repic - - 179436 Owner's Manual, Spanish
WHEELS &TIRES KEY PART
NO. NO.
DESCRIPTION
1 59192 Valve Cap, Tire
2 65139 Stem, Valve
3 177750 Ttre, Front
4 69904 Tube, Front Tire (Not Provided,
Service Item Only)
5 106732X417 Rim, Front
6 278H Rtting, Grease (Front Wheel Only)
7 9040H Bearing, Flange (Front Wheel
Only)
8 106108X417 Rim, Rear
9 177751 Tire, Rear
10 7152J Tube, Rear Tire (Not Provided,
Service Item Only)
11 104757X417 Cap. Axle
• - 144334 Sealant, Tire 10 oi.
NOTE; All component dimensions given in U.S. inches
1 irich = 25.4 mm
