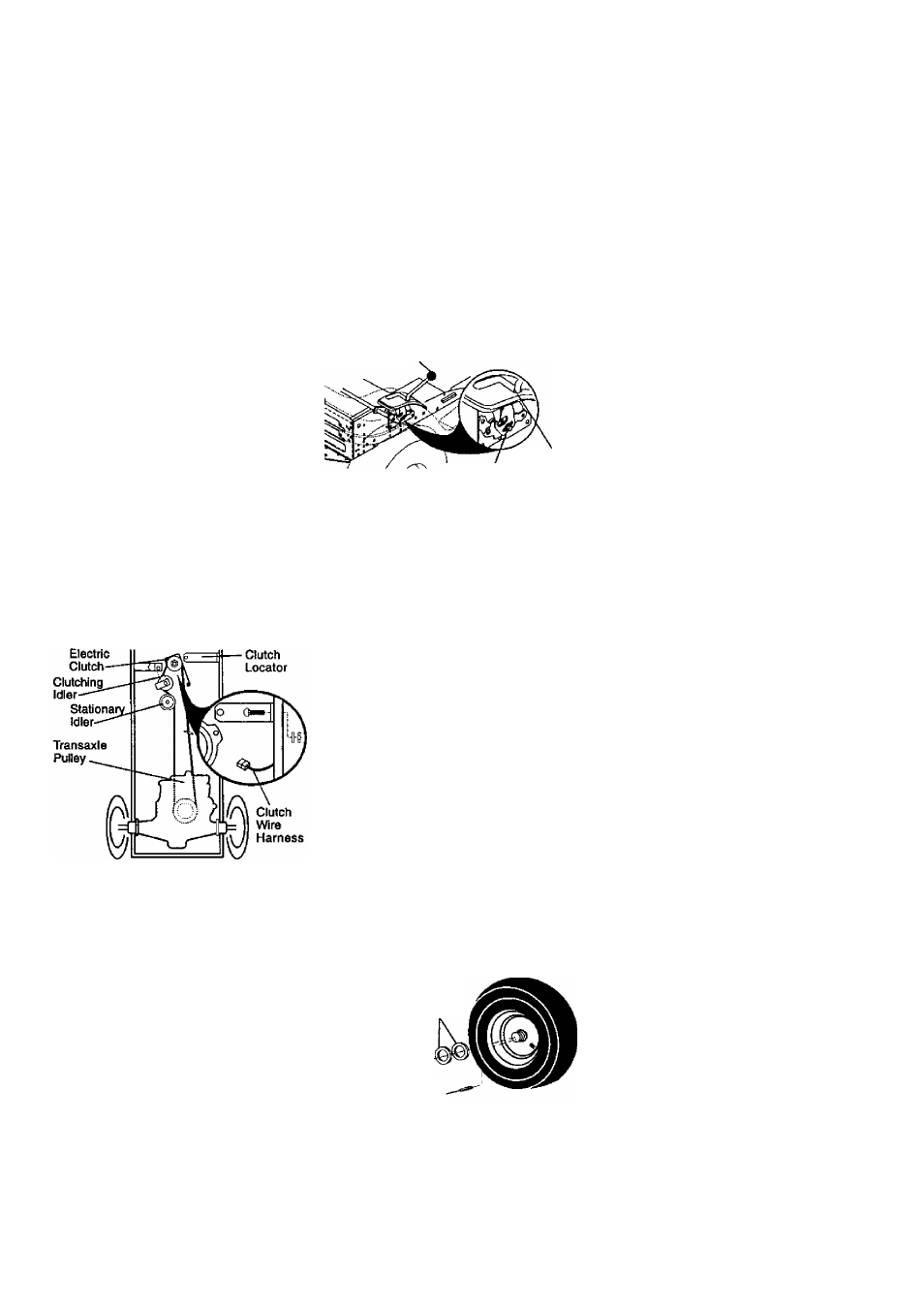

TO REPLACE MOTION DRIVE BELT
Park the tractor on level surface. Engage
parking brake. For assistance, there Is a
belt Installation guide decal on bottom
side of left footrest.
1. Remove moiwer (See TO REMOVE
MOWER” in this section of this
manual.)
Disconnect clutch wire harness.
Remove clutch locator.
Remove belt from stationary idler and
clutching idler.
Pull belt slack toward rear of tractor.
Remove belt upwards from transaxle
pulley by deflecting beit keepers.
Pull belt toward front of tractor and
remove downwards from around
electric clutch.
Install new belt by reversing above
procedure.
Gearshift Lever
6 .
7.
TRANSAXLE GEAR SHIFT LEVER
NEUTRALADJUSTMENT
The transaxle should be in neutral when
the gear shift lever is in neutral (N) (lock
gate) position. The adjustment is preset at
the factory; however, if adjustment is
needed, proceed as follows;
1. Make sure transaxle Is In neutral (N).
NOTE: When die tractor rear wheels
move freely, the transaxte is in neutral.
2. Loosen adjustment bolt in front of the
right rear wheel.
3. Position the gear shift lever in the
neutral (N) position.
4. Tighten adjustment bolt securely.
NOTE: If additional clearance is needed
to get to adjustment bolt, move mower
deck height to the lowest position.
Neutral
'Adjustment Bolt Lock
Gate
TO ADJUST STEERING WHEEL ALIGN­
MENT
If steering wheel crossbars are not
horizontal (left to right) when wheels are
positioned straight fonward, remove
steering wheel and reassemble per
instructions in the Assembly section of
this manual.
FRONT WHEEL TOE-IN/CAMBER
The front wheel toe-in and camber are
not adjustable on your tractor. If damage
has occurred to affect the front wheel toe-
in or camber, contact your nearest Sears
or other qualified service center.
TO REMOVE WHEEL FOR REPAIRS
1. Block up axle securely.
2. Remove axle cover, retaining ring and
washers to allow wheel removal (rear
wheel contains a square key - Do not
lose).
3. Repair tire and reassemble.
NOTE: On rear wheels only: align
grooves in rear wheel hub and axle.
Insert square key.
4. Replace washers and snap retaining
ring securely In axle groove.
5. Replace axle cover.
NOTE: To seal tire punctures and prevent
flat tires due to slow leaks, tire sealant
may be purchased from your local parts
dealer. Tire sealant also prevents tire dry
rot and corrosion.
Washers
Retaining Ring '
Axle
Square Key (Re^
Wheel Only)
25
