Craftsman 917.272233 - Manual (Page 43)

TRACTOR - - MODEL NUMBER 917.272233

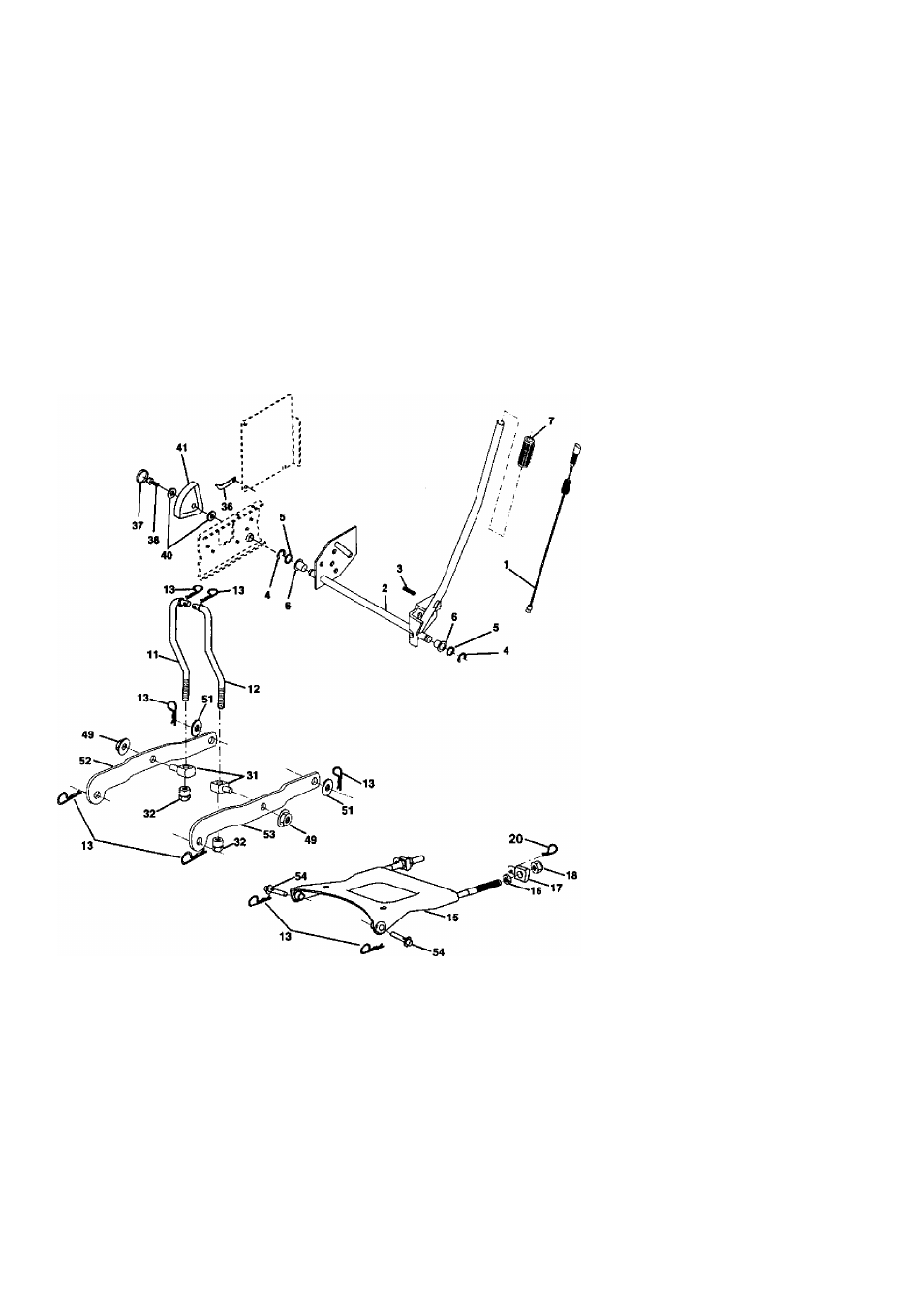

LIFT ASSEMBLY
KEY
NO. PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1 176263 Plunger Assembly 31 176205 Bearing, Pvt, Lift Spherical
2 159476 Shaft Assembly, Lift 32 175994 Nut, Uft Urik 7/16-20
3 178981 Pin, Groove 36 155097 Pointer Height Indicator
4 12000002 E-Rir^ 37 123935X plug Hole
5 19211621 Washer 21/32 x 1 x 21 Gauge 36 17060516 Screw 5/16-18 X1
6 120183X Bearing, Nylon 40 19112410 Washer 11/32 x 1-1/2x10 Ga
7 175630 Grip, Handle, Fluted 41 155098 Indicator Height Stit
11 175370 Link, Lift, L.H. 49 145212 Nut Hex/Large Lock
12 175371 Unk, Uft, R.H. 51 19171416 Washer
13 4939M Retainer Spring 52 175802 Suspension Arm RH
15 175562 Link, Front 53 175378 Suspension Arm LH
16 73350800 Nut, Hex, Jam 1/2-13 UNO 54 175560 Pin Flange
17 175689 Trunnion
IS
20
73800800
163552
Nut Lock w/wsh 1/2-13UNC
Retainer Spring
NOTE: All component dimensions given in U.S. inct
1 inch « 25.4 mm
43
