Craftsman 917.272233 - Manual (Page 42)

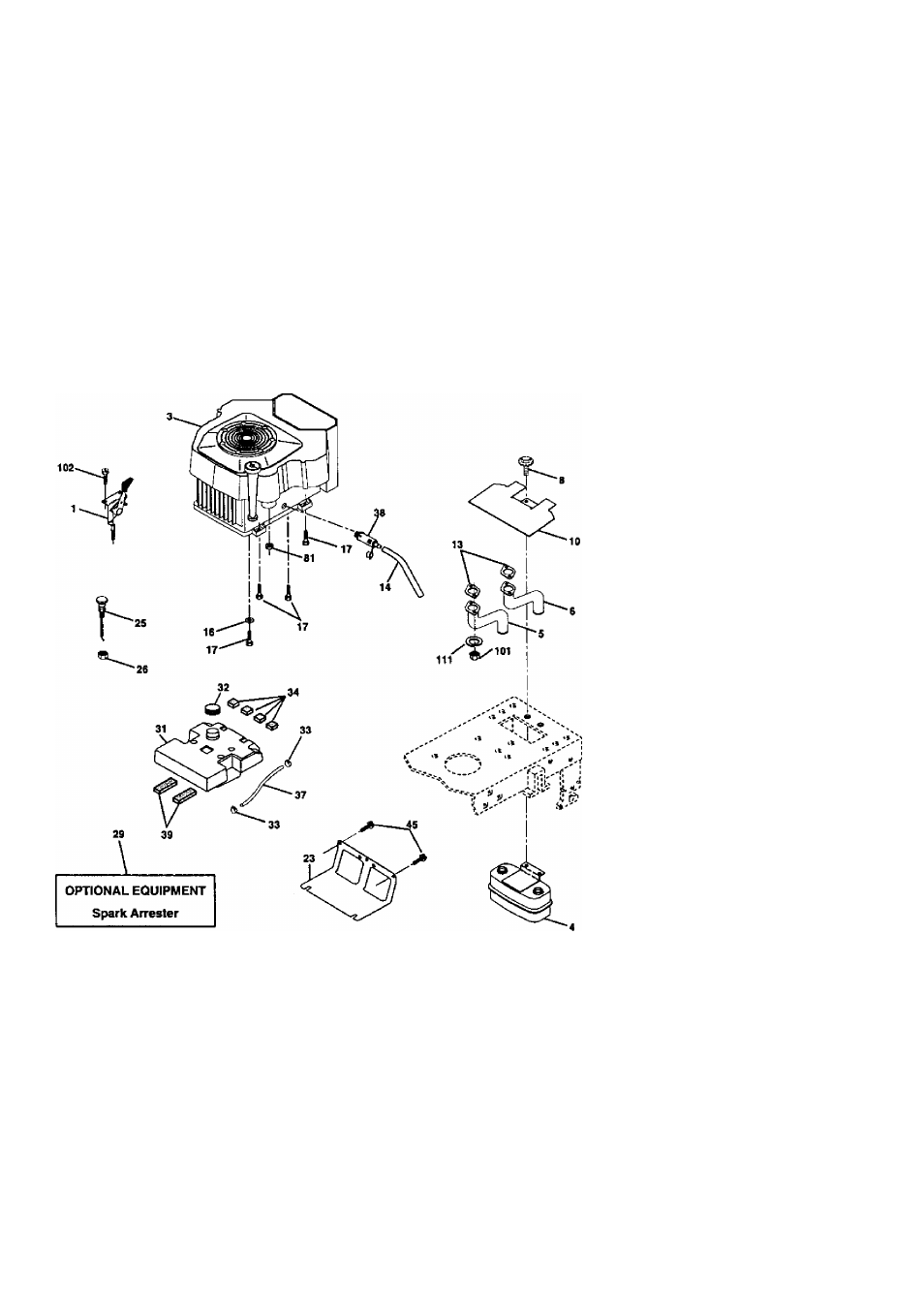

ENGINE
TRACTOR - - MODEL NUMBER 917.272233
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 175439X505 Control, Throttle 29 137180 Kit, Spark Arrestor
3 ...................... Engine, (See Breakdown) Kohler 31 157103 Tank Fuel
Model Number CV624-65578 32 161696 Cap Asm Fuel
4 149723 Muffler 33 123487X Clamp, Hose
5 146699 Pipe Exhaust LH 34 106082X Pad, Spacer
e 146700 Pipe Exhaust RH 37 8543R Line, Fuel
s 171877 Bolt 5/16-18 UNC X 3/4 w/Sems 38 148315 Plug Drain Oil Easy
10 146629 Shield, Heat №f№r 39 109227X Pad, Idler
13 24454HE Muffler Gasket (See Engine 45 17000612 Scr№ Hexwsh Thdr 3/8-16 x 3/4
Breakdown) 81 73510400 Nut Keps Hex 1/4-20 UNC
14 148456 Ti4>e Ot»n Oil Easy 101 M73030e00 Nut Flange M8-1.25
16 11050600 Washer, Lo<*, External Tooth 3/8 102 164863 Screw Hwhd H.-Lo #13016 X 3/4
17 17490624 Screw Thdrol 3/8-16x1-1/2 111 10010500 Washer Split
23
25 169637 Shield, Browning / Debris Guard
175441X505 Choke Control
NOTE: All component dimensions given in U.S. inches
26 73920600 Nut. Keps 3/8-24 UNF
1 men s 25.4 mm
42
