CRAFTSMAN 24" - 6H.P. SNOW THROWER 536.888400

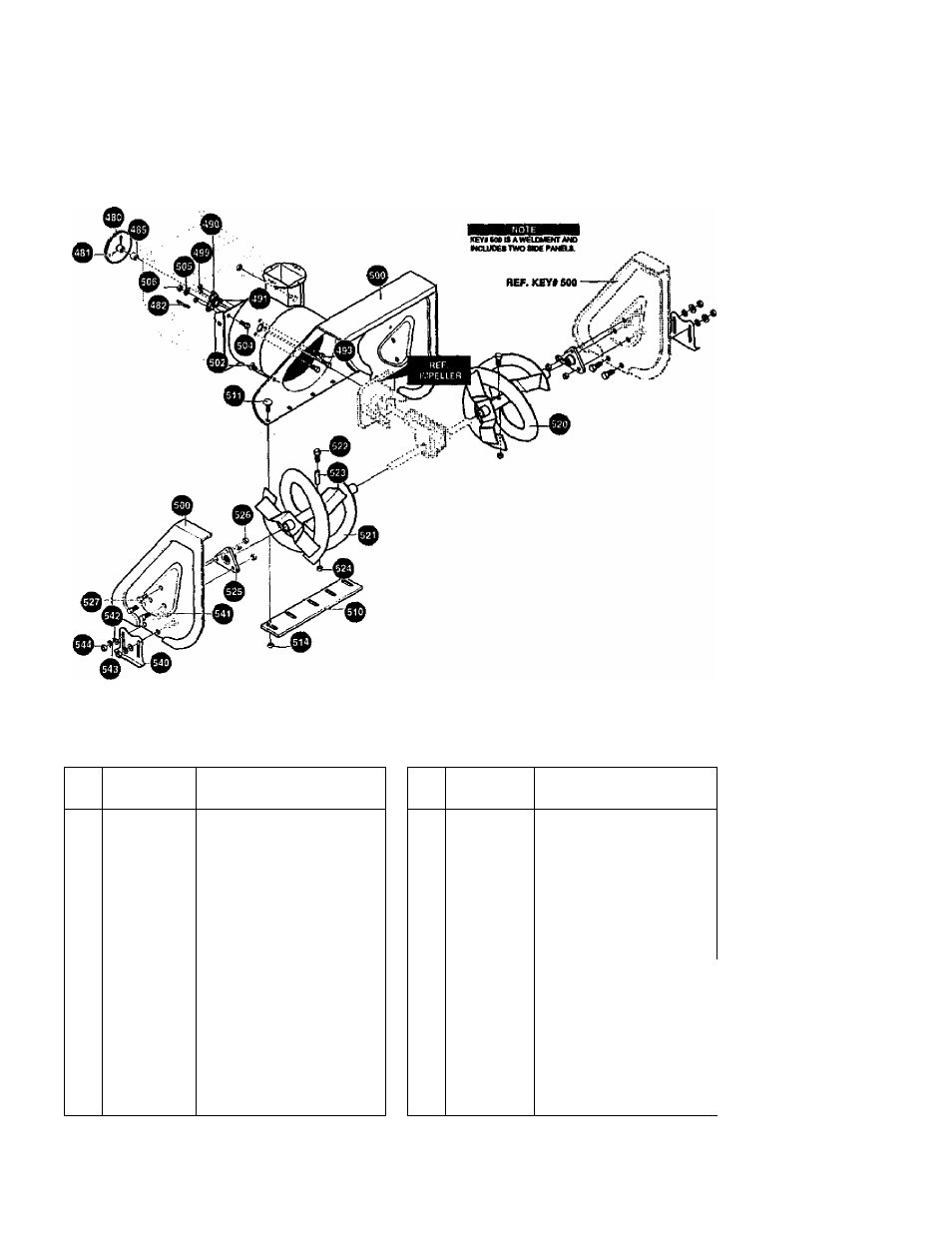

AUGER HOUSING ASSEMBLY
339972F
REF
NO.
PART NO. PART NAME
REF.
NO.
PART NO. PART NAME
480 583124 Pulley, V4L 522 Screw, 1/4-20x1.75
481 577400 Screw 5/16-18X.63 523 3943 Spacer Sleeve
482 71371 Square Key .18Sqx.88Lg 524 Nut, 1/4-20 Reghexctrtk
485 334514 Spacer, Slev .676x1 x.53 525 9517 Ranged Bearing
490 582960 Retainer, Ball 526 711862 Nut, Top Lock
491 43846 Bearing, Ball 527 9357 Screw, 5/16-18X.75
493 180077 Screw, 5/16-18X.75 540 780061 Skid, Height Adjust
499 710026 Nut, 5/16-18 Reghex 541 340720 Carr. Bolt 5/16-18X.75
500 760810-833 Housing Assy. 542 120393 Flatwasher .344x.69x.065
502 309235 - Ratchet Fastener 543 120638 Washer, Hvsptik
504
505
506
510
511
514
520
521
71003
120382
71111
581397-853
340714
780285
340518-853
340523-853
Screw, 3/8-16X.75
Washer, Regspttk
Nut, 3/8-16 Hexctrik
Blade, Scraper 24*
Carr. Bolt, 1/4-20X.75
Nut. 1/4-20 Whiz-kJck
Auger Assy LH
Auger Assy RH
544 120376 Nut, 5/16-18 Reghex
*The replacement part number for Key #522 Is 760875 Shear Pin, Self Locking.
