Page 8: Operating controls
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

• To attach the bag, place the opening of the bag
over the chute deflector so it completely covers the
chute opening. Depress the plunger on the draw
string, and pull on the drawstring until the bag is
tight around the chute opening. Release plunger to
lock it into position. See figure 5.
OPERATION
KNOW YOUR CHIPPER-SHREDDER
READ
THIS
OWNER’S
MANUAL
AND
SAFETY
RULES
BEFORE
OPERATING
YOUR
CHIPPER-SHREDDER.

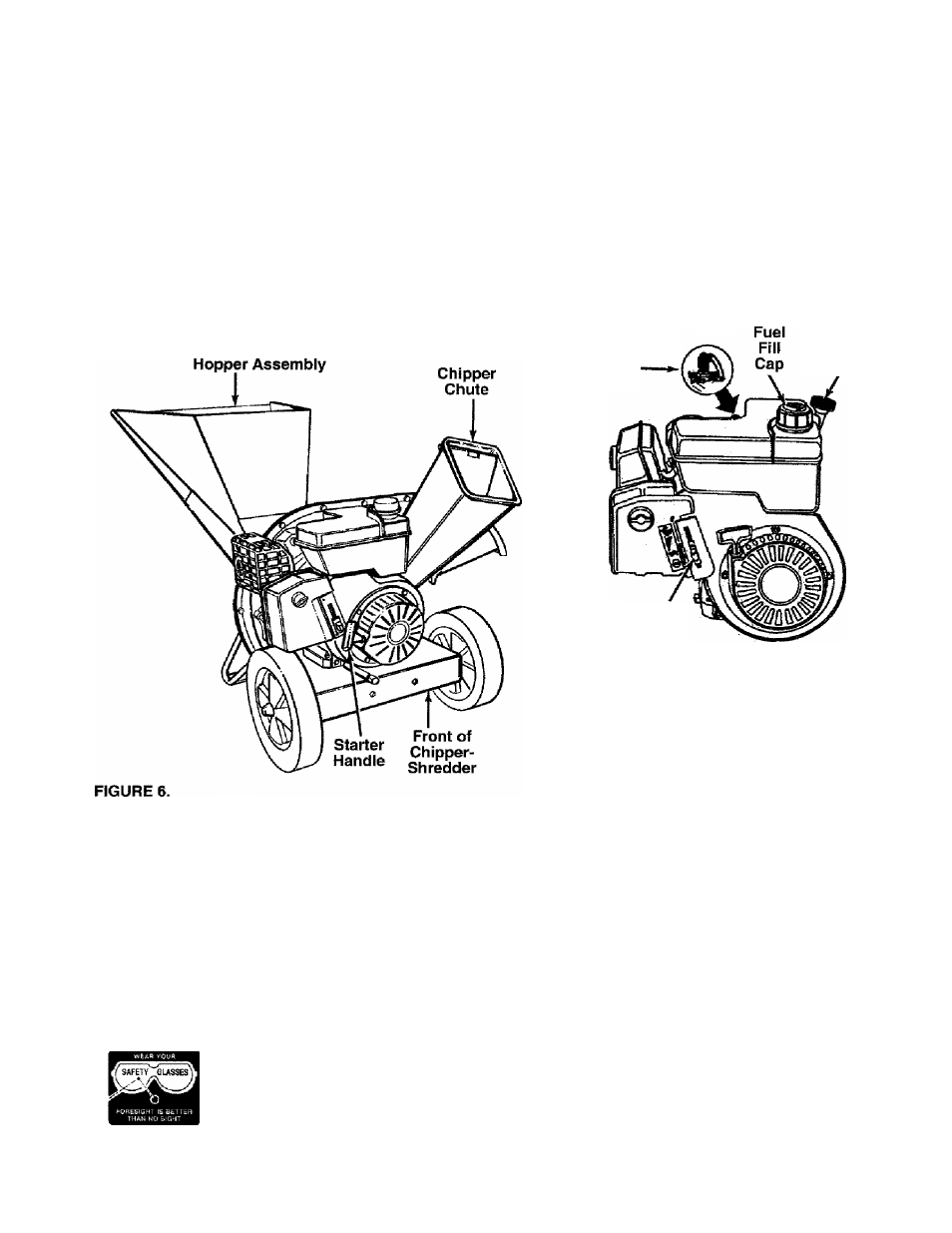

Compare the illustrations with your chipper-shredder to familiarize yourself with the location of various controls
and adjustments. Save this manual for future reference.
Spark Plug,
Wire and
Boot
Oil Fill and
Dipstick
Throttie
Control
MEETS ANSI SAFETY STANDARDS
Sears chipper-shredders conform to the safety standard B71.6-1982 of the American National Standards Institute.
OPERATING CONTROLS
RELEASE BAR
—Used to release the hopper when
raising or lowering. See figure 10.
PRIMER
—Pumps
additional
fuel
from
the
carburetor
to the cylinder for use when starting a cold engine.
See figure 14.
STARTER
HANDLE—
Used
to
manually
start
the
engine. See figure 6.
THROTTLE CONTROL
—Permits
selection
of
fast
or
slow engine speed, and is used to stop the engine.
See figure 6.
BEFORE
USING
YOUR
CHIPPER-SHREDDER,
AGAIN
REFER
TO
THE
“SAFETY
RULES”
AS
SHOWN
ON
PAGE 2 OF THIS MANUAL. ALWAYS BE CAREFUL.
The operation of any chipper-shredder can result in foreign objects being thrown into the eyes, which can
result in severe eye damage. Always wear the safety glasses provided with the chipper-shredder or eye
shields before chipping or shredding, or while performing any adjustments or repairs. We recommend
Wide Vision Safety Mask for over spectacles or standard glasses available at Sears Retail or Catalog
Stores.
