ASSEMBLY INSTRUCTIONS
Flat-H
Washer
5/16 " I.D.
- Hex Lock
Nut 5/16-18
Thread
Hex Bolt
5/16-18 X 8-3/8" Long
IMPORTANT:
This unit is shipped WITHOUT GASO
LINE or OIL in the engine. After assembly, see opera
tion section of this manual for proper fuel and engine
oil recommendations.
NOTE:
To determine right and left hand sides of your
chipper-shredder,
stand
behind
the
unit
with
the
engine the farthest away from you. See figure 6.
Your
chipper-shredder
has
been
completely
assem
bled at the factory, except for the hopper assembly
(hopper hood and upper leaf ramp section have been
sub-assembled),
upper
guide
assembly,
chute
deflector
and
the
catcher
bag.
The
hardware
pack
safety glasses and a bottle of oil are also included in
the carton.

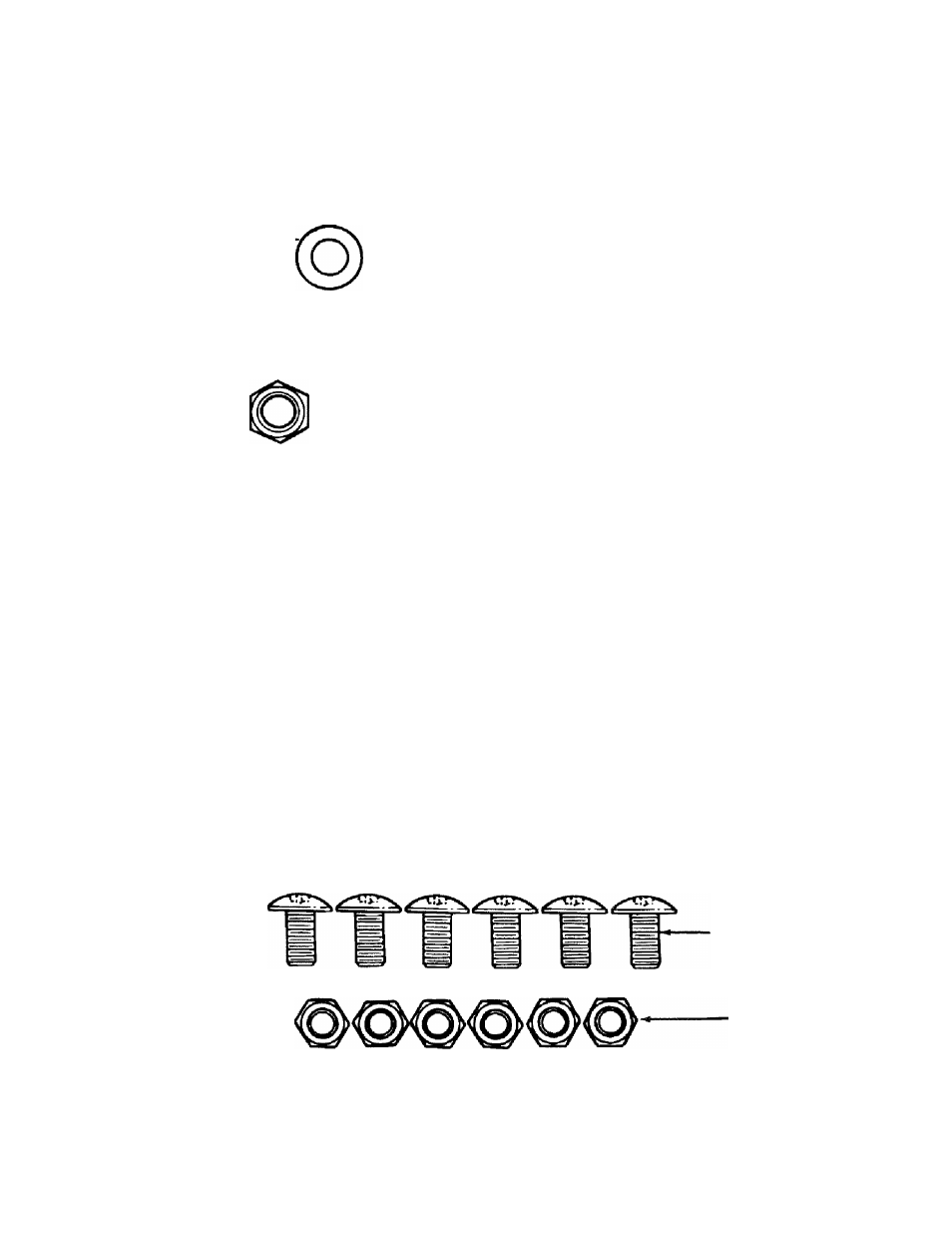

The hardware pack contains the parts shown in figure
1 (shown full size).
TO REMOVE CHIPPER-SHREDDER FROM CARTON
Cut the corners of the carton. Remove all packing
inserts. Roll chipper-shredder out of the carton. Make
certain
all
parts
and
literature
have
been
removed
before the carton is discarded.
TOOLS REQUIRED FOR ASSEMBLY
(1) Phillips Screwdriver
(2) 1/2" or Adjustable Wrenches
(2) 7/16" or Adjustable Wrenches
(1) Funnel
Truss Machine Screws
1/4-20 X 1/2" Long
Hex Lock Nuts
1/4-20 Thread
FIGURE 1.
