ASSEMBLY
The following parts are shipped loose with your pressure
washer:
• Main Unit — pressure washer with wheels,
guide handle.
» High Pressure Hose
® Parts Box #1 (which includes items listed below)
Rotating Brush
Vehicle/Boat Wash
House^ulti-purpose Wash
Parts Box #2(which includes items listed below)
Adjustable Nozzle
Tuito Nozzle
Spray Gun
Nozzle Extension
Wire Form
Motor Oil
Manual Bag (which includes the items listed below)
® Owner’s Manual
® Nozzle Cleaning Kit
<• “0”~RingKit
Become fanflliar with each piece before assembling the
pressure washer. Check all contents against the illustra
tion on Page 6. If any parts are missing or damaged, call
the Pressure Washer Helpline at 1-800-222-3136.
TO REMOVE PRESSURE WASHER FROM
CARTON
® Remove parts boxes included with pressure washer.
The high pressure hose is packed in ttie bottom of the
carton. Remove the hose.
® Slice two corners at handle end of carton from top to
bottom so the panel can be folded down flat.
» Raise handle, secure In place with the locking caps
and roll the pressure washer out the open end of the
carton.
CARTON CONTENTS
Locking Caps
For tie most part, your Craftsman High Pressure Washer
has been assembled at tie factory. You must, however,
attach the wire form, assemble the spray gun, and attach
tie high pressure hose to the pump and spray gun.

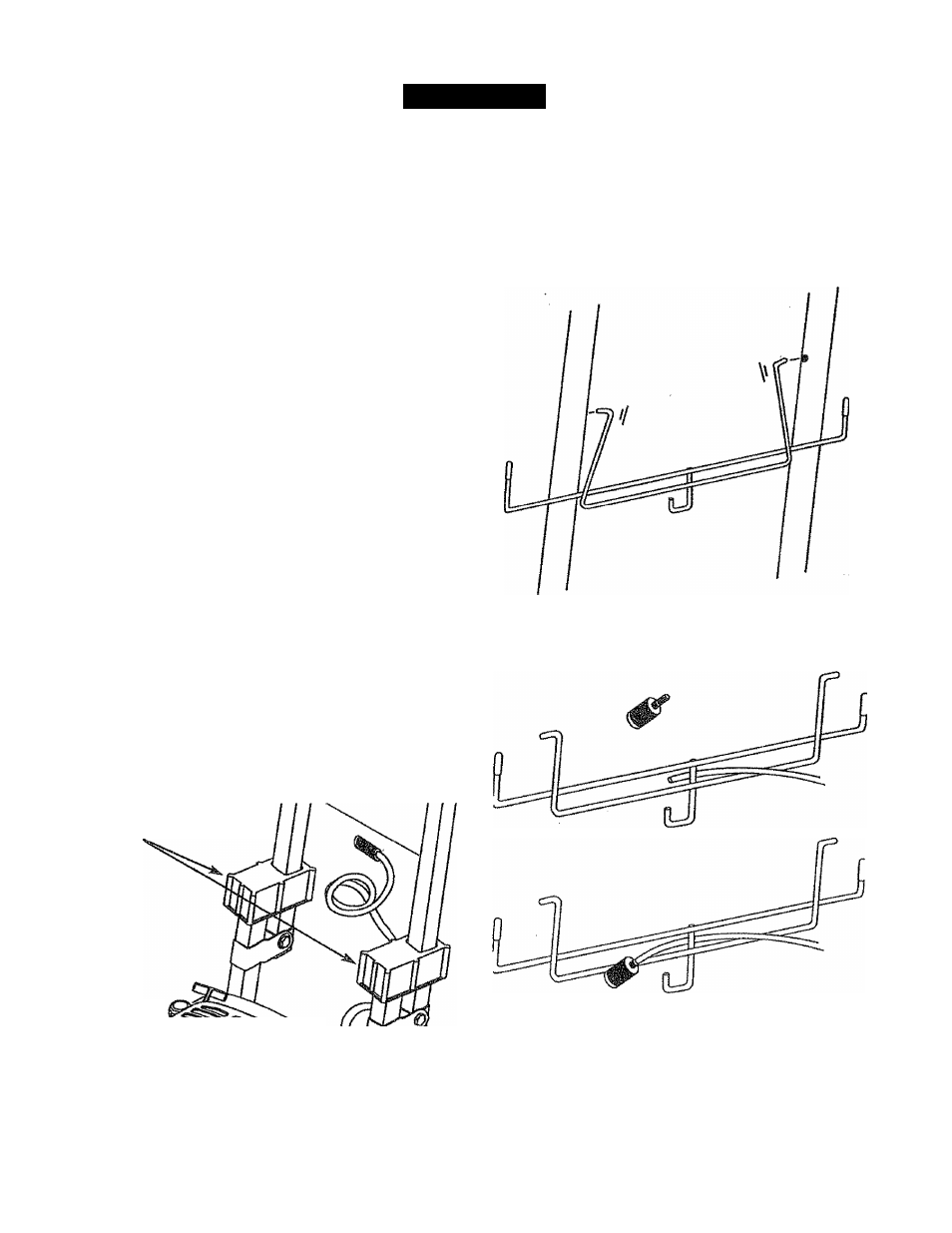

® While facing the rear of the Pressure Washer, insert
the wire support with the longer arm positoned on the
left. From this view the hook should resemble a “J”.
HOW TO SET UP YOUR PRESSURE WASHER
Cut te wrap on chemical injection tube. Remove chemi
cal injection ftiter, thread chemical injection fobe tirough
tie wire form and reinsert filter into tube.
a
Check carton for additional loose parts.
