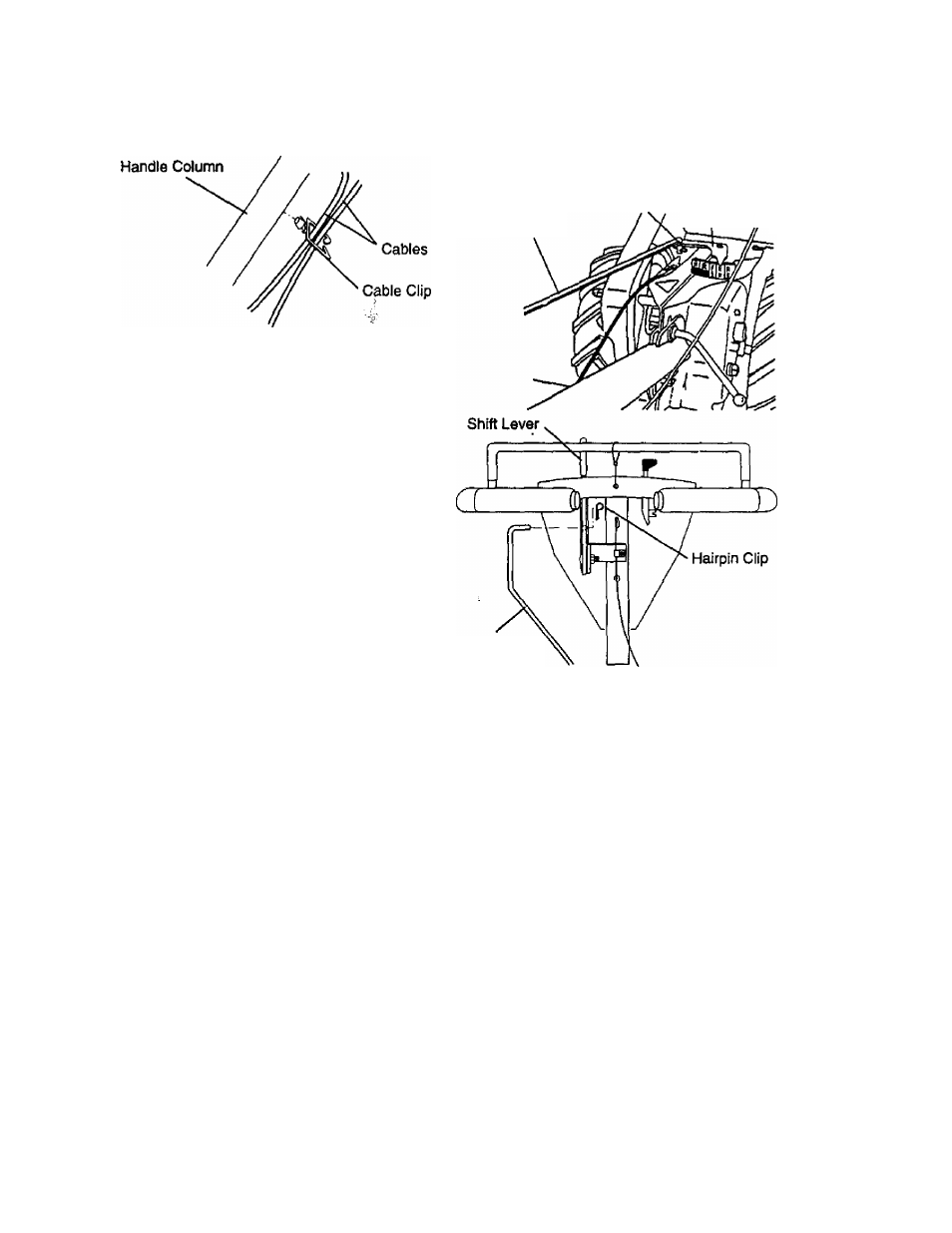

INSERT CABLE CUP

• Insert plastic cable clip into hole on the

back of handle column. Push cables
into clip.

Attach this end to shift iever

Attach this End To shift

Lever Indicator

Shift Rod

Hairpin Clip Shift Lever

I (indicator

CONNECT SHIFT ROD

• Insert end of shift rod farthest from bend

into hole of shift lever indicator.

• Insert hairpin clip through hole of shift

rod to secure.

• Insert other end of shift rod into hole in

shift lever.

• Insert second hairpin clip through hole of

shift rod with bend of clip on rinht side.

REMOVE TILLER FROM CRATL

• Adjust handle assemby to lowest posi

tion. Be sure lock lever is tightened
securely.

• Make sure shift lever indicator is in “N”

(neutral) position.

• Tilt tiller forward by lifting handle.

Separate cardboard cover from leveling

shield.

• Rotate tiller handle to the right and pull

tiller out of carton.

Shift Rod

CHECK TIRE PRESSURE

The tires on your unit were overinflated at
the factory for shipping purposes. Correct
and equal tire pressure is important for

best tilling performance.
• Reduce tire pressure to 20 PSI.

HANDLE HEIGHT

• Handle height may be adjusted to better

suit operator. (See TO ADJUST HAN

DLE HEIGHT" In the Service and

Adjustments section of this manual).
