MAINTENANCE
MAINTENANCE
SCHEDULE
FILL IN DATES
AS YOU COMPLETE
REGULAR SERVICE
/4
^4/
//A
it/¿A/
i Ujt k/
w/
U SERVICE DATES
Check Engine Oil Level ✓ ✓
Change Engine Oil <2
Oil Pivot Points ✓
Inspect Spark Arrester / Muffler
✓
Inspect Air Screen ✓
Clean or Replace Air Cleaner Cartridge
Clean Engine Cylinder Fins ✓
Replace Spark Plug ✓
1 • Change more often when operating under a heavy load or in high ambient temperatures.
2 ■ Seivica more often when operadng in dirty or dusty conditions.
GENERAL RECOMMENDATIONS
The warranty on this tiller does not cover
items that have been subjected to opera­
tor abuse or negligence. To receive full
value from the warranty, the operator must
maintain tiller as instructed in this manual.
Some adjustments will need to be made
periodically to properly maintain your tiller.
All adjustments in the Service and
Adjustments section of this manual should
be checked at least once each season.
• Once a year you should replace the
spark plug, clean or replace air filter, and
check tines and belts for wear. A new
spark plug and clean air filter assure
proper air-fuel mixture and help your
engine run better and last longer.
BEFORE EACH USE
• Check engine oil level.
• Check tine operation.
• Check for loose fasteners.
LUBRICATION
Keep unit well lubricated*(See “UyBRICA-
TION CHART").

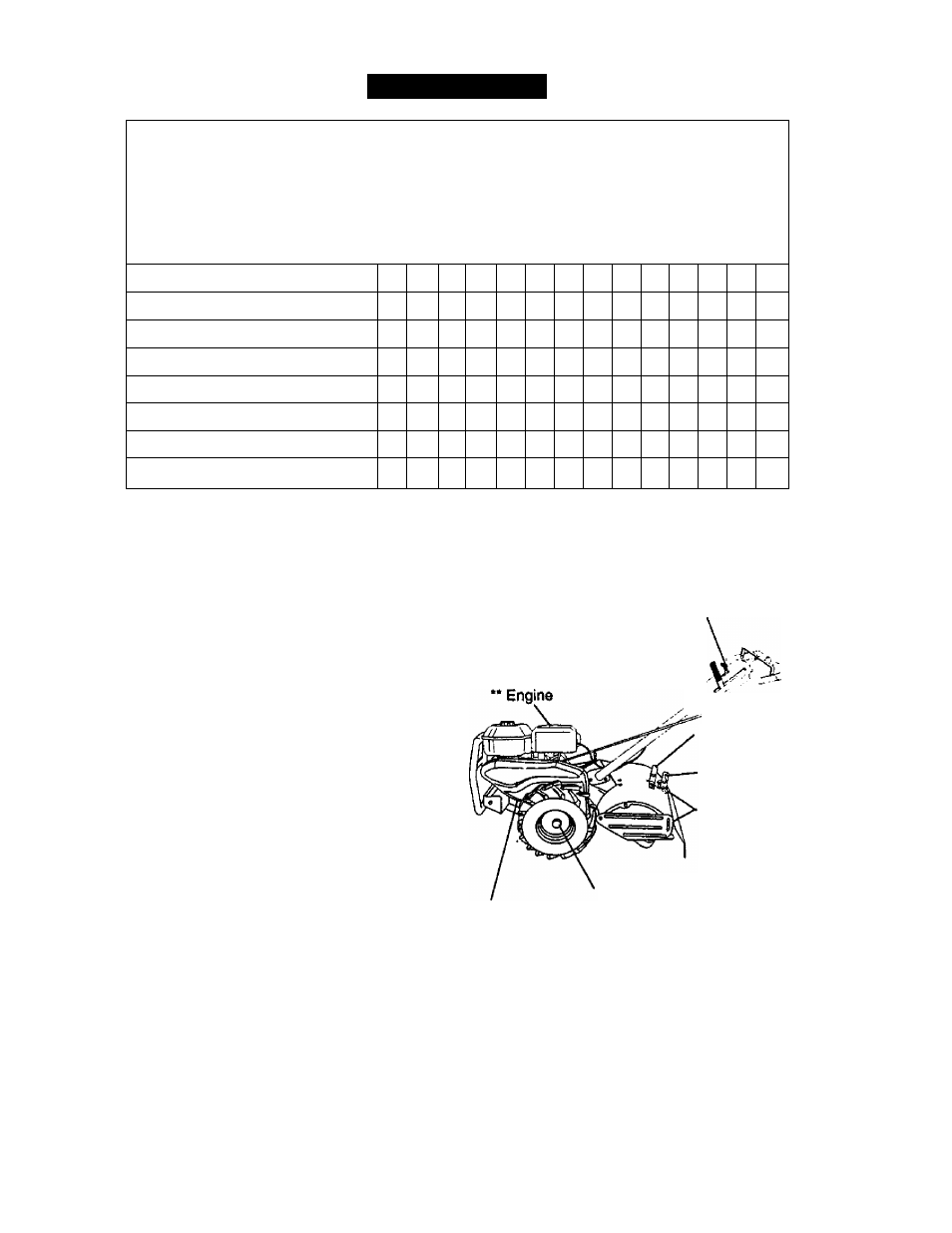

LUBRICATION CHART
* Throttle Control
* Idler Bracket
* Drag
Stake Pin
* Depth
Stake Pin
* Leveling
Shield
Hinges
* Wheel Hub
• SAE 30 OR 10W-30 MOTOR OIL
" REFER TO CUSTOMER
RESPONSIBILITIES “ENGINE" SECTION
