TILLER - - MODEL NUMBER 917.293320

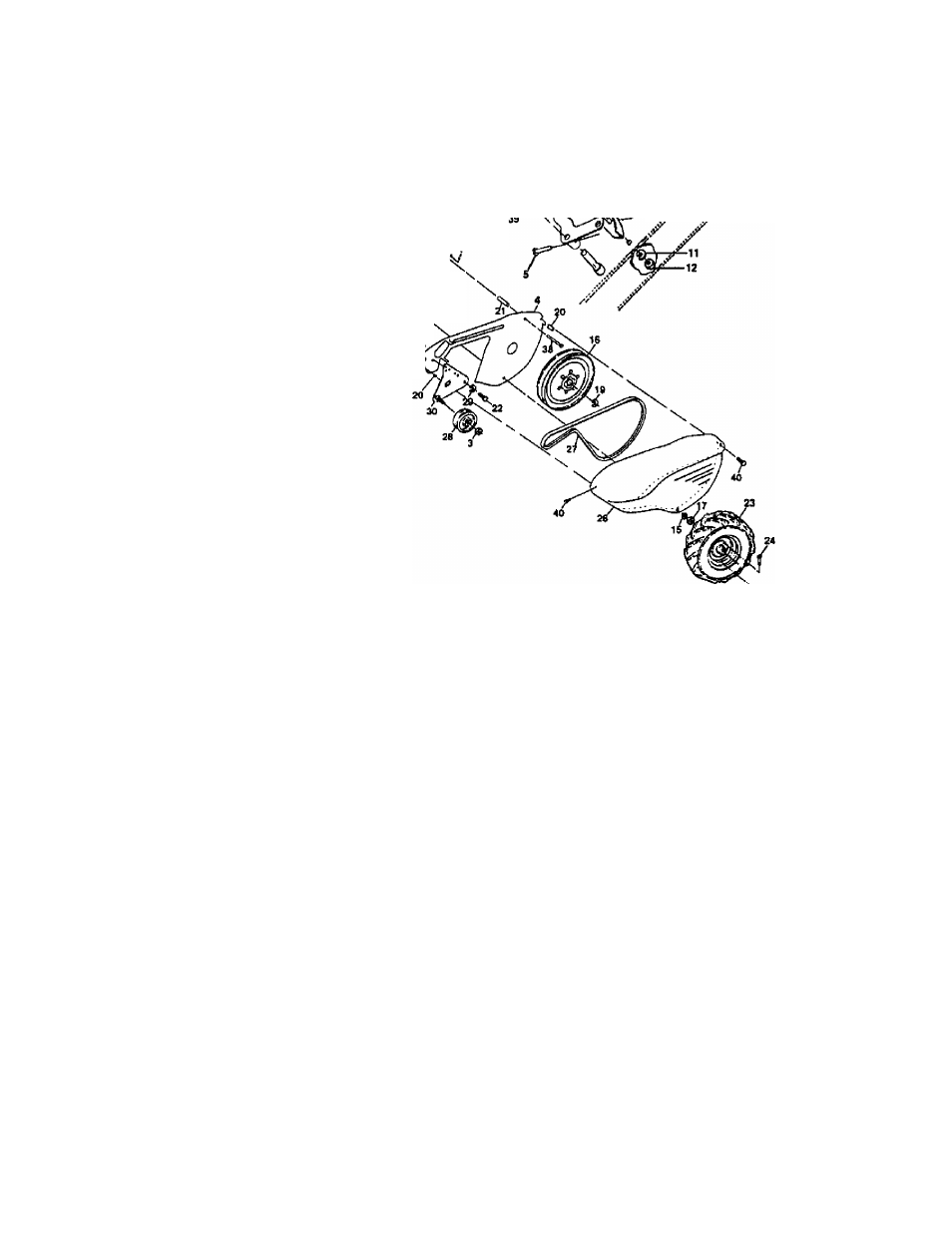

MAINFRAME, LEFT SIDE <
NO.
1
2
3
4
5
6
7
6
9
10
1 1
12
13
14
15
16
17
19
21
23
t N i i
‘"¿is.
^<7h
A11^ AX^../
KEY PART
NO.
STD541431
STD551137
STD541037
165710
164329
162756X505
STD532505
161530
86777
9464R
STD551125
STD541025
23230506
110652X
STD551031
145102
STD541031
12000028
156117
102190X
124258X
795R
DESCRIPTION
Nut. K^s 5/16-18
' Washer, Lock 3/8
•Nut,Hex 3«-16
Shield Inner
Pin Shift Lever
Lever, Shift
'Bolt, Carriage 1/4-20 x 1/2 Gr. 5
Plate, Shift Indicator
Screw, Hex. Washer Head.
Slotted #10-24 X1/2
Clip
• Washer, Lock 1/4
•Nut, Hex 1/4-20
•Screw, Set, 5/16-18x3/8
Spacer, Split 0.327 x 0.42 x 2.09
•Washer 11/32 x 11/16 x 16 Ga.
Sheave, Transmission
•Nut,Hex 5/16-18
Ring, Retainer
Spacer, Split 0.327 x 0.42 x 1.220
Tire
Rim
Tire Valve
KEY PART
NO. NO. DESCRIPTION
24
126875X
Rivet. Drilled
25 STD624003 *Cltp, Haiipin
26
165501X558 Guard. Belt
27
132801
Belt. V
28
104679X
Pulley, Idler
29
12000032
Ring, Klip
30
159229
Bracket, Idler
31
102384X
Bolt. Hex 5/16-16x12
32
102141X
Shaft, Idler Arm
33 STD523710 •Bolt, Hex 3/8-16x1
34
102383X
Counterweight. L.H.
35 74760532
Solt, Hex 5/16-18 x 2
36
102331X
Bracket, Reinforcement, L.H.
37
130812
Sheave, Engine
39
140062
Cap, Plunger
43 74760544
Bolt Hex 5/16-18
X
2
44 74770508
Bolt Hex 5/16-2-1/2
45
165504
Nut. Clip
46
165503
Screw, #8-18x1/2
•STANDARD HARDWARE - - PURCHASE LOCALLY
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
