Once all bolts have been installed, tighten
ail nuts using alien wrench and socket
on both bolts and nuts.
I '
■

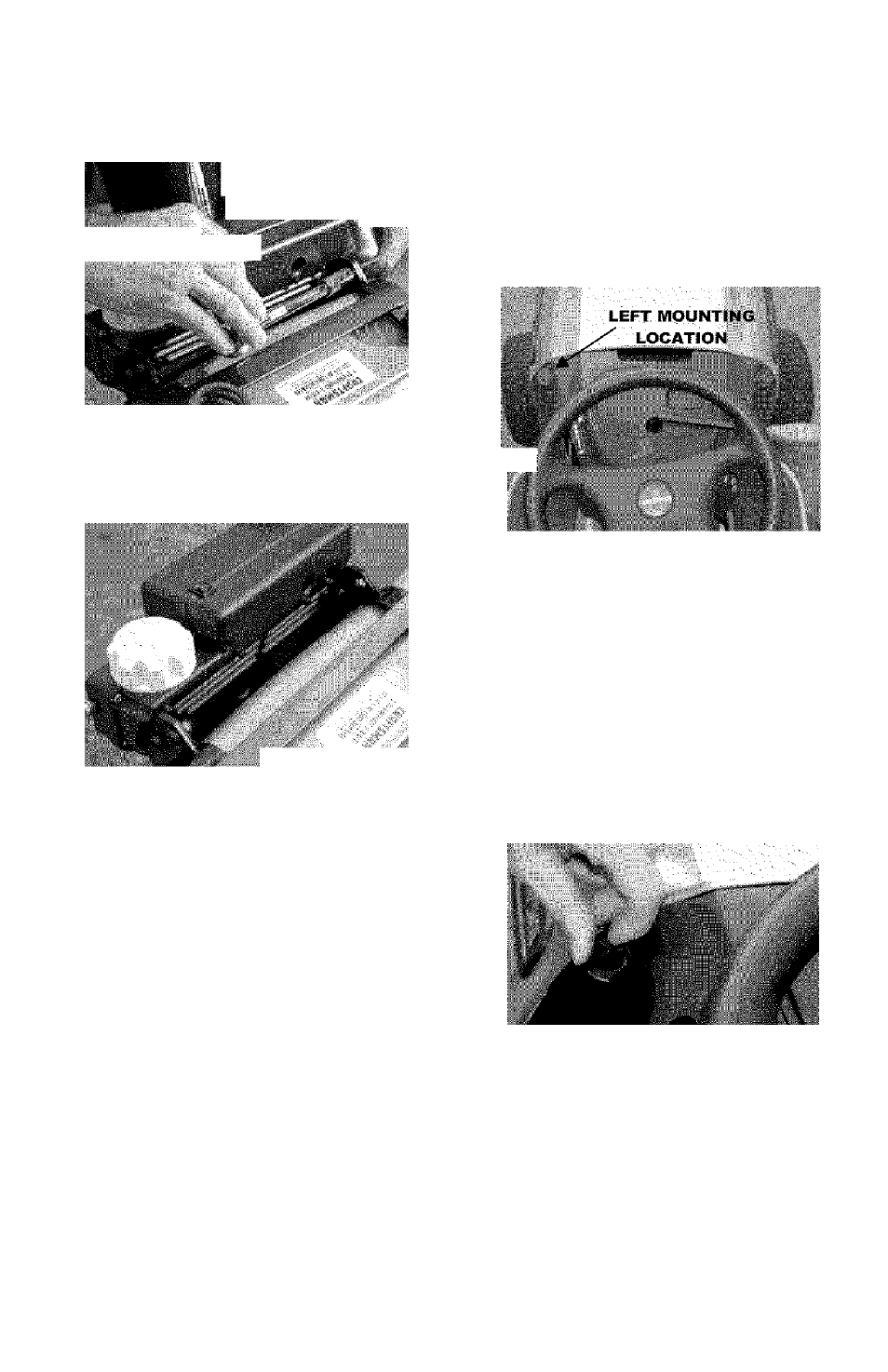

Confirm the installation of all four screws
(A) that hold the power unit (AA) to the
mounting bracket (CC).
Mounting Misting Nozzle Assembly to
T ractor
The rider cooling system misting assembly is
designed to be installed on the tractor’s dash.
Some tractors come equipped with rider cooling
system mounting locations.
If you do not have a dash with the included
mounting locations proceed to STEP 3b.
WARNING: Debris that may enter the supply
tubes of the climate control system can cause
undesirable performance results. Use care
completing the remainder of the installation to
ensure optimal cooling effectiveness.
Step 1a (Tractors wl mounting locations)
• Remove dust cap from rider’s left mount­
ing location. A screwdriver may be
needed to pry dust cap from dash.
Open tractor hood and ensure that no
wires or cables are located at the bottom
of the mounting location. If wires or cables
are present, temporarily clear the area by
securing them safely away from mounting
location using a supplied cable tie (J).
