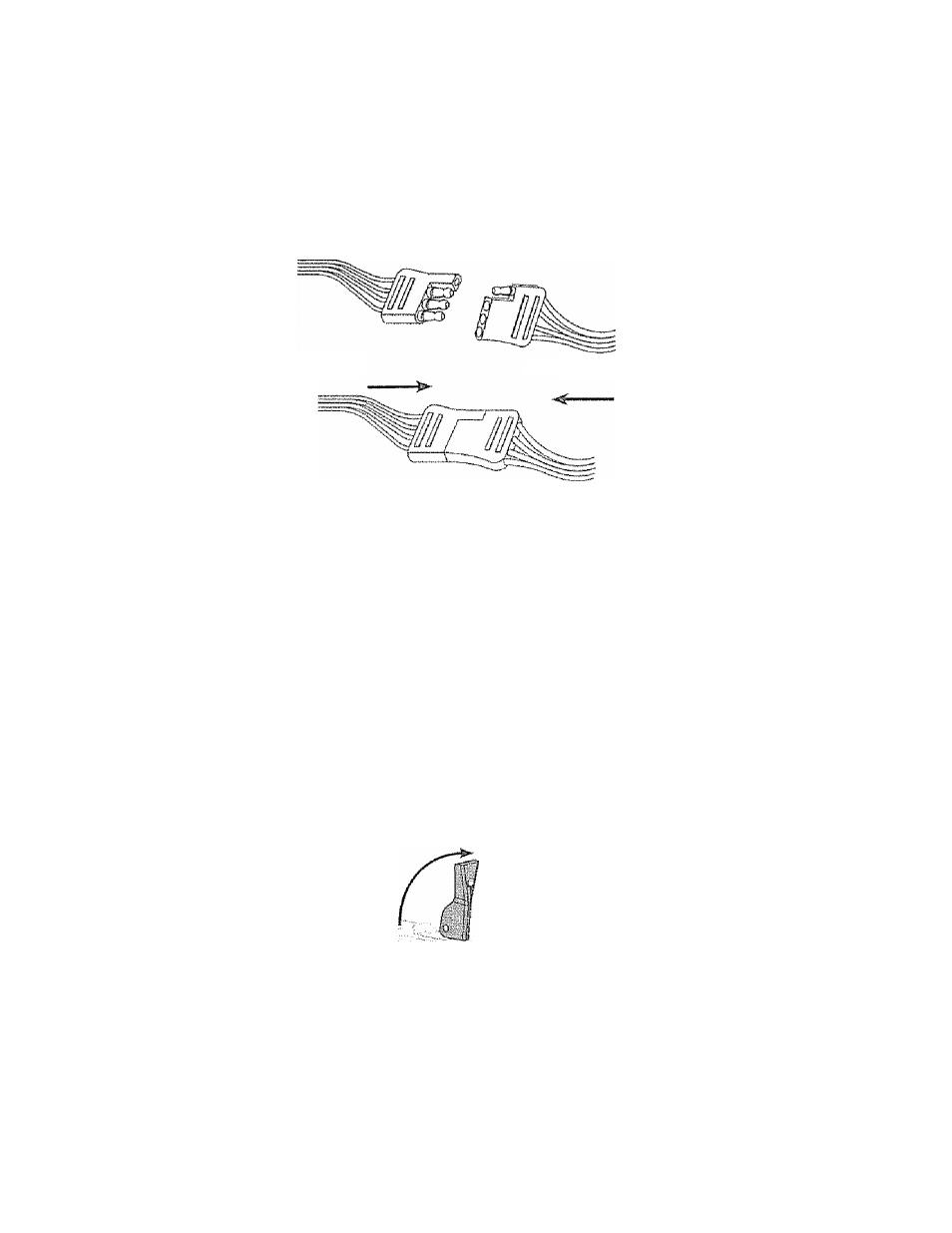

Noie: if your connector doe'; not look /ike the one pictured you need to purchme
an adapter.
From Trailer
From Tow Vehicle
From Trailer
From Tow Vehicle
A
WARNING
A
Check the connection periodicaliy to ensure tail and break lights
ftmetion prooerlv Faiitire lo fbllaw this wanting could result in
property damage, personal itijury and death
5.2,T6 Uncoupling the Trailer
Follow these steps to uncouple your ball hitch trailer from tlie tow vehicle:
1 Remove Uie load fiom the trailet
2 Block trailer tires to prevent the trailer from rolling
.3. Place wood or concrete blocks under the coupler for support.
4, Disconnect the electrical connector
5, Disconnect the safety chains from the low vehicle
6, Unlock the coupler and pull the safety latch upward to a vertical position aiid
lift tlie trailer off the ball
Unlock
