ASSEIVIBLY coni

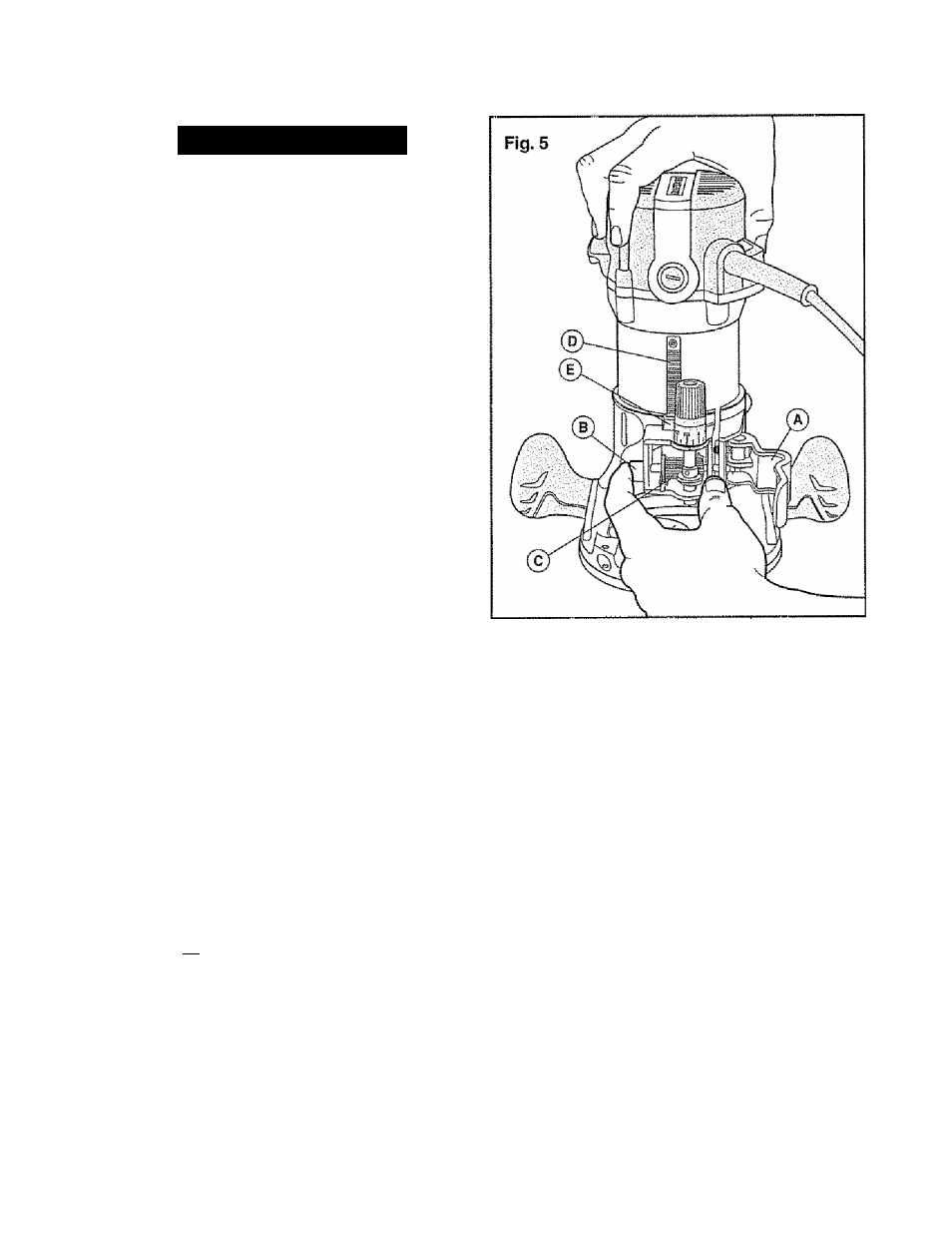

INSTALLING ROUTER MOTOR
IN BASE (Fig. 5}

1. Turn motor off and unplug

from power source.

2. Place fixed base on flat surface.

3. With back of fixed base facing you,

open motor clamp (A)

Press in

Coarse Adjustment

Knob (B)

to depart the

gears (C)

while you align the motor housing's

keystrip (D)

with the

keystrip-slot

(E)

in the fixed base.

5. When the motor's keystrip is

aligned and engaged into the
base's keystrip slot, slide the
motor down into the fixed base.

6. The motor will now slide up or

down to set coarse adjustments
when the coarse adjustment knob
is pressed in.

7. After ail adjustments are made,

close the motor clamp securely.

REMOVING MOTOR FROM BASE (see Fig. 5)

1. Turn motor off and unplug from power source.

2. Place router (fixed base/motor housing) on flat surface.

With back of router facing you, open the

motor damp (A)

Push in

coarse adjustment knob (B)

to release motor housing

“keystrip” (C)

from

gear in base, while you lift motor free of base.

5. Set motor upside down on its top cap with collet pointing up and remove cutter bit

Store motor and base in case when not being used.

/K WARNING:

always

remove cutter bits from collst/nut when the router

is not being used. Leaving bits installed could result in an accident causing
serious personal injury.
