2.2 LED Indicators
RX
TX
MSG
Phone
Service
Power
Power——
Power On LED
TX——
Network data being transmitted
RX——
Network data being received
Service——
Service connected (Remains illuminated when successfully logged-on to server)
Phone——phone
in operation
(phone in-used when light on means working under VoIP, when light off means
working under PSTN)
MSG——unanswered call LED (unanswered call appeared if light on)

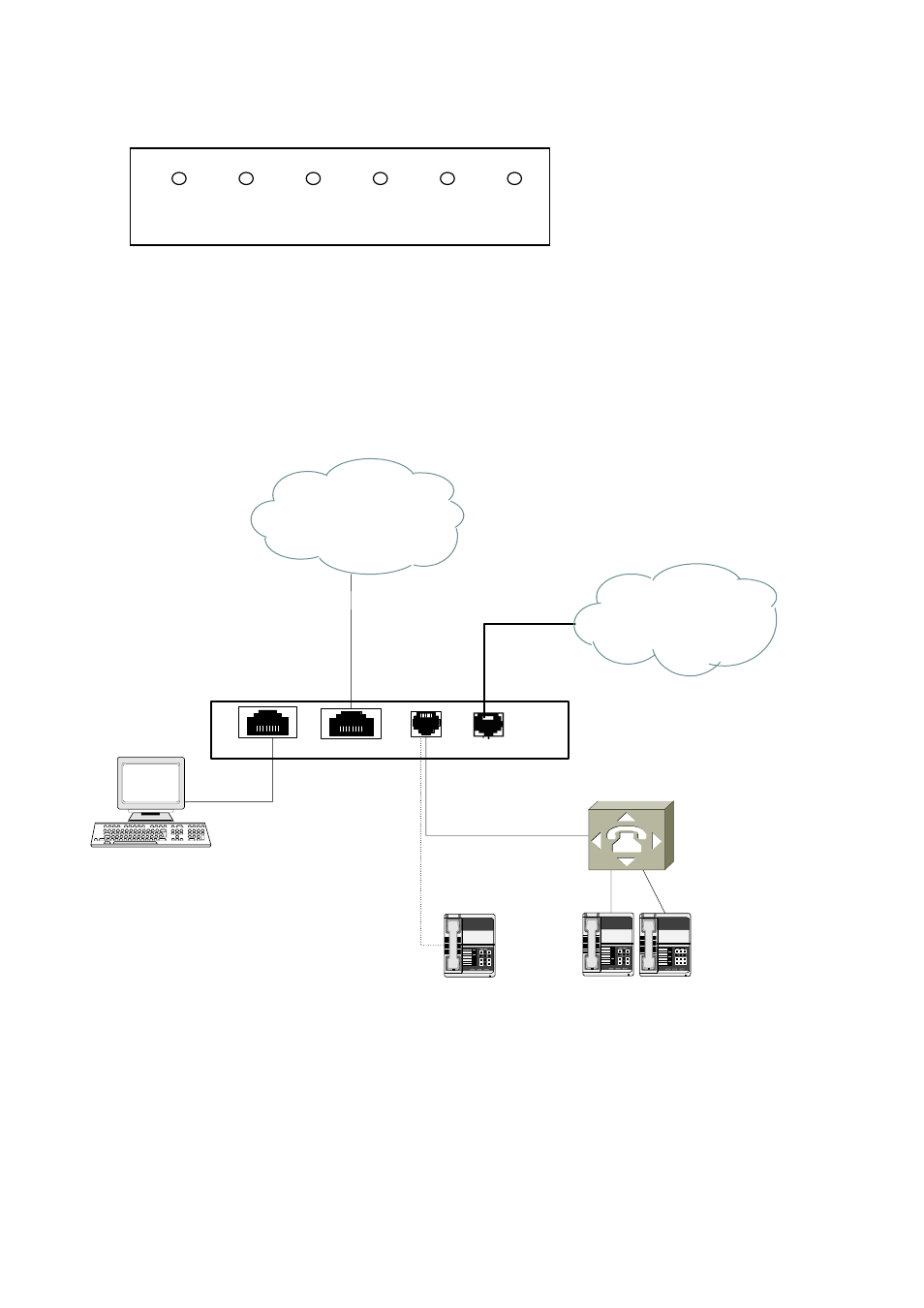

2.3 Application figure
1
2
3
4
5
6
7
8
9
*
8
#
1
2
3
4
5
6
7
8
9
*
8
#
1
2
3
4
5
6
7
8
9
*
8
#
Small PABX
Internet
ISP
PHONE
LAN
PC
LINE
Telecom
Instruction:KTA 1000,KTA1001 without LINE port,KTA1001,KTA1011 without PC port
3. Installation and Setting
3.1 Installation
(1)
Locate your KTA close to your Internet connection and a power outlet.
(2) Plug the RJ-45 connector of the Ethernet 10/100Base-T cable into the KTA’s side input port ④, and plug the
other side into a hub or switch, or wall/ground socket of the structuring cable.
4
