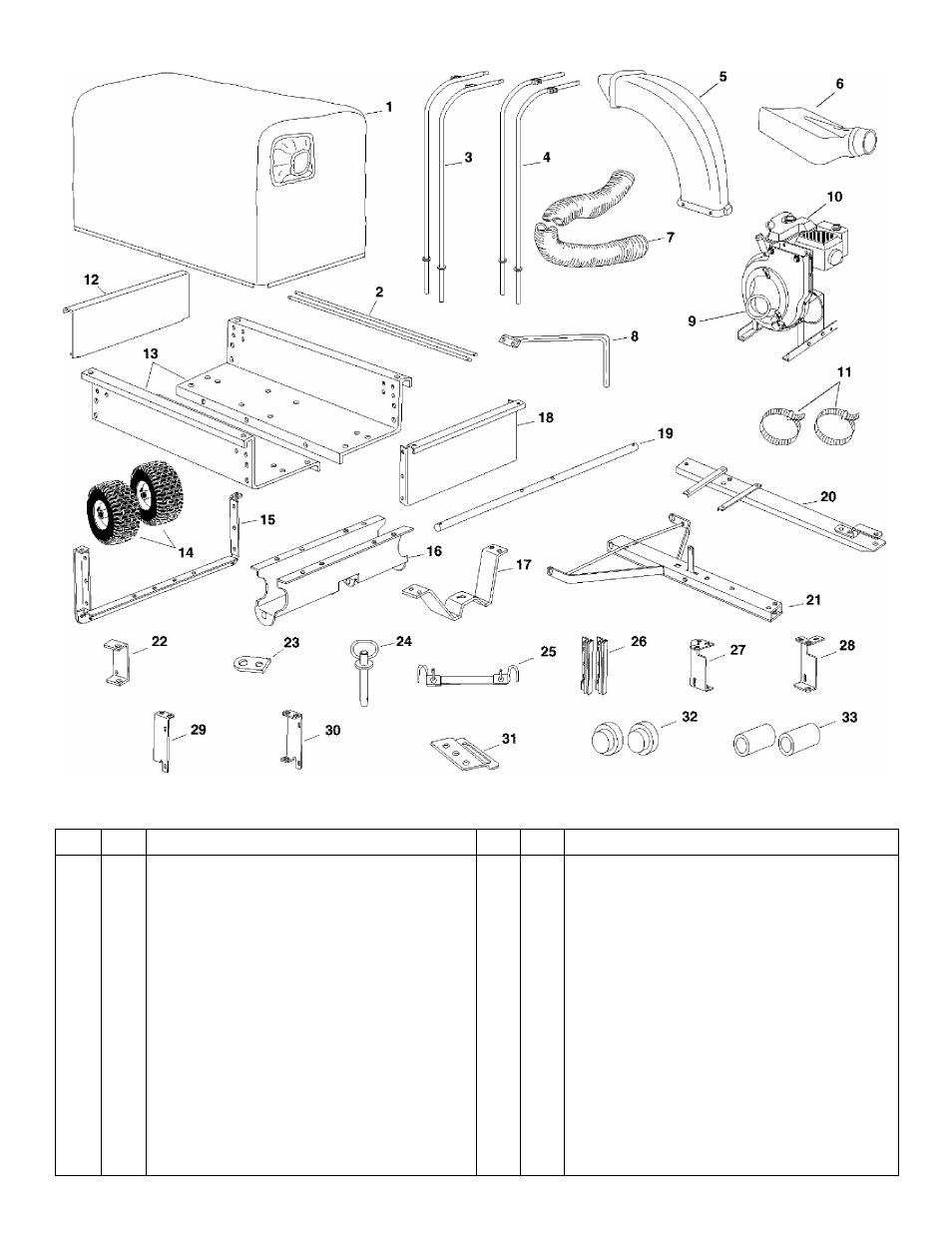

CARTON CONTENTS
Ref.
Qty.
Description
Ref.
Qty.
Description
1
1
Cover
17
1
Latch Stand Bracket
2
2
Top Connecting Tube
18
1
Front Pane!
3
2
Support Tube, R.H.
19
1
Axle
4
2
Support Tube, LH.
20
1
Front Tongue
5
1
Eibow (Discharge Chute)
21
1
Rear Tongue
6
2
Deck Adapter
22
1
Hose Hanger Bracket
7
1
Hose
23
1
Hitch Plate
8
1
Hose Hanger Rod Assembly
24
1
Hitch Pin
9
1
Hose Adapter (Nozzle)
25
1
Rubber Strap
10
1
Engine
26
2
Tailgate Guide
11
2
Hose Clamps
27
1
Front Tube Support Bracket, R.H.
12
1
Taiigate
28
1
Front Tube Support Bracket, L.H.
13
2
Cart Bodies
29
1
Rear Tube Support Bracket, L.H.
14
2
Wheels
30
1
Rear Tube Support Bracket, R.H.
15
1
Taiigate Reinforcement Bracket
31
1
Deck Adapter Bracket
16
1
Wheel Support
32
2
Hub Caps
33
2
Wheel Spacers
