Pull the cart body halves together.
Tighten the four truss head bolts.
Tighten the six hex bolts in the sides of the cart.
Tighten the three hex bolts in the bottom of the cart,
keeping the bottom aligned.

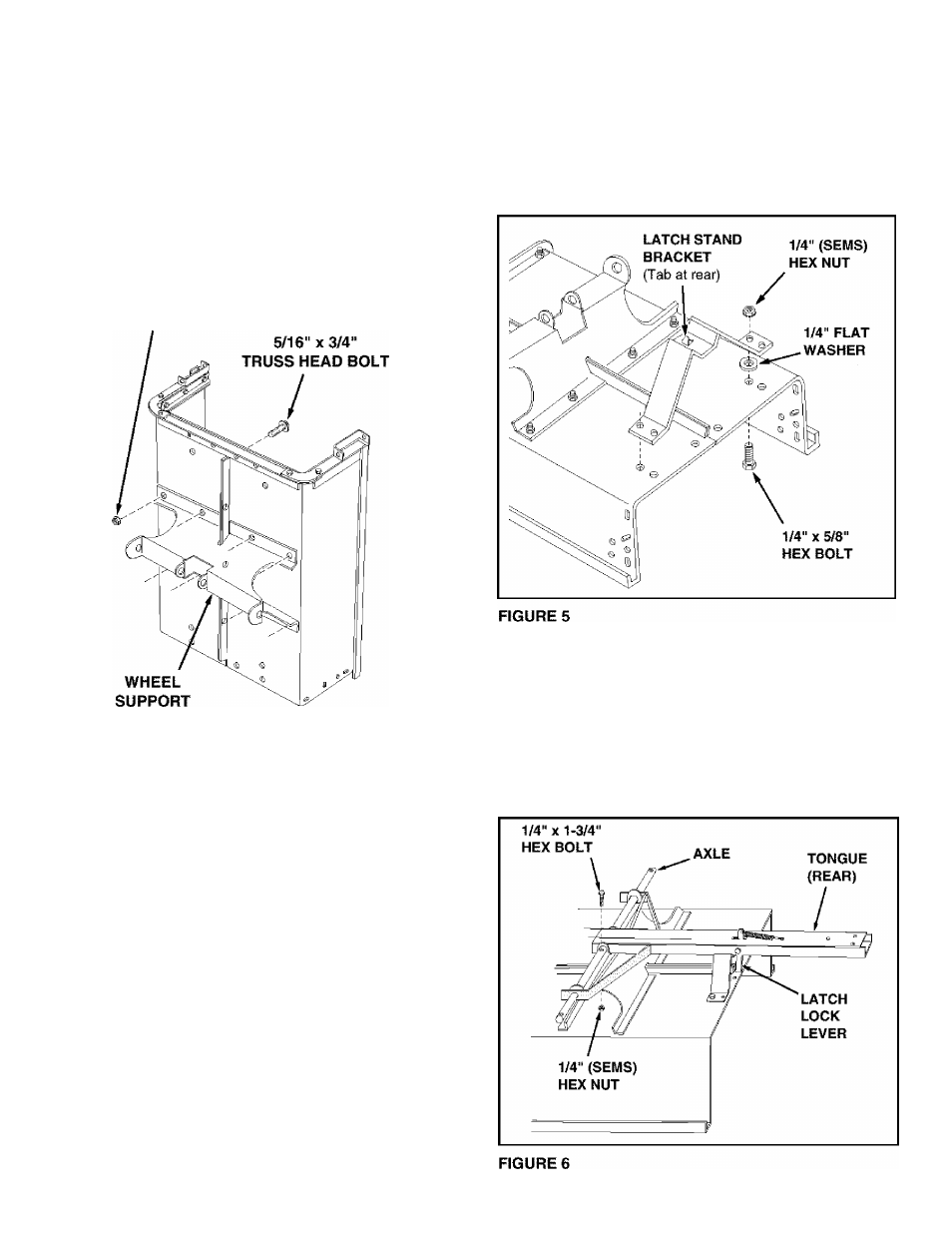

Assemble the wheel support to the bottom of the cart
using eight 5/16" x 3/4" truss head bolts and 5/16"
(SEMS) hex nuts as shown in figure 4. Heads of bolts
go on the inside of cart. Tighten.
5/16" (SEMS)
HEX NUT
Lay the cart down onto it's top flanges.
Align the latch stand bracket so that the tab is at the
rear. Fasten the bracket to the
rear set of holes at
the front of the cart, leaving the front holes empty for
now. Use two 1/4" x 5/8" hex bolts, 1/4" flat washers
and 1/4" (SEMS) hex nuts. Use the 1/4" flat washers
as shims between the bracket and the cart bed.
Make only finger tight at this time. See figure 5.
FIGURE 4
Place the rear tongue onto the wheel support and the
latch stand bracket. Assemble the axle through the
wheel support and the tongue. Fasten the axle to the
wheel support using two 1/4" x 1-3/4" Hex Bolts and
1/4" (SEMS) Hex Nuts. See Figure 6.
IMPORTANT: Make sure the tongue is securely locked
to the latch stand bracket by the latch lock lever.
10
