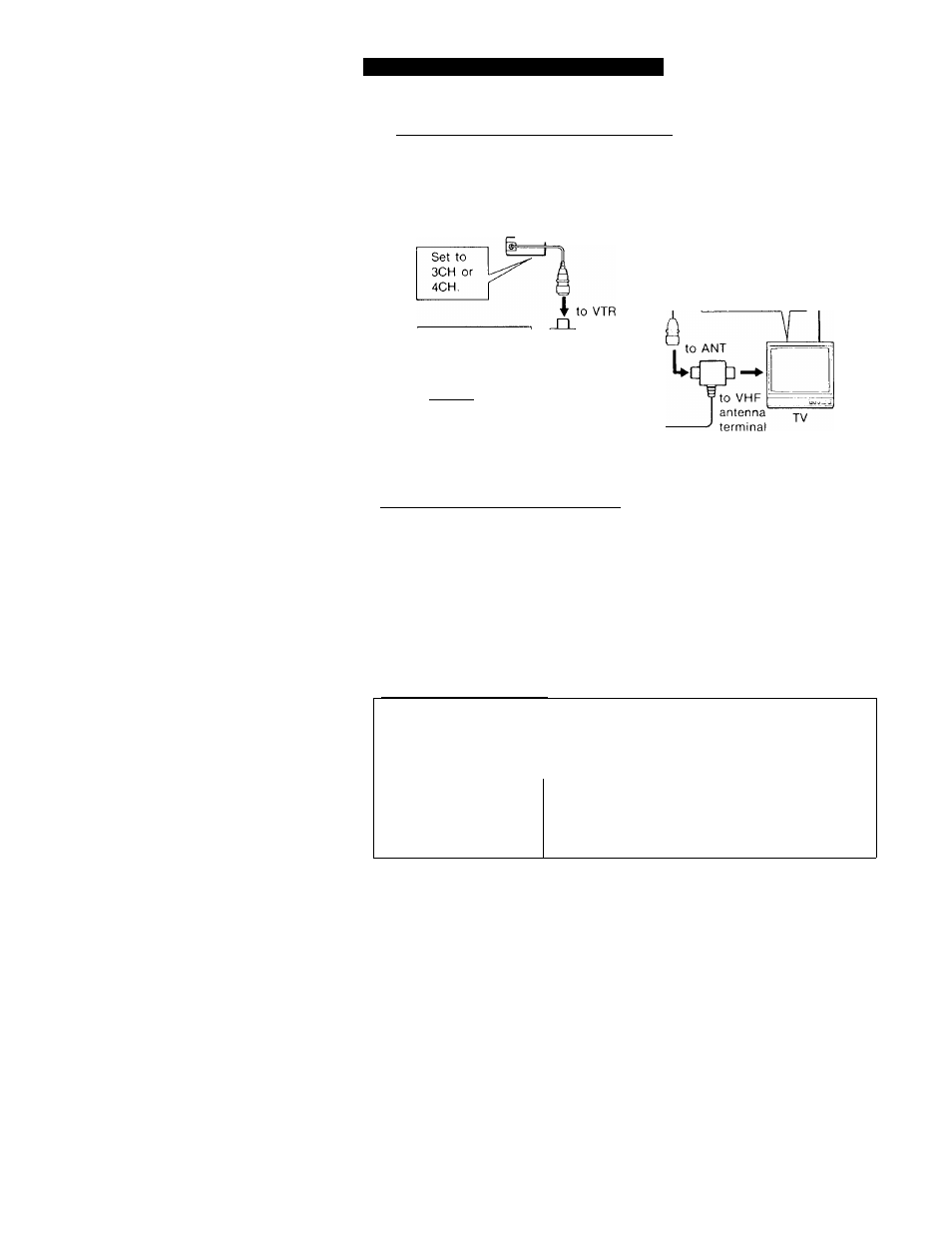

To Connect Another TV or Color Monitor
To Connect a TV with Only the Antenna Terminals
Use the optional RFU-89UCKA RFU kit.
GV-9
VHF antenna
VvA
UHF antenna
a i n
RFU adaptor
To view the
video picture,
select the
channel for the
VTR.
To view video
pictures:
set to VTR
To view the
TV programs;
set ANT______
b=i: Signal flow
Antenna
selector
supplied
to the
RFU-89UCKA.
Press LCD ON/OFF on the GV-9 so that the picture is muted.
About the optional RFU-89UCKA RFU kit
The RFU-89UCKA includes the following accessories.
— RFU adaptor (1)
— Antenna selector (1)
— Antenna selector adaptor (1)
Channel for VTR
To view the playback picture of this unit, set the antenna selector of the RFU kit to
3 or 4 channel whichever channel is not active in your area and select the same
channel on the connected TV.
To connect the RFU adaptor
to AUDIO OUT
if
RF OUT connector
--------------------------- aniQjQl^^^ to your TV/monitor
to VIDEO OUT
f /
If the VHF input terminal of your TV
/ is a 300-ohm twin-lead plug, use the
^ antenna selector adaptor supplied
with the RFU kit.
