Using with Battery Pack — NP-77 or NP-55
1

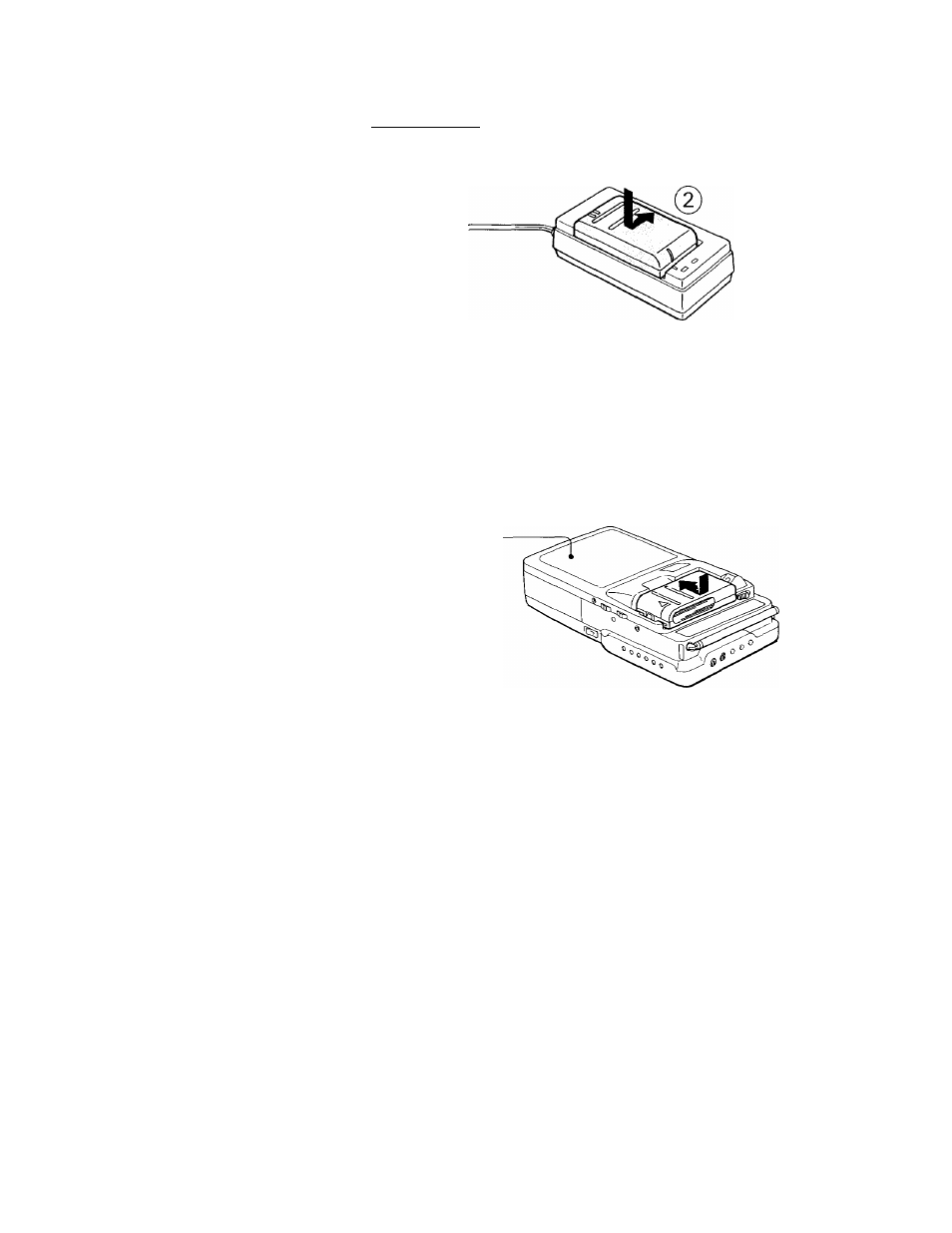

First, charge the battery pack.
Use the supplied AC-V30 AC power adaptor.
(D
©
©
Connect the AC-V30 to a wall outlet.
Install the battery pack.
Align the !► marks, then while pressing the battery pack, slide the battery
pack in the direction of the arrow.
The POWER lamp (green) and the CHARGE lamp (orange) on the AC-V30 will
light up. The charging will begin.
When the charging is completed, the CHARGE lamp goes out.
Unplug the AC power adaptor and the POWER lamp will go out.
Attach the battery pack to the video TV recorder.
Align the metal projection of the battery pack to the mounting surface of the
unit, and slide the battery pack.
Bottom
The charging time is about 1 hour for an NP-55 battery pack, or about 2 hours for
an NP-77.
When you attach two battery packs to the AC-V55 AC power adaptor, first the
charging of the battery 1 will be made, then the battery 2 will follow.
The unit cannot be operated with the AC power adaptor when it is used for
charging a battery pack, and the battery pack cannot be charged when the AC
power adaptor is used to operate the unit,
' An NP-77 or an NP-55 can also be charged with the BC-55 battery charger.
