Chapter 1:
Setting
Up
Connecting the Stereo
Inserting the Batteries
Setting the Clock

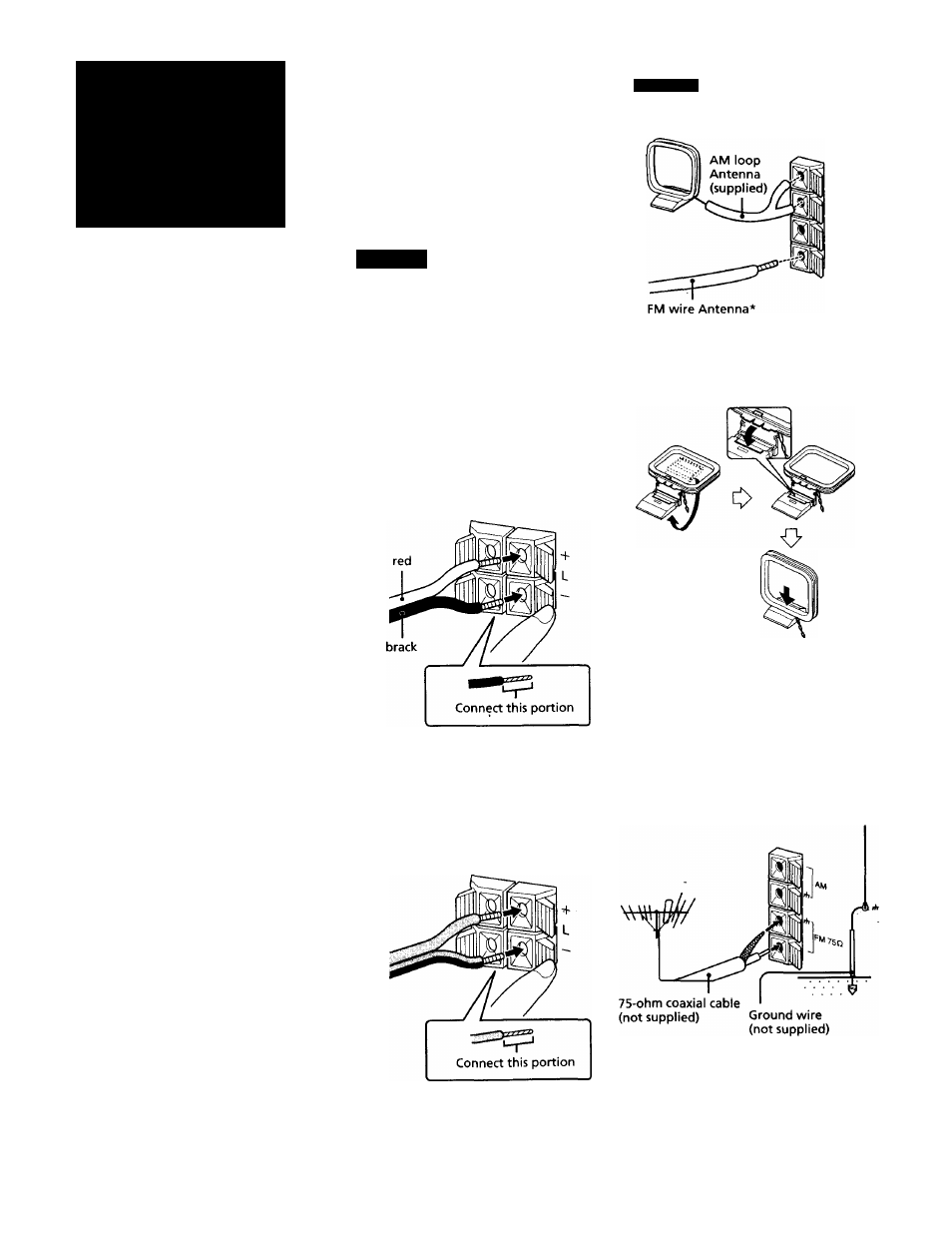

STEP 2
Connecting the Stereo
Antenna
Use the illustrations below to connect your
stereo.
If you want to connect any optional
components to the stereo, see "Connecting
Optional Equipment" in Chapter 6.
Connecting the
Connecting the
STEP 1
Speakers
Before connecting the speakers
Twist the speaker cable coating and pull it
from the end of the cable.
To connect the front speakers
Connect the right speaker to the SPEAKER
R connectors and the left speaker to the
SPEAKER L connectors with the red cord to
+ and the black cord to -.
To connect the surround speakers
Connect the right surround speaker to the
SURROUND SPEAKER R connectors and
the left surround speaker to the
SURROUND SPEAKER L connectors with
the gray cords to + and the gray with black
stripes cords to -.
A
m
PM7SO
(supplied)
*Note: Extend it horizontally
To set up the AM loop antenna
To improve the FM reception
Connect an outdoor EM antenna to the EM
75Ì1 terminal, using a 75-ohm coaxial cable.
Important
Ground the external antenna from ih
terminal against lightning with the screw
clamp. To prevent a gas explosion, do not
connect the ground wire to a gas pipe.
Screw clamp
^ I Chapter 1: Setting Up
