Sony STR-DE935 - Manual (Page 15)

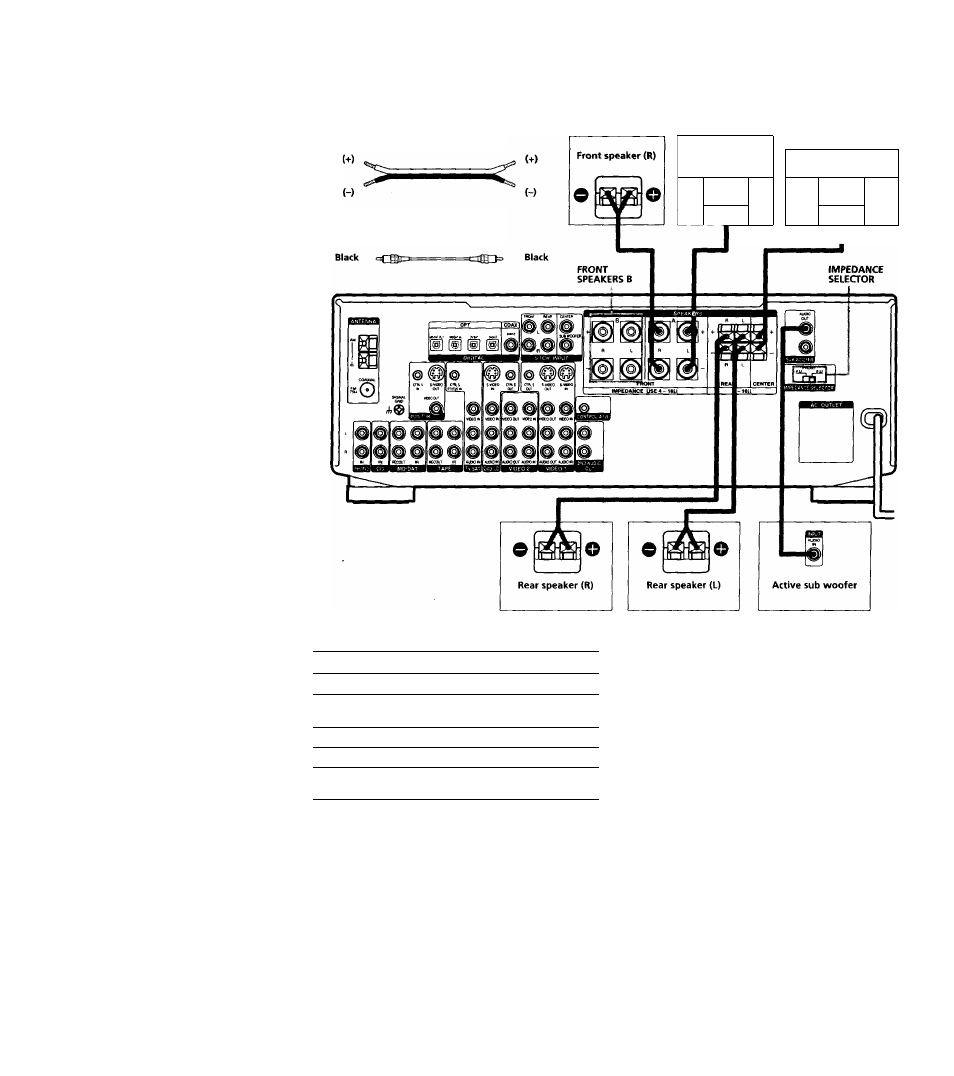

Speaker System Hookup
X
o
o
3*
IO
c
V
fi» 3
a
i/i
(fi
5
IO
c
V
?
(fi
l/l
■o
(fi
fi»
>r
?
I/I
*<
ft
(fi
3
Required xords
Speaker cords (not supplied)
One for each front, rear, and center speaker
Monaural audio cord (not supplied)
One for an active sub woofer
Front speaker (L)
e
friD im
o
Center speaker
o IS® o
Terminals for connecting the speakers
Connect the To the
Front speakers (8 or 4* ohm) SPEAKERS FRONT A terminals
Additional pair of front
speakers (8 or 4* ohm) SPEAKERS FRONT B terminals
Rear speakers (8 ohm) SPEAKERS REAR terminals
Center speaker (8 ohm) SPEAKERS CENTER terminals
Active sub woofer SUB WOOFER AUDIO OUT
jack*“^
See "Speaker impedance" on the next page.
*■ You can connect an active sub woofer to either of the two jacks. The
remaining jack can be used to connect a second active sub woofer.
Notes on speaker system hookup
• Twist the stripped ends of the speaker cords about 2/3
inch (10 mm). Be sure to match the speaker cord to the
appropriate terminal on the components: + to + and -
to If the cords are reversed, the sound will be
distorted and will lack bass.
• If you use front speakers with low maximum input
rating, adjust the volume carefully to avoid excessive
output on the speakers.
16
