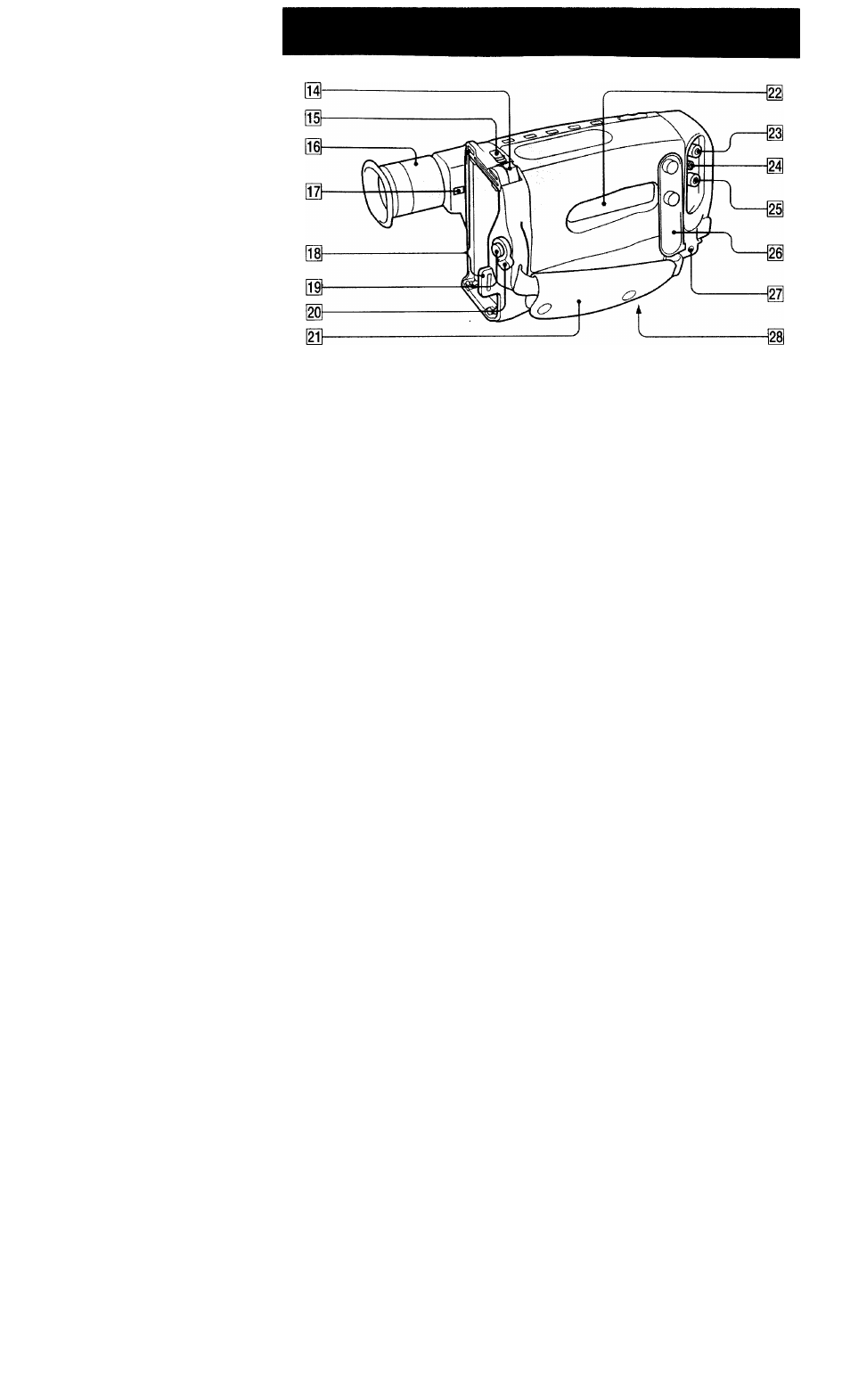

111 Power zoom lever (p. 14)
m EJECT knob (p. 10)
m Viewfinder adjustment ring (p. 12)
CCD-TR514/TR614/TR814 only
03 Eyecup release knob (p. 40)
CCD-TR514/TR614/TR814 only
01
Hooks for shoulder strap (p. 51)
01
START/STOP button (p. 11)
H STANDBY switch (p. 11)
Grip strap (p. 15)
ii Cassette compartment (p. 10)
M
VIDEO OUT jack (p. 17)
RFU DC OUT (RFU adaptor DC out) jack
m AUDIO OUT jack (p. 17)
m Jack cover
i3 MIC (microphone) jack
Connect an optional external microphone. This jack also accepts a "plug-in-power" microphone.
m Tripod receptacle (p. 15)
Attach a tripod (not supplied) here.
