Getting Started

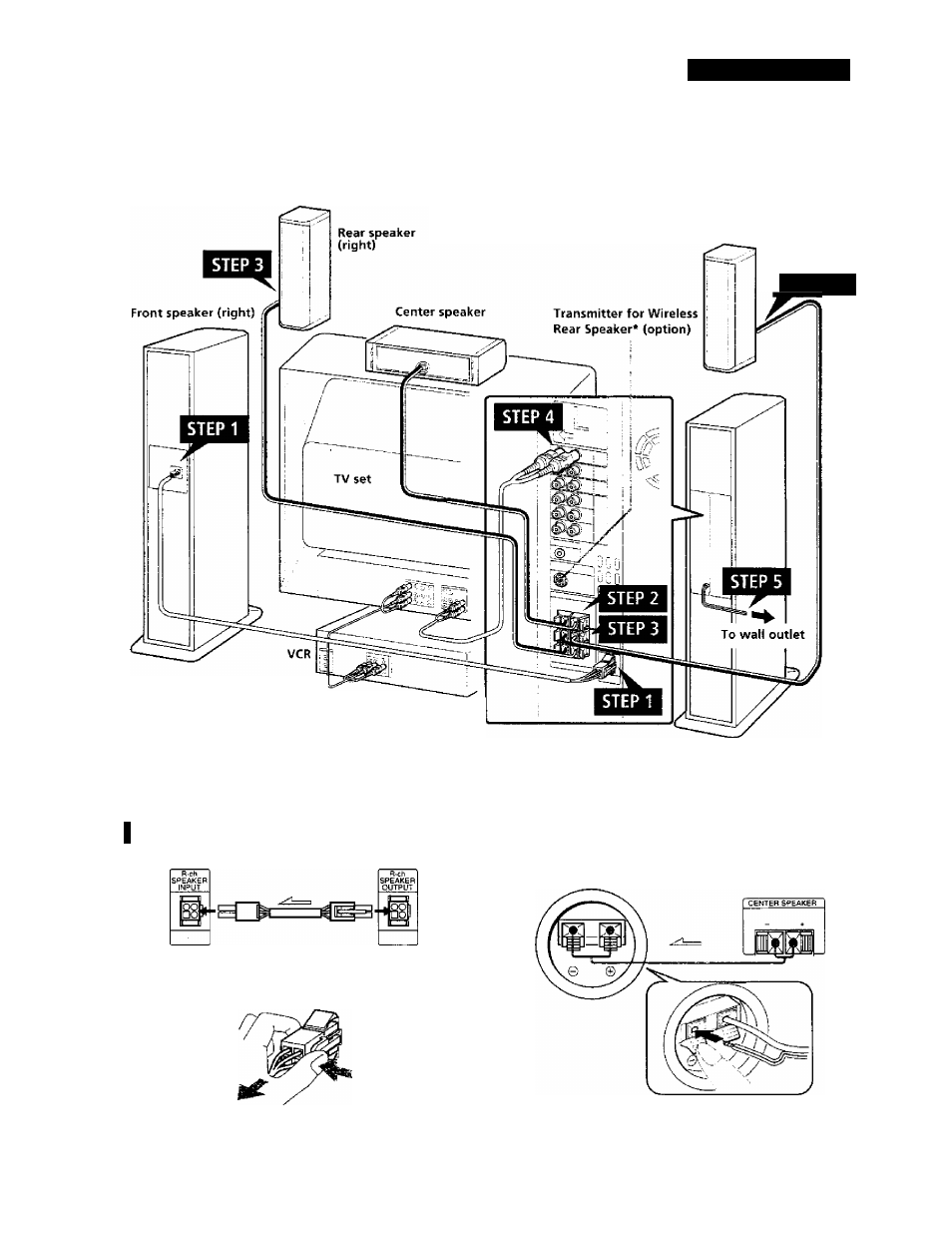

Hooking Up the Speaker System
This section describes how to connect the speaker system to your TV and VCR.
Rear speaker (left)
STEPS
*■ If you use an SA-IF70 Wireless
Speaker System (optional) for the rear speakers,
connect the transmitter supplied with the SA-IF70 system to
this connector. For details, refer to the Operating Instructions
provided with the SA-IFZO system.
The arrow indicates signal flow.
Front speaker (left)
STEP 2
STEP 1
Connecting the front speakers
Front speaker (right)
Front speaker (left)
Connecting the center speaker
Use the supplied
8
-foot
-2
V: inch (2.5 m) speaker cord
to connect the center speaker.
Insert the stripped wires into the speaker terminals.
Center speaker
Front speaker (left)
To discorinect a cord, hold down the release tab and
pull out the connector. Never pull the cord itself.
Be sure to connect matching speaker terminals (e.g., use the
solid-color wire to connect + to +, and use the striped wire to
connect - to -). If the connections are re\’ersed (+ to -), the
sound will lack bass.
(Continued)
