General setup information (continued)

Attaching a UHFA/HF band
mixer

When using both 75-ohm coaxial cable
and 300-t)hm twin lead cable for VHP/
UHF antenna, use the EAC-66 UHF/
VHF band separator/mixer (not

supplied) to connect the antenna to the

VCR.

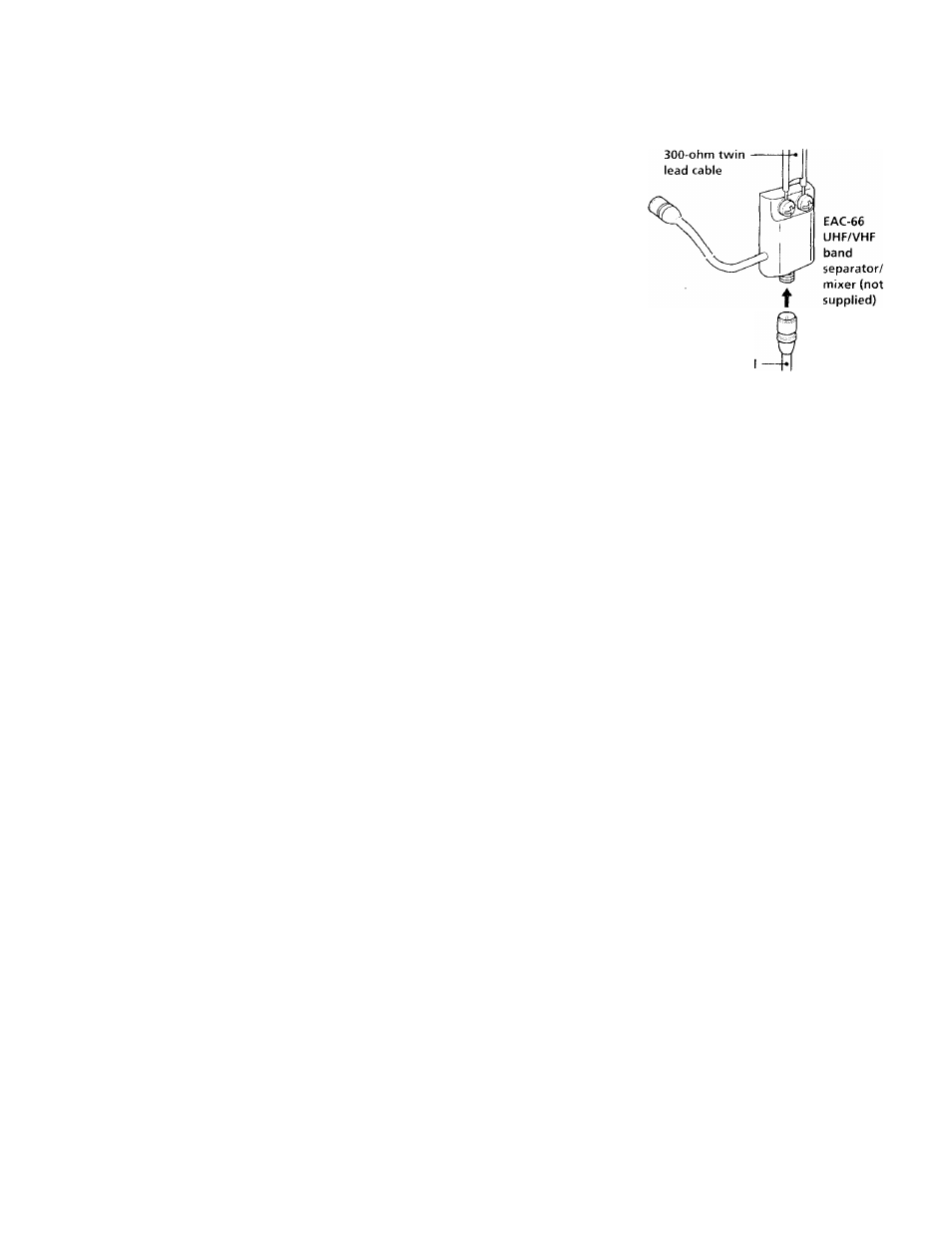

75-ohm coaxia

cable

Loosen the screws on the mixer.

Wind the twin leads around the screws on the mixer.

Retighten the screws.

Connect the 75-ohm coaxial cable to the mixer.

70 Additional Information
