Editing
Hooking up to a VCR or stereo system
How to hook up to record on this VCR
This VCR (Recorder)
TV
LINE-2 IN
Other VCR (Player)
LINE OUT

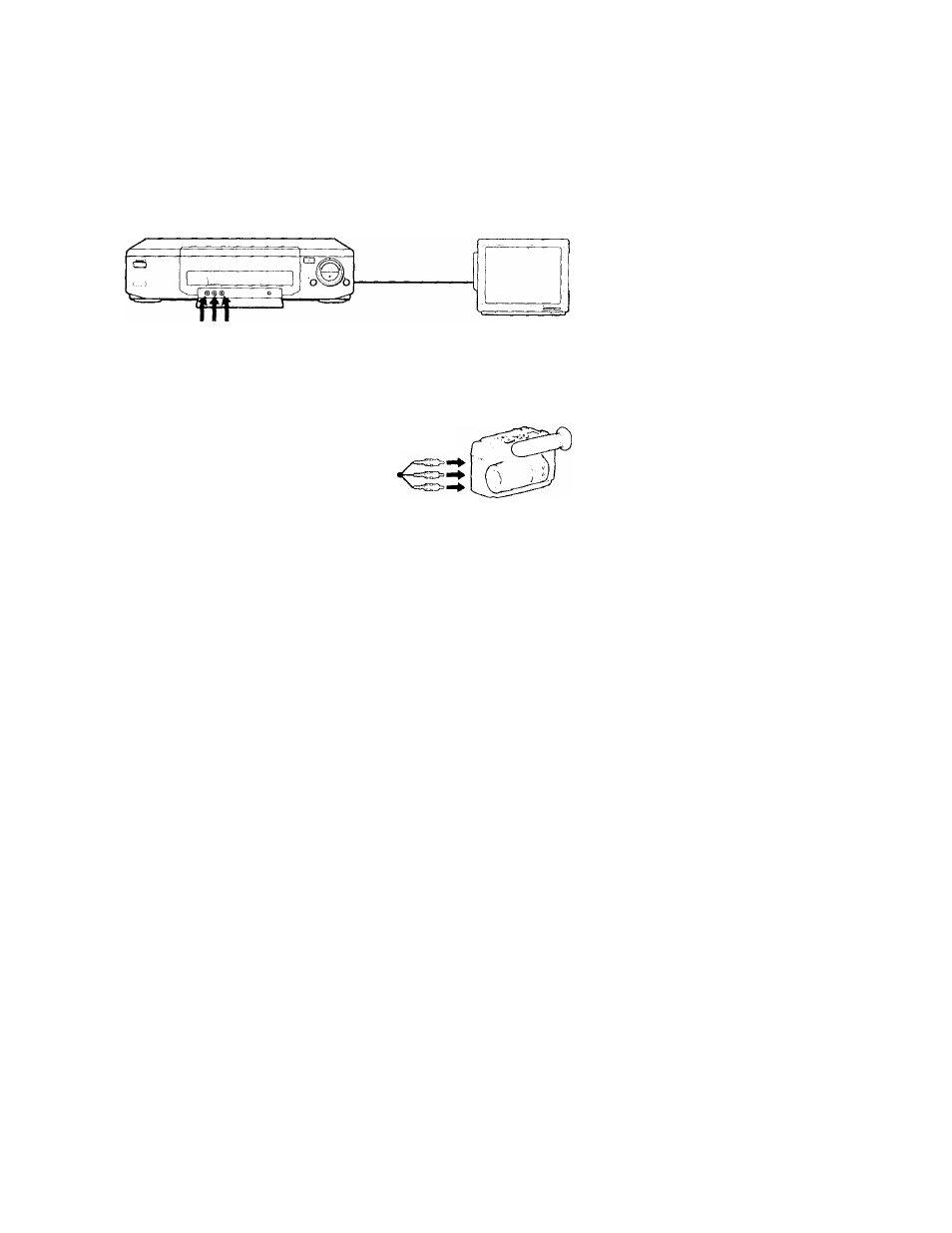

Signal flow
Audio/video
cable
(not supplied)
If the other VCR has a CONTROL S OUT jack for synchronized editing
Hook up to record on the other VCR, then connect the V'CRs \ia the
CONTROL S jacks. The CONTROL S connection lets you control (pause and
release pause) both VCRs from the recording VCR.
Notes
• Make sure you connect the plugs to jacks of the same color.
• If the other VCR is a monaural type, leave the red plugs unconnected.
• If you connected this VCR to both the LINE IN and LINE OUT jacks of the other
V'CR, select the input correctly to prevent a humming noise.
• If the CONTROl, S IN jack is used for S-Link™ (A/V bus control) \vith a TV, the
CONTROL S connection cannot be used for editing.
• You can also use the l,IN'H-l I,\ jacks instead.
How to hook up to a stereo system
Connect LINE-2 IN AUDIO on this VCR to the aucfio output jacks on the
stereo system, using the RK-C.a)0KS audio cable (not supplied).
Editing 67
