Additional Information
General setup information

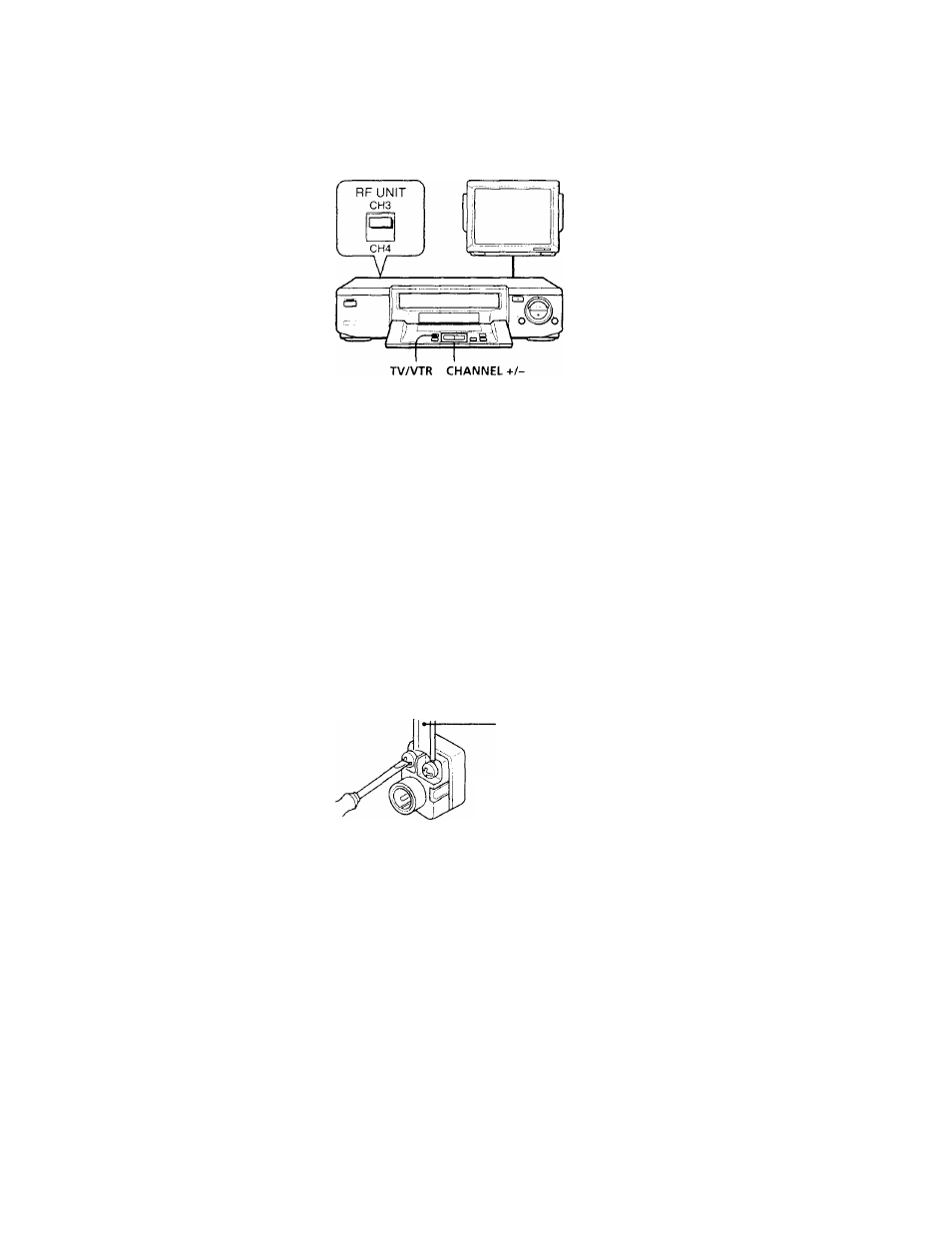

Setting the RF unit
When connecting the VCR to the TV
using only the antenna cable, you must
set the RF UNIT switch on the rear of the
VCR so that the TV can receive the
correct signal from the VCR.
TV
I Set the RF UNIT switch on the rear of the VCR to CH3 or CH4,
whichever channel is not used in vour area. If both are used, set the
switch to either channel.
2 Press POWER to turn on the VCR.
3 Press TV/VTR to turn on the VTR indicator in the VCR's display
window.
4 Press CHANNEL +/- to display a channel number in the display
window. Select an active channel number in your area.
5 Turn on your TV and set it to the channel you selected in step 1
(channel 3 or 4).
The selected TV channel broadcast appears on the TV screen. If the
channels change when you press CHANNEL +/- on the VTR, you have
made the correct setting.
Whenever you use the VCR, set the TV to the channel selected in step 1.
Attaching the external
antenna connector
When using a 300-ohm twin lead cable
for VHF/UHF antenna, use the EAC-32
antenna connector (not supplied) to
connect the antenna to the VCR.
300-ohm twin
lead cable
EAC-32 Antenna
connector (not
supplied)
1 Loosen the screws on the antenna connector.
2 Wind the twin leads around the screws on the antenna connector.
3 Retighten the screws.
continued
