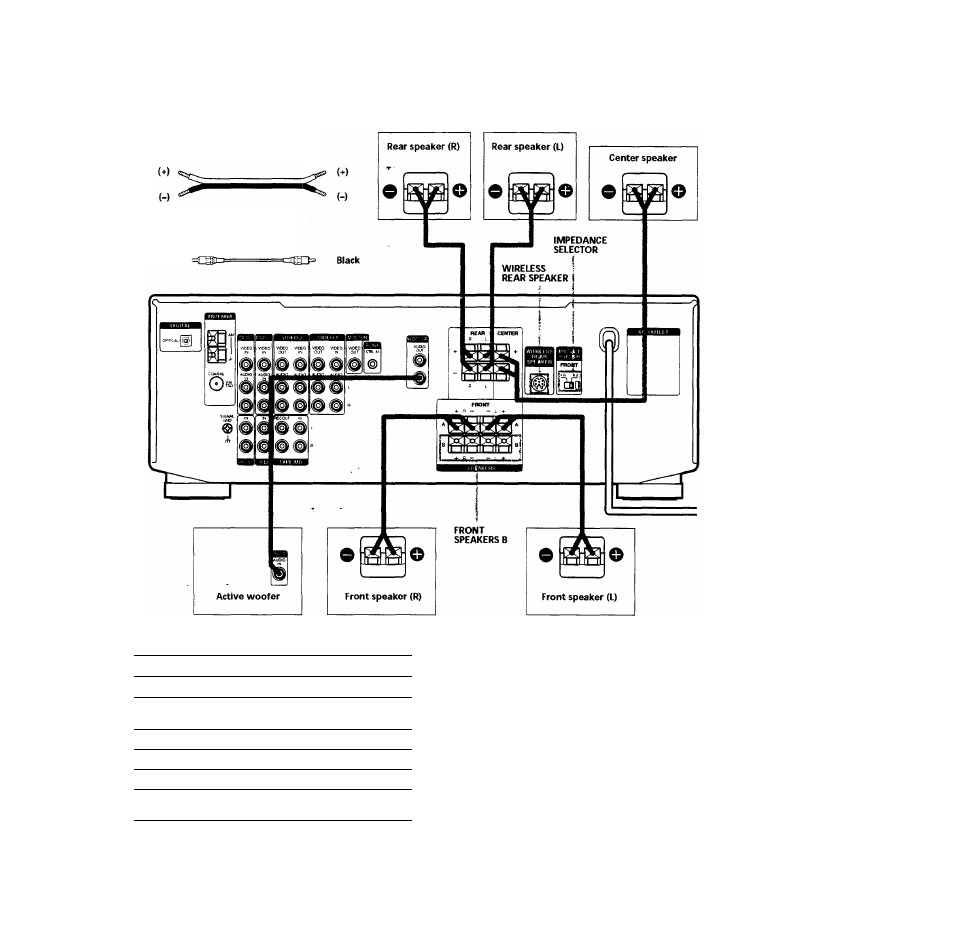

Speaker System Hookup
Required cords
Speaker cords (not supplied)
One for each front, rear, and center speaker
Monaural audio cord (not supplied)
One for an active woofer
Black
Terminals for connecting Utespeakca^
Connect the To the
Front speakers (8 or 4* ohm) SPEAKERS FRONT A terminals
Additional pair of front
speakers (8 or 4* ohm) SPEAKERS FRONT B terminals
Rear speakers (8 ohm) SPEAKERS REAR terminals
Center speaker (8 ohm) SPEAKERS CENTTR terminals
Active woofer WOOFER AUDIO OUT jack**
Wireless rear speaker
transmitter
WIRELESS REAR SPEAKER jack
See “Speaker impedance ” on the next page.
' You can connect an active woofer to either of the two Jacks. The
remaining Jack can be used to connect a second active woofer.
Ndtes on s|ieaker system hookup
’ Twist the stripped ends of the speaker cords about
2/3 inch (15 mm). Be sure to match the speaker cord to
the appropriate terminal on the components: + to + and
- to If the cords are reversed, the sound will be
distorted and will lack bass.
> If you use front speakers with low maximum input
rating, adjust the volume carefully to avoid excessive
output on the speakers.
> The WIRELESS REAR SPEAKER jack is for use with
Sony wireless rear speaker systems only, do not connect
any other speaker systems or components to this jack.
