DVD Connections
Connecting a DVD Player

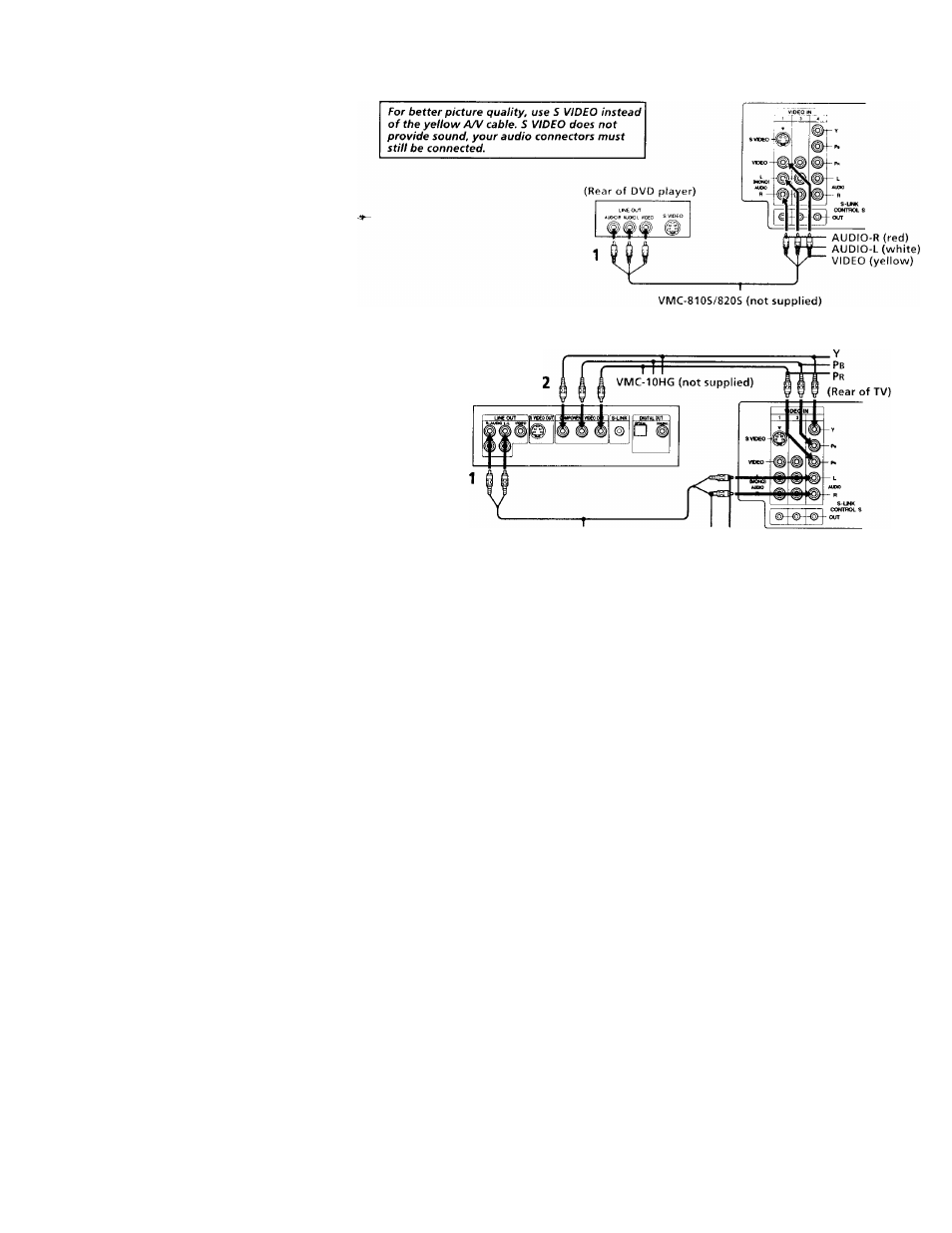

Using A/V connectors, connect VIDEO IN on
your TV to LINE OUT on your DVD Player.
Connecting a DVD Player with
component video output
connectors
This connection option offers the highest
quality DVD picture.
1
Using AUDIO connectors, connect AUDIO
R and L of the LINE OUT on your DVD
Player to AUDIO R and L on the VIDEO IN
4 panel at the rear of your TV.
2
Using three VIDEO connectors, connect Y,
P
b
, and P
r
on the COMPONENT VIDEO
OUT on your DVD Player to Y, P
b
, and P
r
on the VIDEO IN 4 panel at the rear of
your TV.
Note
• Some DVD Player terminals may be
labeled Y, C
b
, and C
r
, or Y, B-Y, and R-Y.
If so, connect them by matching the colors.
8
Disconnect all power sources before making any connection
iK.-.ir of TV,
DVD
RK-74A (not supplied)
AUDIO-R AUDIO-L
(red) (white)
