Index to parts and controls

Refer to the pages indicated in parentheses ( ) for details.

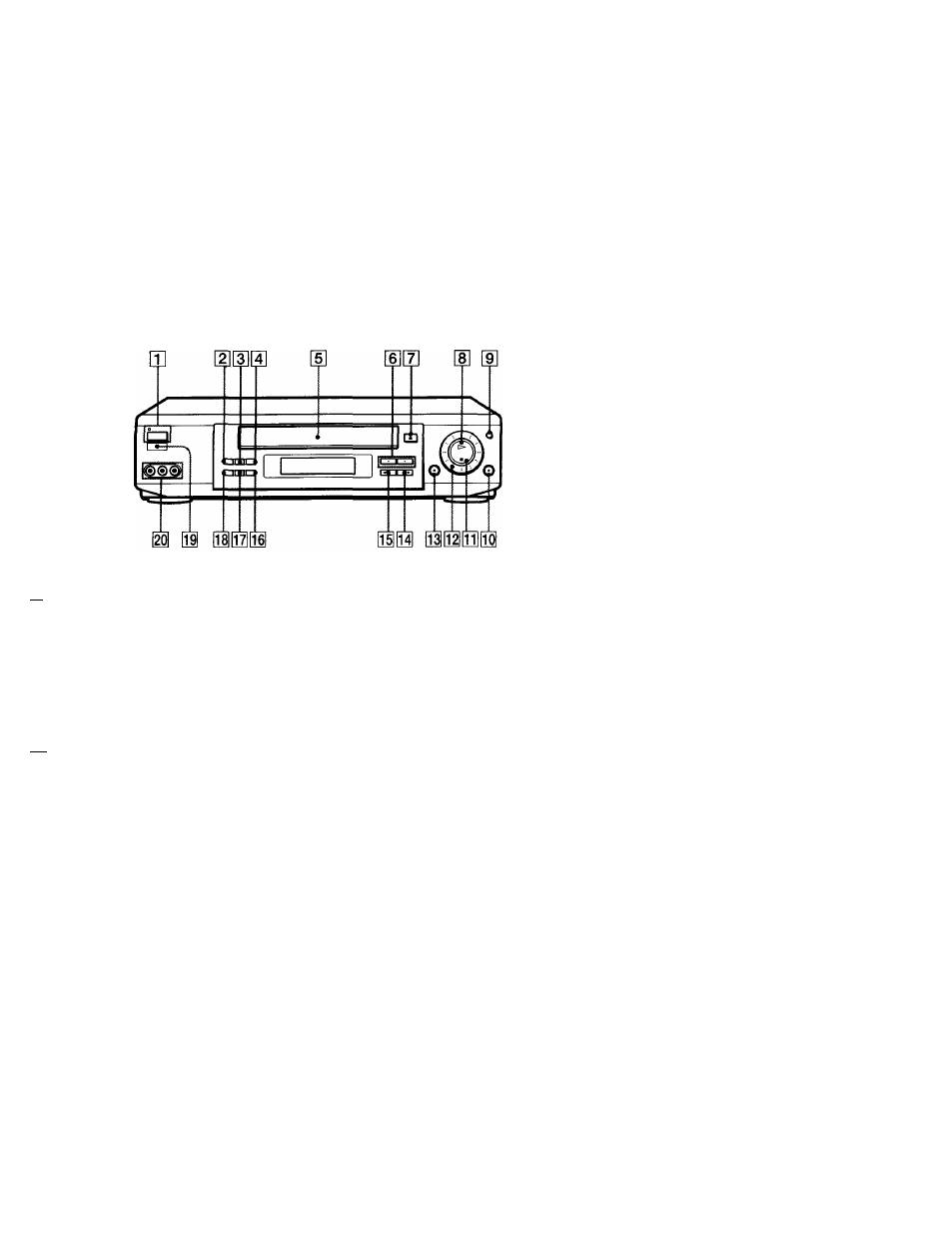

Front panel

m POWER switch / indicator (61)

SP (Standard Play) / EP (Extra Play)
button (56, 61)

¡3]

EASY SET UP button (12,15,18, 21,

25, 28)

TV/VIDEO button (57)

fSl Tape compartment

[

]

CHANNEL/TRACKING+/-

buttons (56, 65, 80)

[7] REJECT button (54)

[S O PLAY button (53, 66)

JOG button (67)

59 ® REC (record) button (56, 84)

55] ■ STOP button (54)

511 shuttle ring (57, 67)

51 II PAUSE button (54)

FF (fast forward) button (54, 66)

REW (rewind) button (54, 66)

51 EDIT button (84)

5Zl

COMMAND MODE switch (6)

51 INPUT SELECT button (56, 58)

51 Remote sensor (5)

H LINE-2 IN VIDEO / AUDIO L / R

jacks (83)
