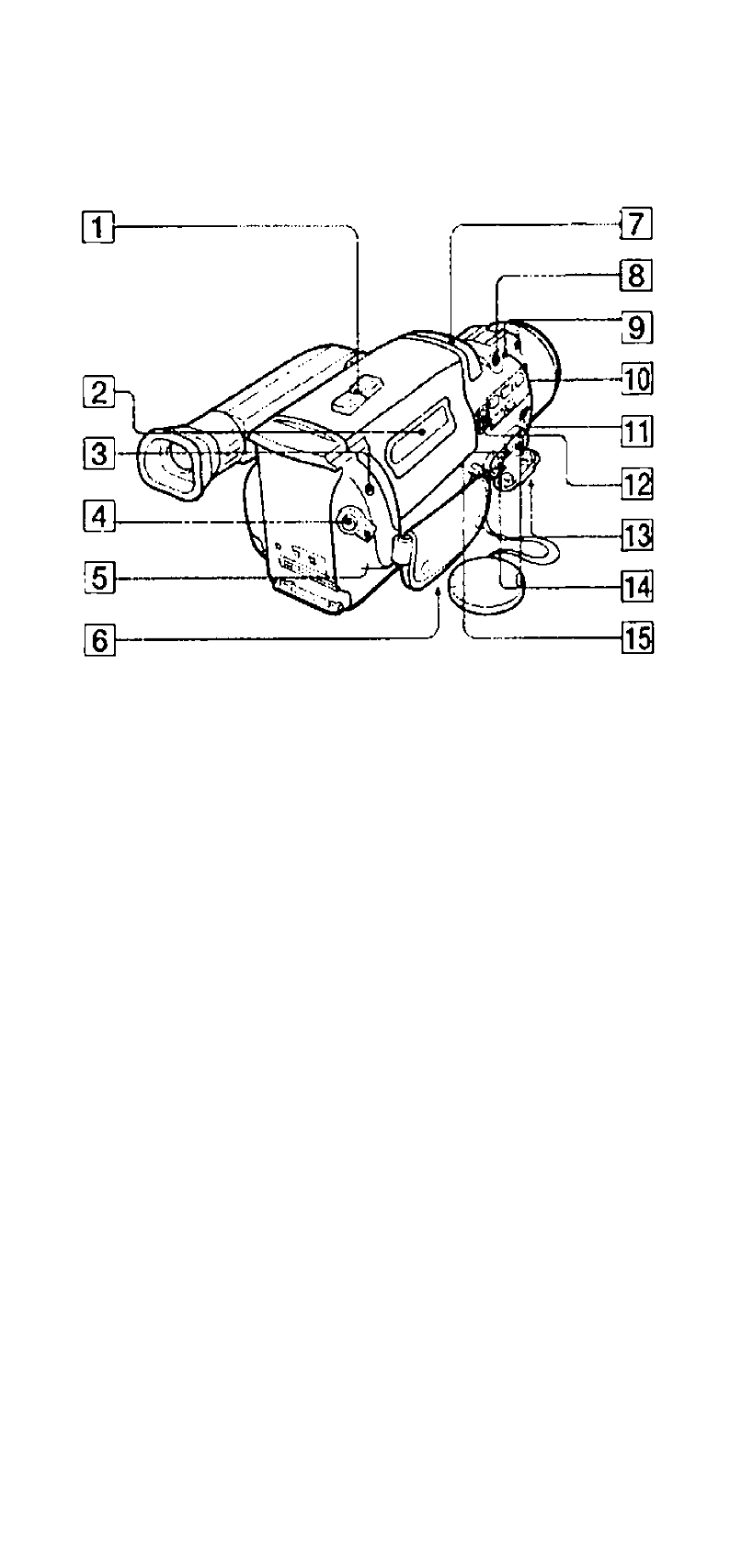

Identifying the Parts
ffl
m
s
m
[H
m
m
5^
511
m
51
53
Power zoom button
Cassette compartment
LANC C control jack
C stands tor Local Application Control Bus System.
The C control jack is used for controlling the tape
transport of video equipment and f>enpheral&
connected to it. Tliis jack has the same function as the
jack uidiorted as CONTROL L or REMOTE.
START /STOP button
STANDBY switch
Lithium battery holder t21)
Built-in microphone
MIC jack (PLUG LN IHDWER)
Connect an optional externa 1 microphone Tins yick
also accepts a "plug-in-power" microphone.
Remote sensor
Aim the Remote Commander here for remote control.
Tape transport buttons
Remote Commander switch
Eject (cassette eject) button
Hooks for shoulder strap
Audio / Video output jacks
RFU DC OUT (RFU adaptor DC output) jack
To View the recorded picture on the TW that has onlv an
antenmi input, connect the RFU adaptor here.
