Hooking Up the System
Notes on Connections
At first, this section describes about the connection with the other equipments, the antenna connection,
speaker connection and then the AC power connection.
• Do not connect the power cord to an AC outlet nor press the POWER switch before accomplishing all
other connections.
• The cable connectors should be fully inserted into the jacks. Loose connection may cause hum and
noise.
• Jacks and plugs of the connecting cord are color-coded as follows:
Red jacks and plugs: For the right channel of audio signals
White jacks and plugs: For the left channel of audio signals
Yellow jacks and plugs: For video signals

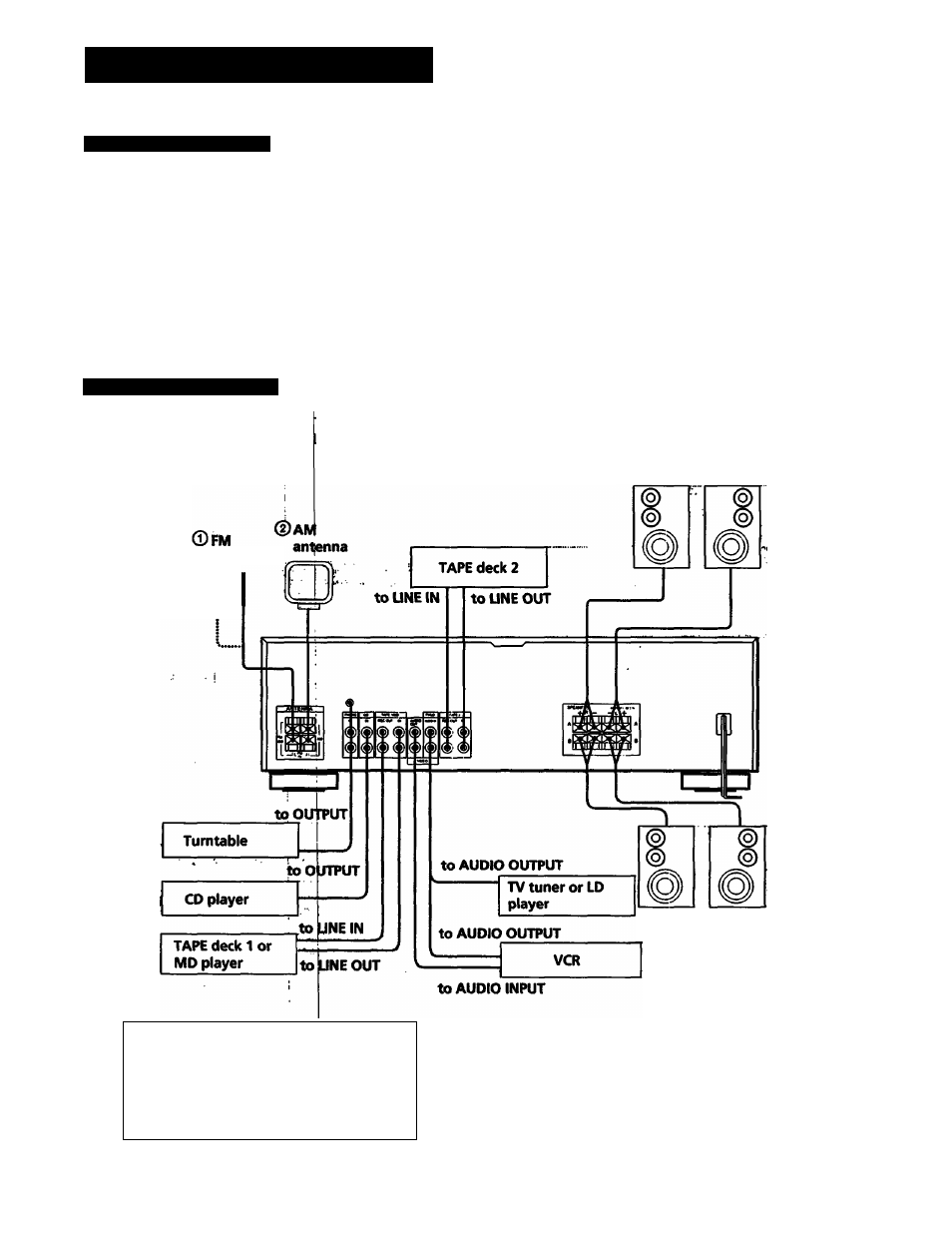

Connecting Equipment
The numbers correspond to the fb lowing details on page 6 and 7.
antenna
(D Front speaker
system (A speakers)
R
L
R
L
Front speaker
systinn (B speakers)
Receiver
Other equipment
White
White
L
,J;>-
@ L
R
^
@ R
Red
Red
Note
When using the LD player or VTR connected to the TV/LD
inputs, be sure to connect* the video output jack of these
equipments to the VIDEO or VIDEO 1 input jack of TV.
(To remotely control these equipments correctly.)
