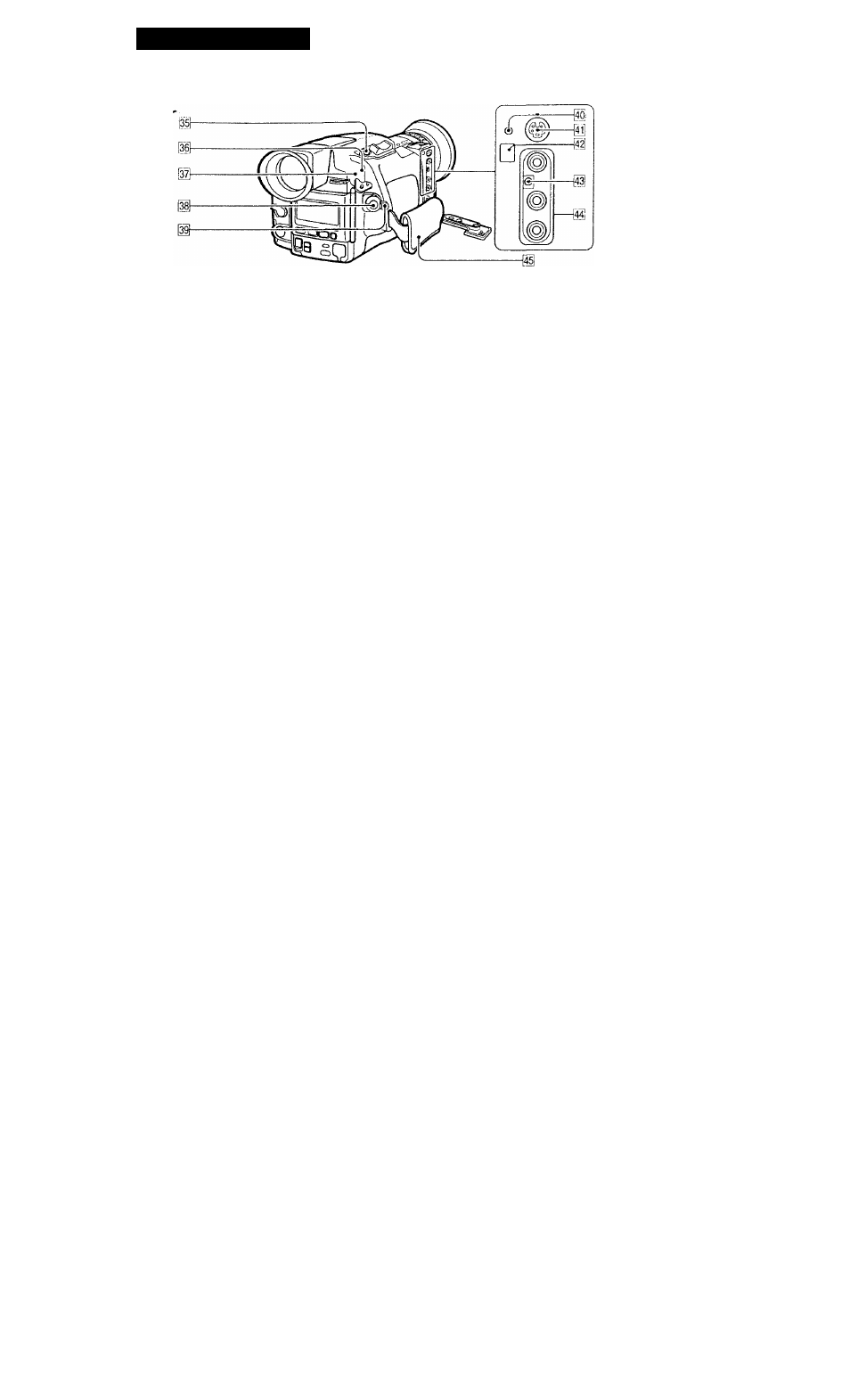

Identifying the Parts

i37|

43|

PHOTO button (p. 28)

CLANC control jack
C stands for Local Application Control Bus System. The C control jack is used for controlling the
tape transport of video equipment and peripherals connected to it. This jack has the same function
as the jack indicated as CONTROL L or RE.VIOTH.

0 (headphones) jack (p. 17)

START/STOP button (p. 11)

Standby selector (p. 11, 28)

MIC (PLUG IN POWER) jack

Connect an external microphone (not supplied). This jack also accepts a "plug-in-power"

microphone.

S VIDEO output jack (p. 16, 44)

DC IN jack (p. 20)

RFU DC OUT jack

Audio/Video output jacks (p. 16, 44)

Grip strap (p. 14)
