Getting Started

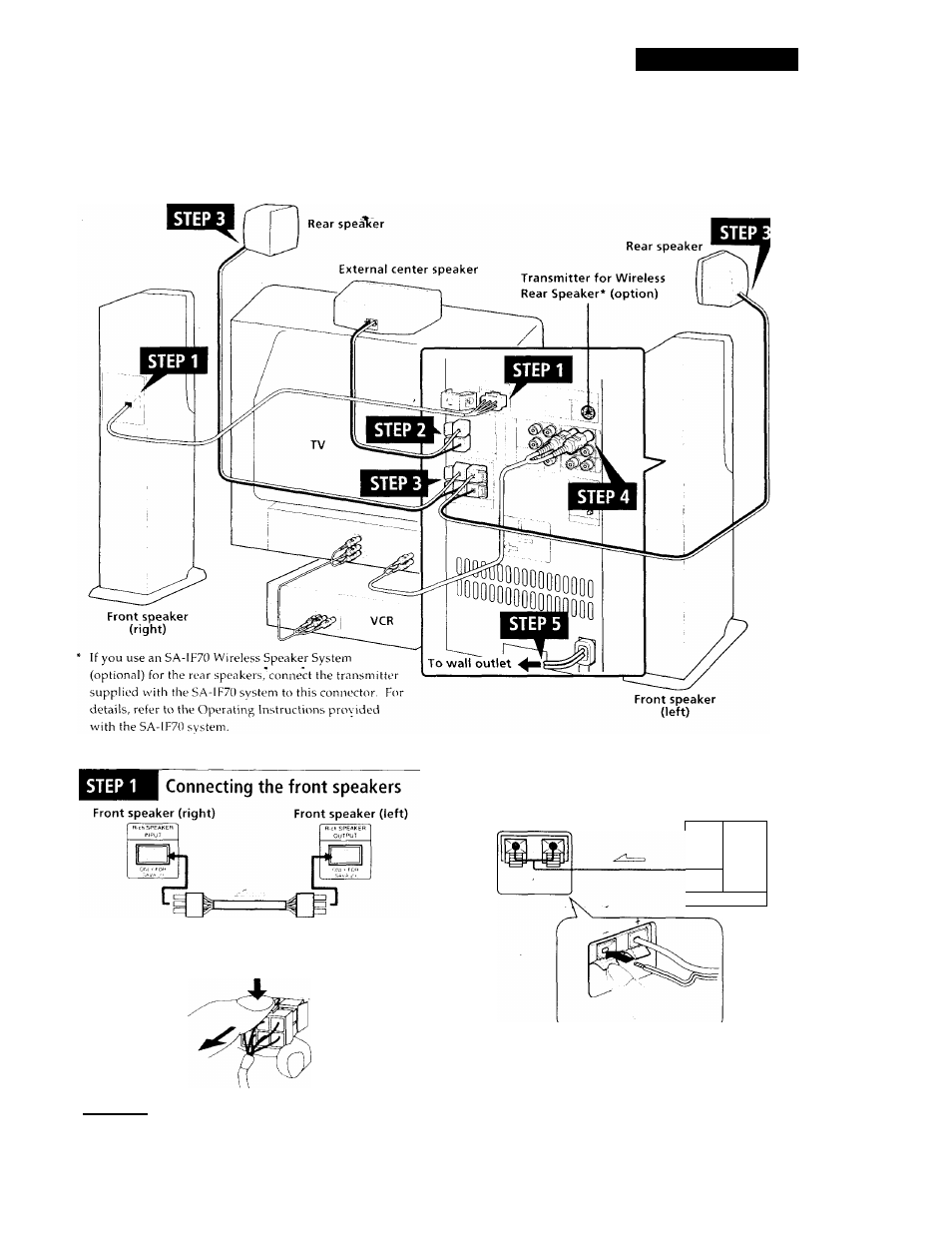

Speaker System Hookups
This section dc'scnlx'S how tc' connect the speaker s\ stem to \ oui' TV nnd V'CR.
The arrow indicates signal flow'.
Insert the stripped wires into the speaker
terminals.
External center speaker
Front speaker (left)
To disconnect the cord, pull the connectrir out while
pressing the release tab. Newer pull the cord itself.
'i*
IMPEDANCE
USE 8-1611
EXTERNAL CENTER SPEAKER
STEP 2
Connecting the external center
speaker
Us(.‘ tlu' slippllrki spcNlkt'l' Corel i2.^ ni) to konni'Ct the
t'xlrrnal crnloi' spoakt'i .
Be sure to connect matching speaker terminals {e.g., use
the solid-color wire to connect + to +, and use the
striped vN'ire to connect - to -). If the connections are
rev ersed (+ to • ), the sound will lack bass.
(Continued)
